1-Boc Piperazine: A Critical Intermediate in Medicinal Chemistry and Drug Development

Overview

1-Boc Piperazine (tert-Butyl 4-piperazinecarboxylate) is an essential protected derivative of piperazine, commonly used in pharmaceutical R&D, combinatorial chemistry, and intermediate synthesis. Its primary value lies in its selectively protected nitrogen atom, which makes it an ideal substrate for further functionalization without affecting the entire piperazine ring.

Chemical and Physical Properties

Chemical Name: 1-(tert-Butoxycarbonyl)piperazine

Synonyms: Boc-piperazine, tert-butyl piperazine-1-carboxylate

Molecular Formula: C9H18N2O2

Molecular Weight: 186.25 g/mol

CAS Number: 57260-71-6

Appearance: White to pale yellow crystalline powder

Boiling Point: Approx. 335°C (decomposes)

Solubility: Freely soluble in common organic solvents like dichloromethane (DCM), acetonitrile, and methanol

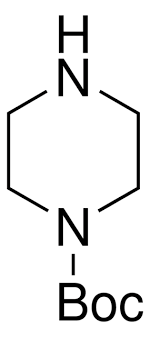

Its structure contains a six-membered piperazine ring substituted with a Boc protecting group on one nitrogen. This feature ensures regioselective reactivity, ideal for stepwise synthesis in both industrial and academic labs.

Synthesis of 1-Boc Piperazine

1-Boc Piperazine is synthesized by reacting piperazine with di-tert-butyl dicarbonate (Boc₂O) under basic conditions (commonly with triethylamine or sodium bicarbonate). This selective reaction introduces the Boc group to one nitrogen atom, leaving the other available for further modification. The Boc group is acid-labile, meaning it can be easily removed with trifluoroacetic acid (TFA) or HCl in dioxane — a common step in deprotection strategies.

Pharmaceutical and Industrial Applications

1. Intermediate for Drug Molecules

Piperazine-based compounds appear in over 20 approved drugs, such as:

Ciprofloxacin (antibiotic)

Risperidone (antipsychotic)

Sildenafil (vasodilator)

Dasatinib (anticancer)

1-Boc Piperazine serves as a protected precursor, simplifying the synthetic route to such molecules by providing clean, reproducible, and controlled substitution.

2. Lead Optimization & Structure-Activity Relationship (SAR) Studies

Due to its solubility and flexibility, medicinal chemists use 1-Boc Piperazine during lead generation and SAR exploration. It contributes to better:

Receptor binding affinity

Lipophilicity tuning

Solubility improvements

Metabolic stability

3. Scaffold in Peptidomimetics and Macrocycles

1-Boc Piperazine is widely used in macrocyclic drugs and peptidomimetic design, where its nitrogen atoms and ring flexibility help mimic natural peptides. These features are essential for creating protease inhibitors, antiviral agents, and enzyme blockers.

Advantages of Boc Protection

The Boc group offers:

Stability during base-sensitive reactions

Easy deprotection under mild acid

Increased synthetic selectivity

Minimized side reactions during multi-step synthesis

Its compatibility with automated synthesis platforms makes it indispensable for combinatorial chemistry libraries.

Storage and Handling

Shelf-life: Stable under normal conditions if kept dry and away from light

Storage Temperature: 2°C – 8°C recommended for extended shelf life

Hazards: May cause irritation; not considered highly toxic

Precautions: Use gloves, lab coat, and goggles; handle in well-ventilated area

Always refer to the Material Safety Data Sheet (MSDS) for proper handling guidelines.

Packaging and Availability

Offered by chemical suppliers in:

Research packs: 1g, 5g, 25g, 100g

Bulk & commercial lots: 1kg, 5kg, 25kg, with custom contract manufacturing available

Documentation: Supplied with COA, MSDS, TDS, and batch analysis reports. Export supported globally with REACH & ISO compliance as required.

Conclusion

1-Boc Piperazine is an indispensable tool for organic and medicinal chemists. Its protected structure, ease of functionalization, and pharmacological relevance make it a go-to intermediate in the development of next-generation therapeutics. Whether you're working in drug discovery, process chemistry, or academic research, this versatile compound supports innovation with efficiency, flexibility, and reproducibility.

Applications of 1-Boc Piperazine

1. Pharmaceutical Intermediate

1-Boc Piperazine plays a critical role in the synthesis of active pharmaceutical ingredients (APIs). It is frequently used in the preparation of:

Antipsychotic drugs

Antidepressants

Anti-inflammatory agents

Anticancer molecules

By protecting one of the nitrogen atoms on the piperazine ring, it allows for controlled modification of the other, which is essential in stepwise drug synthesis.

2. Medicinal Chemistry & Lead Optimization

In drug discovery and medicinal chemistry, 1-Boc Piperazine is commonly incorporated into combinatorial libraries for screening biological activity. The piperazine scaffold is highly valued for:

Enhancing water solubility

Improving membrane permeability

Acting as a bioisostere for amines or peptides

The Boc group can be easily removed using acid (e.g., TFA), providing flexibility in late-stage functionalization.

3. Peptidomimetic Design

Piperazine-based compounds like 1-Boc Piperazine are often used in the design of peptidomimetics. These are compounds that mimic peptide structures but are more stable and resistant to enzymatic degradation. 1-Boc Piperazine helps in creating:

Enzyme inhibitors

Receptor antagonists

Molecular probes

This application is particularly important in the development of drugs targeting GPCRs, kinases, and enzymatic pathways.

Safety and Handling

Hazard Classification: Low; may cause irritation upon direct contact

Handling Precautions: Use appropriate PPE (gloves, goggles); handle in a fume hood if large volumes are used

Storage Conditions: Store in a tightly sealed container, away from strong acids and heat sources; recommended storage temperature: below 25°C

Packaging and Availability

1-Boc Piperazine is available in:

Lab Packs: 5g, 25g, 100g

Bulk Quantities: 500g, 1kg, 5kg, and customized packaging on request

All batches come with COA, MSDS, and batch-specific documentation. Shipping is available worldwide.

Conclusion

1-Boc Piperazine is a strategically important intermediate in modern chemical synthesis, especially for pharmaceutical applications. Its combination of a reactive piperazine ring and a removable Boc group makes it a go-to building block for chemists involved in drug discovery, peptide chemistry, and heterocycle design. Its ease of use, stability, and broad reactivity spectrum continue to make it a valuable compound in both research and commercial manufacturing.
