4 Port FXS Gateway: A Complete Guide for VoIP Solutions

A 4 Port FXS Gateway is an essential device for businesses and telecom providers looking to integrate traditional analog phones with modern VoIP (Voice over IP) networks. This gateway allows businesses to connect multiple analog telephones, fax machines, or PBX systems to an IP-based communication network. In this article, we will explore what a 4 Port FXS Gateway is, its benefits, key features, and how to choose the right model for your business needs.

What is a 4 Port FXS Gateway?

A 4 Port FXS Gateway is a networking device that provides four Foreign Exchange Subscriber (FXS) ports, enabling the connection of four analog devices to a VoIP system. The FXS ports deliver dial tone, ringing voltage, and call signaling to analog endpoints like phones and fax machines.

In a VoIP environment, the FXS Gateway converts analog voice signals into digital packets for transmission over an IP network. It allows businesses to continue using their existing analog phones while benefiting from the cost savings and flexibility of VoIP.

How Does a 4 Port FXS Gateway Work?

The 4 Port FXS Gateway acts as a bridge between the analog devices and the VoIP network. It connects to the IP network via an Ethernet port and communicates with the VoIP server using SIP (Session Initiation Protocol). Here’s a step-by-step explanation of how it functions:

• Analog Phone Connection – The gateway is connected to analog telephones, fax machines, or PBX systems using the four FXS ports.
• VoIP Network Connection – It is linked to the IP network via an Ethernet connection.
• Signal Conversion – The gateway converts analog voice signals into digital data packets for VoIP transmission.
• Call Management – The device handles call routing, SIP signaling, and communication with the VoIP service provider or PBX system.
• Voice Data Transmission – The digitized voice packets are sent over the network, allowing seamless communication between analog and IP devices.

Benefits of Using a 4 Port FXS Gateway

1. Cost Savings

Businesses can reduce phone bills by using VoIP while keeping their existing analog phones. The gateway eliminates the need for expensive hardware upgrades.

2. Seamless Integration

A 4 Port FXS Gateway allows organizations to integrate legacy telephone systems with modern VoIP solutions, ensuring a smooth transition.

3. Scalability

The device supports expansion as businesses grow. Additional FXS gateways can be added to accommodate more analog devices.

4. High-Quality Voice Calls

With support for advanced voice codecs like G.711, G.729, and Opus, these gateways provide crystal-clear voice quality.

5. Easy Configuration & Management

Most 4 Port FXS Gateways come with web-based interfaces for simple setup and remote management.

Key Features of a 4 Port FXS Gateway

When choosing a 4 Port FXS Gateway, look for the following features:

1. SIP Protocol Support

Ensure the gateway supports SIP (Session Initiation Protocol) for compatibility with most VoIP providers and PBX systems.

2. Voice Codec Support

A good gateway should support multiple voice codecs, including G.711, G.722, G.729, Opus, and others, to maintain high-quality voice transmission.

3. Echo Cancellation & Noise Reduction

To ensure clear communication, the device should include echo cancellation, jitter buffer, and noise reduction.

4. Web-Based Management Interface

A user-friendly web-based interface allows for easy configuration, monitoring, and troubleshooting.

5. Security Features

Look for security protocols like TLS, SRTP, and VPN support to protect voice data from unauthorized access.

6. Fax Support (T.38 Protocol)

If you use fax machines, ensure the gateway supports T.38 fax relay, which enables reliable fax transmission over IP networks.

7. Power Failover Support

Some gateways provide failover mechanisms to ensure uninterrupted service during power outages.

How to Choose the Right 4 Port FXS Gateway?

Selecting the best 4 Port FXS Gateway depends on various factors. Here are some key considerations:

1. Compatibility with VoIP Provider

Before purchasing, check if the gateway is compatible with your VoIP service provider or IP PBX system.

2. Network Requirements

Assess your network infrastructure, including bandwidth capacity, firewall settings, and Quality of Service (QoS) support.

3. Number of Analog Devices

Determine how many analog devices you need to connect. A 4 Port FXS Gateway is ideal for small offices, retail stores, and residential VoIP setups.

4. Budget and Features

Compare different models based on pricing, features, and brand reputation. Leading manufacturers include Dinstar, Grandstream, Yeastar, and Cisco.

5. Technical Support & Warranty

Choose a gateway from a reputable vendor that provides reliable technical support and warranty services.

Top 4 Port FXS Gateway Models in 2025

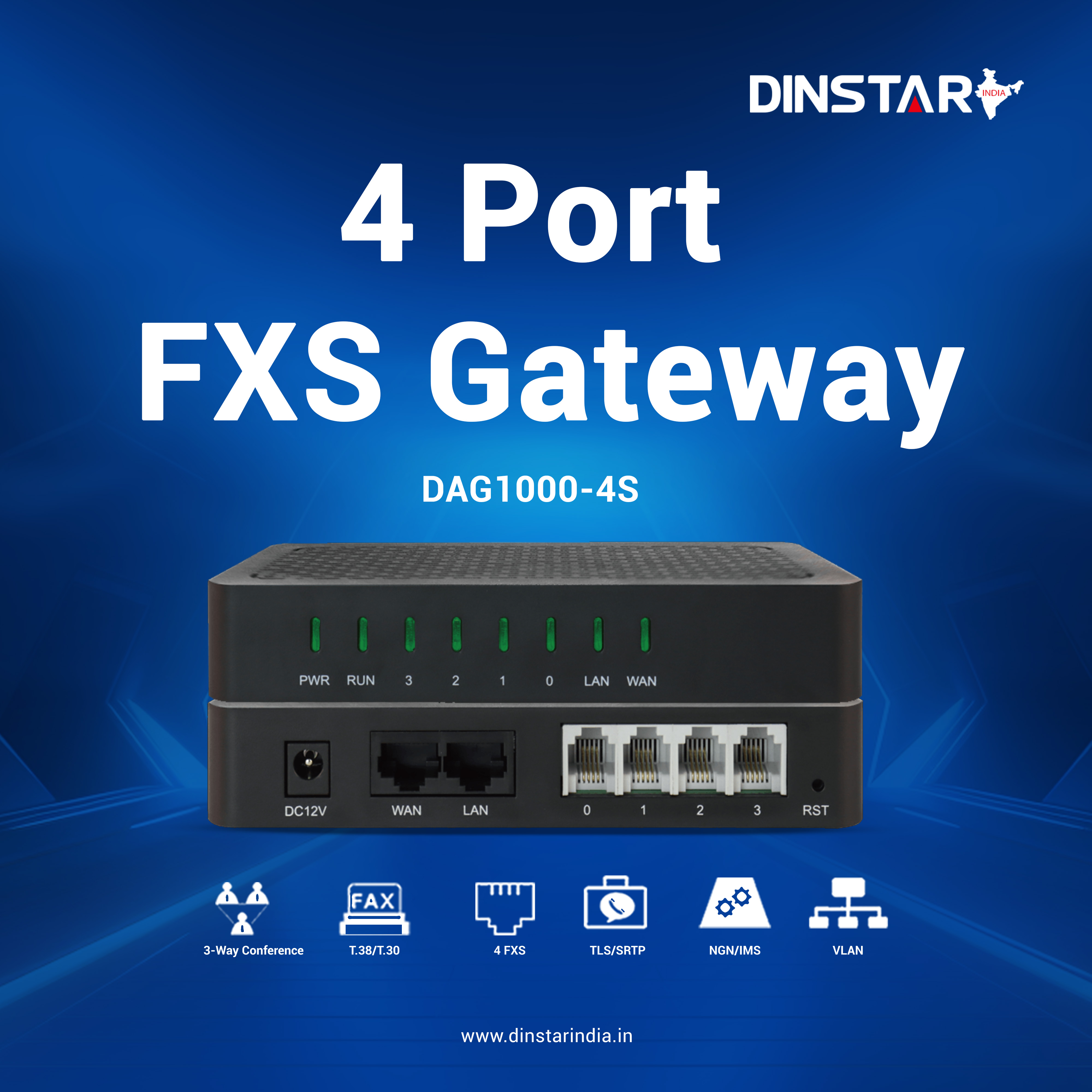

1. Dinstar DAG1000-4S

4 FXS ports

SIP & MGCP protocol support

T.38 fax relay

High-quality voice codecs

Web-based management

2. Grandstream HT814

4 FXS ports + Gigabit Ethernet

Strong security features (TLS & SRTP)

Wide codec support

Failover SIP server support

3. Yeastar TA400

4 FXS ports with VoIP integration

Echo cancellation & adaptive jitter buffer

Easy configuration via web interface

4. Cisco SPA8000

4/8 FXS ports available

Excellent security & voice quality

Suitable for enterprise VoIP deployments

Installation & Configuration Guide

Setting up a 4 Port FXS Gateway is straightforward. Here’s how you can do it:

1. Connect Analog Devices – Plug your analog phones or fax machines into the FXS ports.
2. Connect to Network – Use an Ethernet cable to link the gateway to your router or switch.
3. Power On – Plug in the power adapter and turn on the device.
4. Access the Web Interface – Open a web browser and enter the device’s IP address to access the configuration panel.
5. Configure SIP Settings – Enter your SIP account details from your VoIP provider.

Adjust Network & Audio Settings – Configure QoS, codecs, and echo cancellation for optimal performance.

Save & Reboot – Apply the changes and reboot the gateway.

Final Thoughts

A 4 Port FXS Gateway is a cost-effective and efficient solution for businesses looking to integrate analog telephony with VoIP. It offers seamless connectivity, high voice quality, and easy management. Whether you are a small business, call center, or enterprise, investing in the right FXS gateway will help you optimize communication costs and enhance operational efficiency.

When choosing a 4 Port FXS Gateway, consider factors like SIP support, codec compatibility, security features, and ease of management. Brands like Dinstar, Grandstream, Yeastar, and Cisco offer reliable solutions that cater to different business needs.
