Duplex S31803 Welded Tubes: Selection, Properties, and Best Practices

Detected intent: Informational

Duplex S31803 welded tubes are a common choice where higher strength and improved corrosion resistance are required compared with standard austenitic stainless steels. This guide explains material properties, fabrication considerations, inspection methods, and real-world selection advice for engineers, purchasers, and fabricators evaluating Duplex S31803 welded tubes for piping, heat exchangers, and structural components.

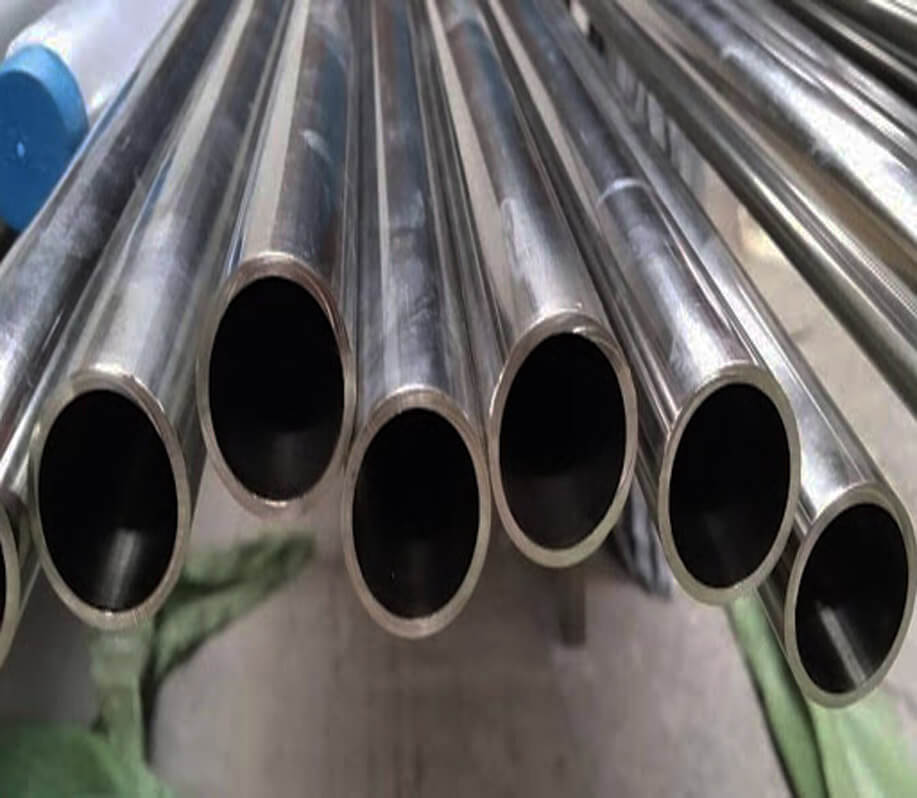

Duplex S31803 welded tubes: Properties and applications

Duplex S31803 welded tubes combine a ferritic and an austenitic microstructure, delivering higher yield strength, good toughness, and enhanced resistance to pitting and stress corrosion cracking. Key material identifiers include UNS S31803 and the industry designation 2205. Typical mechanical advantages include yield strength around 450–550 MPa (varies with heat treatment and product form) and tensile strength in the 620–880 MPa range.

Where S31803 performs best

• Chloride-bearing environments (brackish water, seawater cooling systems) where chloride pitting and SCC risk is a concern.
• Pressure piping and heat exchangers requiring higher strength-to-weight ratios.
• Applications needing good weldability and cost-effective performance compared with higher-nickel alloys.

Relevant specifications and standards

Common specs for seamless and welded duplex stainless tube include ASTM and ISO/EN product standards. For welded tube and pipe materials and testing, consult the ASTM A790/A790M standard for duplex stainless steels and applicable EN/ISO standards. For official specification details, see the ASTM standard listing (relates to material selection and testing) (ASTM A790).

How to evaluate and specify Duplex S31803 welded tubes

Selection must balance corrosion risk, mechanical load, fabrication method, and inspection budget. Consider the environment (chloride concentration, temperature, crevice geometry), mechanical loads, and required lifecycle. Use pitting resistance equivalent number (PREN) and laboratory corrosion tests to compare candidate alloys.

S31803 SELECTION CHECKLIST

1. Confirm environmental profile: chloride level, temperature, sulfide presence.
2. Verify mechanical requirements: yield, tensile, and design pressure.
3. Specify welding process and compatible filler metals (match duplex filler where practical).
4. Define post-weld testing: visual, dye penetrant, PMI, hardness, and, if required, pitting or crevice corrosion testing.
5. Include acceptance criteria for heat tint removal and surface finish to control corrosion initiation sites.

Welding, fabrication, and inspection best practices

Duplex stainless tube welding practices

Duplex stainless tube welding practices focus on preserving the balanced duplex microstructure and avoiding deleterious phases (sigma, chi). Key controls include prequalified welding parameters, controlled heat input, and selection of suitable filler metals (e.g., matching duplex filler with controlled ferrite content). Monitor interpass temperature and use low-carbon or stabilized consumables where appropriate.

Inspection and testing

Standard nondestructive inspection methods include visual, dye penetrant, and radiography or ultrasonic for critical joints. Positive material identification (PMI) is used to confirm chemistry. Consider hardness testing near welds to detect embrittlement; if elevated hardness or suspected sigma phase occurs, perform corrosion testing or microstructure evaluation.

Common mistakes and trade-offs

Trade-offs when choosing Duplex S31803

• Cost vs. performance: S31803 is typically more costly than 304/316 but cheaper than superaustenitic or nickel alloys; balance initial cost with expected lifetime and maintenance.
• Fabrication complexity: better strength and corrosion resistance come with stricter welding controls and sometimes additional testing effort.
• Temperature limits: duplex grades have limited high-temperature strength/stability compared to some ferritic or austenitic grades—avoid prolonged exposure above recommended ranges where sigma phase forms.

Common mistakes

• Using generic austenitic filler metal that produces too much austenite in the weld, reducing strength and pitting resistance.
• Allowing excessive heat input or multiple welding passes without control, which can form sigma phase and reduce toughness.
• Not specifying post-weld cleaning, leaving heat tint that lowers local corrosion resistance.

Practical tips for procurement and on-site work

Three to five actionable tips help ensure success when specifying or installing Duplex S31803 welded tubes:

• Specify duplex-matching filler metals and control heat input in qualification records to maintain PREN targets.
• Require PMI and mill certificates with chemical and mechanical test results for each heat/lot of supplied tube.
• Include post-weld cleaning (pickling or controlled mechanical cleaning) and define acceptable surface finish to avoid crevice corrosion.
• Plan for in-service monitoring: periodic corrosion checks and corrosion coupon tests in aggressive environments.

Short real-world example

A coastal petrochemical plant replaced 300 m of carbon-steel cooling lines with Duplex S31803 welded tubes for a seawater cooling loop. Specification required duplex filler metal, PMI on each weld, and hardness testing near welds. After two years, the lines showed reduced maintenance and no recorded pitting failures, validating the higher upfront material and fabrication controls.

Core cluster questions

1. How does Duplex S31803 compare with 316L in chloride environments?
2. What welding procedures preserve duplex microstructure in welded tubes?
3. Which nondestructive tests are recommended for duplex welded tubing?
4. How to interpret PREN for duplex stainless tubes in design specifications?
5. When should duplex be upgraded to superaustenitic or nickel alloys?

Maintenance, lifecycle, and end-of-life considerations

Lifecycle planning should include routine inspection for pitting, crevice corrosion, and stress corrosion cracking. Duplex S31803 often extends service life relative to 304/316 in chloride service, but operating temperatures, welding quality, and mechanical stress states determine real-world longevity.

Disposal and recyclability

Like most stainless steels, duplex grades are recyclable. Track material identification for end-of-life recycling streams to recover alloying elements responsibly.

Frequently asked questions

What are Duplex S31803 welded tubes and when should they be used?

Duplex S31803 welded tubes are a duplex stainless steel product combining austenitic and ferritic phases, designed for higher strength and improved resistance to stress corrosion cracking and pitting. Use them when chloride exposure, higher pressure ratings, or improved strength-to-weight ratio justify the grade over standard austenitics.

Are Duplex S31803 welded tubes corrosion resistant in seawater?

S31803 has good resistance to pitting and crevice corrosion in moderately aggressive chloride environments. For full seawater or highly aggressive conditions, consider corrosion testing, crevice design mitigation, or higher PREN alloys depending on temperature and chloride concentration.

What welding precautions are required for Duplex S31803 welded tubes?

Control heat input and interpass temperature, use matching duplex filler metal where possible, and verify weld chemistry by PMI and microstructure checks. Avoid excessive post-weld heat or slow cooling that can promote sigma phase formation.

How to confirm the chemical composition and mechanical properties on delivery?

Require mill test reports (MTRs) showing chemical analysis and mechanical test results per the specified standard. Supplement with PMI spot checks and acceptance sampling for critical lots.

Can Duplex S31803 welded tubes be used in cryogenic service?

Duplex grades generally maintain good toughness at lower temperatures, but verify impact test requirements and specific product certification for cryogenic service before selection.
