HDPE Injection Molding Guide: Processes, Properties, and Best Practices


Want your brand here? Start with a 7-day placement — no long-term commitment.


HDPE injection molding is a widely used manufacturing method for producing durable, low-cost plastic parts. This guide explains the process flow, key material properties, design and tooling considerations, and actionable tips to reduce defects and speed up qualification. It is written for engineers, product designers, and manufacturing planners who need practical guidance on using HDPE in injection molding applications.

Summary

Core takeaways: HDPE offers excellent chemical resistance, low density (0.941–0.965 g/cm3), and good impact strength but tends to shrink and warp due to high crystallinity. Control melt temperature, mold temperature, gate design, and cooling to reduce sink and warpage. Use the MOLDED Checklist for process readiness.

Detected intent: Informational

HDPE injection molding: material properties that affect processing

High-density polyethylene (HDPE) is a semi-crystalline thermoplastic with a typical density between 0.941 and 0.965 g/cm3 and a wide range of melt flow indices (MFI). These HDPE molding properties — crystallinity, melt viscosity, thermal conductivity, and shrinkage — directly determine processing window, cooling behavior, and final-part dimensions. For authoritative material property ranges, consult industry references such as PlasticsEurope's polyethylene fact sheets (PlasticsEurope: Polyethylene).

Injection molding process overview

Key steps

The core process steps are: resin selection and drying (HDPE normally does not require aggressive drying but avoid moisture pick-up), melt plasticization in the barrel, injection through runner and gate into the tool, packing/holding to compensate for shrinkage, cooling to enable crystallization, and ejection/trim. Typical melt temperatures for HDPE are in the 200–260°C range and mold temperatures are commonly 20–60°C depending on part geometry and desired crystallinity.

Machine and tooling considerations

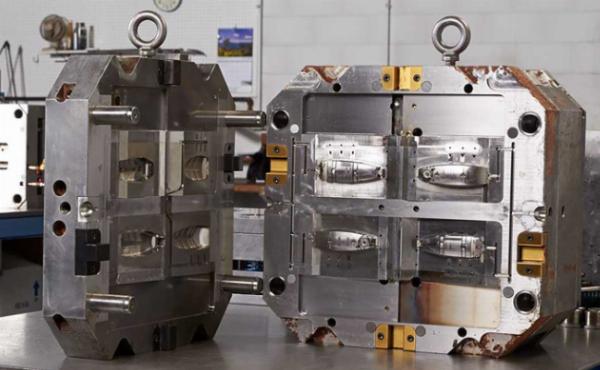

Use an injection unit with appropriate backpressure and screw geometry for low-to-medium MFI grades. Tooling should prioritize uniform wall thickness, generous radii, and attention to gate location to minimize flow-induced orientation, which can otherwise raise warpage risk. Consider valve gates for cosmetic parts and full-round runners for high-volume parts to reduce pack losses.

Design for injection molded HDPE parts

Design guidance for injection molded HDPE parts includes limiting abrupt wall-thickness transitions, using ribs and gussets for stiffness rather than extra thickness, providing draft angles for ejection, and planning for 1–3% linear shrinkage depending on grade and orientation. When designing thin-walled enclosures or structural crates, plan for cooling channels in the mold to manage differential cooling and crystal growth.

Molded orientation and crystallinity

Flow-induced orientation during fill can create anisotropic mechanical properties and warpage as the part crystallizes. Balance flow length and gate placement to reduce long flow paths, and use packing phases to keep internal pressure during crystallization to reduce sink marks.

MOLDED Checklist: a quick process-readiness framework

Use the MOLDED Checklist before production to reduce trial cycles. MOLDED stands for:

  • Material: Verify grade, MFI, regrind percentage, and moisture condition.
  • Orientation: Plan gate placement and flow paths to control orientation.
  • L/D & Machine: Confirm screw L/D, shot size, and machine tonnage.
  • Design: Review part/cavity wall thickness, radii, and draft.
  • Ejection & Cooling: Set mold temp, cooling layout, and ejector strategy.
  • Debugging: Predefine measurements, inspection points, and trial adjustments.

Practical tips for consistent results

Actionable points to improve first-time yield for injection molded HDPE parts:

  • Start with a conservative melt temp (e.g., 210–230°C) and increase gradually if flow is inadequate — avoid overheating, which reduces molecular weight and strength.
  • Use stepped packing: higher initial packing pressure to fill thin sections, then reduced pressure to minimize overpacking and sink.
  • Balance fill by adjusting gates or using sequential valve gating for long complex parts to avoid weld lines and uneven shrink.
  • Control mold temperature: keep it stable rather than high; warmer molds increase cycle time and crystalline growth that increases shrink and warp.
  • Limit regrind to recommended percentages; monitor ash and contaminants that cause flashing and flow issues.

Common mistakes and trade-offs

Understanding trade-offs helps set realistic expectations:

  • Trade-off: Higher mold temperature can improve surface finish and reduce stresses but increases cycle time and crystallinity — which can raise shrinkage and warpage. Choose mold temperature based on cosmetic vs dimensional priorities.
  • Trade-off: Thicker sections add stiffness but increase shrink and cooling time; use ribs/gussets to avoid unnecessary thickness.
  • Common mistake: Ignoring flow balance — long flow lengths cause weld lines and differential orientation. Address with gate redesign, flow leaders, or hot/valve gating.
  • Common mistake: Excessive reliance on regrind — high regrind percentages degrade impact strength and can change melt rheology, causing inconsistent cycles.

Short real-world example

Scenario: A supplier must produce a stackable HDPE utility crate (external dimensions 600×400×300 mm) with ribs and integrated handles. Initial trials showed warpage across the lid and sink marks near ribs. Actions taken: switch to a slightly higher MFI HDPE to improve flow into thin ribs, add a hot-runner with two balanced gates to reduce flow length, lower mold temperature from 50°C to 30°C to speed cooling and reduce crystallinity-driven shrink differences, and implement a stepped packing profile focused on the rib areas. Result: reduced warp within tolerance and a 12% shorter cycle time after cooling optimization.

Quality control and testing recommendations

Measure dimensional stability after parts reach room temperature; check tensile and impact properties per ASTM standards (for polyethylene, see ASTM and ISO plastics test methods). Monitor melt flow index and perform periodic DSC or density checks to detect batch-to-batch variation. Establish an inspection plan for critical dimensions and visible defects (sink, weld lines, flash).

Core cluster questions

  • How does HDPE compare to other polyolefins for injection molding?
  • What causes warpage in injection molded HDPE parts and how is it fixed?
  • Which HDPE grades are best for thin-wall injection molding?
  • How to design gates and runners for injection molded HDPE?
  • What post-molding treatments reduce residual stress in HDPE parts?

Resources and standards

Refer to material data sheets from resin suppliers and test methods from organizations such as ASTM International and ISO for tensile, impact, and thermal properties. The linked PlasticsEurope page provides baseline physical properties for polyethylene families and helps validate density and grade information.

FAQ

What is HDPE injection molding and when is it used?

HDPE injection molding is the process of melting high-density polyethylene and injecting it into a mold to make discrete parts. It is used where chemical resistance, toughness, and low cost matter — examples include closures, crates, fittings, and durable consumer goods.

What are common defects in injection molded HDPE parts?

Frequent defects include sink marks, internal voids, warpage, weld lines, flashing, and short shot. Most defects trace back to inappropriate gate placement, poor thermal control, incorrect packing strategy, or inconsistent material quality.

How does melt flow index affect HDPE molding?

Melt flow index (MFI) indicates how easily the polymer melts flow. Higher MFI grades flow easier and fill long thin sections better but often have lower mechanical strength. Select MFI based on part geometry and required mechanical performance.

Can HDPE be painted or bonded after injection molding?

HDPE has a low surface energy, making painting and bonding difficult without surface treatment. Common approaches include flame treatment, corona treatment, or use of specialized primers and adhesives designed for polyethylene.

How to control shrinkage and warpage in injection molded HDPE?

Shrinkage and warpage are controlled by material selection (grade and MFI), gate and runner design, uniform wall thickness, adequate packing/holding profile, balanced cooling, and controlling mold temperature to minimize uneven crystallization.
