INGYU Stamping Press Guide: Precision Design, Performance Metrics, and Production Best Practices

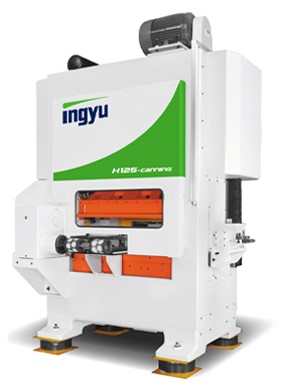

Manufacturers evaluating metal forming equipment need clear criteria for accuracy, uptime, and throughput. The INGYU stamping press family is built for repeatable results in blanking, forming, and progressive-die production; this guide explains how an INGYU stamping press achieves precision and what production teams should measure when specifying, installing, and maintaining presses.

INGYU stamping press: core engineering features and performance metrics

Press selection should begin with measurable attributes. For precision production, evaluate bed size, stroke length, tonnage rating, frame rigidity, guide system type (roller or box guides), clutch/drive response, and if applicable, servo control for programmable motion. Key performance metrics to track: slugs per minute (cycle rate), part repeatability (micron-level tolerance capability), die life (strokes until rework), and overall equipment effectiveness (OEE).

How precision is achieved: design elements and trade-offs

Several engineering choices affect precision and throughput:

• Frame rigidity: A heavily ribbed frame minimizes deflection under tonnage, preserving die clearance throughout the stroke.
• Guide system and slide control: High-accuracy box guides reduce lateral play; roller guides lower friction and can permit higher speed at some sacrifice in outright stiffness.
• Drive type (mechanical, hydraulic, servo): Mechanical presses deliver high-speed repetitive strokes; hydraulic units offer controllable force and dwell; servo presses blend motion profiles for optimized forming and reduced scrap. Trade-off: mechanical for speed and cost, hydraulic for force control, servo for versatility and lower scrap in complex forming.
• Tooling and alignment: Precision dowel locating, robust bolting patterns, and shim strategies maintain die geometry under load.

STAMP Checklist: setup and maintenance framework

Use the STAMP Checklist to standardize press commissioning and preventive care:

• Setup verification — Confirm tonnage, stroke, bed size, and guards match die requirements.
• Tooling alignment — Verify dowel pins, shims, and bolster flatness with a dial indicator or laser alignment tool.
• Alubrication and air — Validate centralized lubrication, hydraulic fluid condition, and pneumatic supply filters.
• Monitoring systems — Install tonnage monitors, part counters, and vibration baselines to detect drift.
• Preventive maintenance — Schedule cleaning, bearing checks, guide re-greasing, and die inspection at set stroke intervals.

Real-world example: reducing scrap in a multi-station progressive die line

A mid-sized supplier producing stamped brackets moved from an older mechanical press to a servo-enabled INGYU stamping press with a precision box guide. Initial issues were die misalignment and variable blank feeding. Applying the STAMP checklist—re-aligning the bolster with a laser system, installing a tonnage monitor, and tuning the feed timing on the servo drive—reduced scrap by 28% and increased overall line uptime by 14% in three months. The tonnage monitor also flagged a gradual tool wear trend that preventive rework eliminated before a critical die failure.

Practical tips for commissioning and daily operation

• Document baseline measurements: torque, tonnage curves, part dimensional baselines, and vibration signatures during first 1,000 cycles.
• Use tonnage- and position-based interlocks for automated cycles; a programmable servo allows dwell and retract profiles that reduce burr and springback.
• Keep a die life log tied to part production so rework or regrind can be scheduled before dimensional drift affects quality.
• Implement quick-change tooling plates and standardized bolting patterns to reduce changeover time and preserve alignment accuracy.

Safety, standards, and best practices

Press installations must follow machine guarding and lockout/tagout standards. Machine guarding, two-hand controls, presence-sensing devices, and regular safety audits reduce operator risk. For guidance on machine guarding requirements and best practices, consult the OSHA machine guarding resources (link provided below).

OSHA machine guarding guidance

Common mistakes and trade-offs when specifying an INGYU stamping press

Common mistakes and how to weigh trade-offs:

• Over-specifying tonnage: Selecting a press with excessive tonnage increases initial cost and energy usage without improving part accuracy; size the press to handle the worst-case forming load plus margin.
• Ignoring guide type trade-offs: Choosing roller guides for speed can reduce stiffness—evaluate the part tolerance before prioritizing speed.
• Skipping monitoring systems: Not installing basic tonnage or vibration monitors delays detection of tool wear or misfeeds, increasing scrap risk.
• Under-investing in die maintenance: Poor die care shortens life and causes dimensional drift; routine regrind and polish schedules preserve accuracy.

Core cluster questions for further reading and internal linking

• How does a servo press compare to a mechanical press for high-precision stamping?
• What metrics define die health and when should dies be regrinded?
• Which guide systems provide the best repeatability for progressive dies?
• How to size press tonnage for complex forming operations?
• What safety devices are mandatory for industrial stamping presses?

Implementation checklist and measurement plan

Before the first production run, complete a measurement plan: capture initial part Cpk, first-pass yield, cycle time, and OEE. Schedule checkpoints at 1,000, 10,000, and 100,000 strokes to compare against baselines. Use results to tune feed timing, ram motion, and lubricants.

Practical maintenance schedule (example)

• Daily: Visual inspection, lubrication points, clean scrap areas, check air pressure.
• Weekly: Verify alignment of slide with a dial indicator, check fasteners, inspect safety guards.
• Monthly: Check hydraulic fluid level and filters, examine guide wear, verify tonnage curves on test stokes.
• Annual: Full teardown inspection, regrind or replace worn dies, recalibrate monitoring sensors.

FAQ — What is an INGYU stamping press and how does it improve accuracy?

An INGYU stamping press is a class of industrial press engineered for metal forming that emphasizes frame rigidity, precise guide systems, and controlled drive options (mechanical, hydraulic, or servo). Accuracy gains come from minimizing slide deflection, ensuring repeatable die alignment, and using modern monitoring systems to detect process drift before parts go out of tolerance.

FAQ — How should tonnage be calculated for production dies?

Tonnage should be calculated by summing the maximum forming forces across all simultaneous cutting or forming operations plus a safety margin (typically 10–25%). Consider blanking, piercing, and forming loads and consult material tensile strength charts and die design references when calculating forces.

FAQ — What routine checks prevent unexpected downtime?

Routine checks include daily lubrication, fastener torque verification, weekly guide alignment checks, monitoring tonnage curves for drift, and logging die cycle counts. Early detection through vibration or force monitoring prevents catastrophic die failures.

FAQ — Can retrofit controls improve an older press's performance?

Retrofitting older presses with modern servo drives, electronic feed control, and tonnage monitoring can improve part consistency and allow more flexible motion profiles. Validate structural health and guide condition before investment to ensure returns.

FAQ — What are typical signs of die wear and when should dies be serviced?

Signs include rising tonnage for the same operation, increased burr, dimensional drift, and visible tool chipping. Service dies at set stroke intervals or when monitoring shows trends away from baseline tolerances.
