Insulating Mats for Electrical Purposes:Features, Specifications, Test Reports, and ISI Marking

Insulating mats are essential safety equipment in electrical environments, designed to protect workers from electric shocks and accidents. In India, these mats must comply with the Indian Standard (IS) 15652, which sets out the requirements for elastomeric insulating mats used in electrical purposes. This article delves into the key aspects of IS 15652-compliant insulating mats, including their features, specifications, the importance of test reports, and the role of ISI marking. By adhering to these standards, industries can ensure enhanced safety, regulatory compliance, and reliability in high-voltage settings.
What is IS 15652?

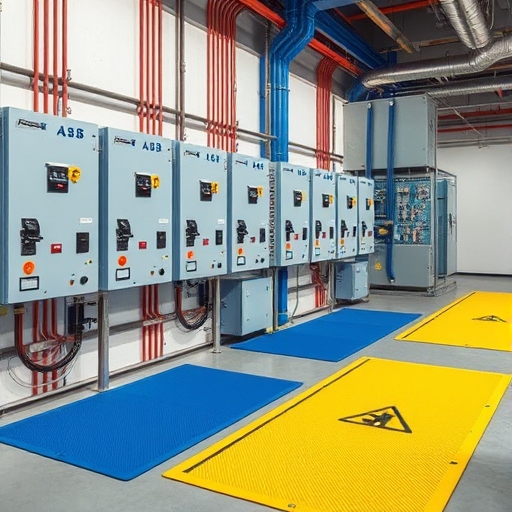

IS 15652 is a national standard established by the Bureau of Indian Standards (BIS), the national standards body of India. First published in 2006 and revised periodically, this standard specifies the requirements for rubber or elastomeric insulating mats intended for use in electrical installations. These mats are primarily used in substations, power plants, switchgear rooms, and other areas where personnel might be exposed to live electrical equipment.

The standard aims to minimize the risk of electric shock by ensuring that the mats provide adequate insulation against high voltages. It covers aspects such as material composition, physical properties, electrical performance, and testing procedures. Compliance with IS 15652 is mandatory for manufacturers and suppliers in India, as per the regulations of the BIS, to guarantee product quality and user safety.
Key Features of Insulating Mats as per IS 15652

Insulating mats under IS 15652 are engineered with specific features that make them suitable for electrical safety applications. These features not only enhance protection but also ensure durability and ease of use in demanding environments.

    High Dielectric Strength: The mats are designed to withstand high voltages without breaking down, providing a barrier between the user and the ground to prevent electric shock.

    Anti-Slip Surface: Most mats have a textured or ribbed surface to offer excellent grip, reducing the risk of slips and falls in oily or wet conditions commonly found in electrical setups.

    Chemical and Oil Resistance: They are resistant to acids, alkalis, oils, and other chemicals, making them ideal for industrial settings where spills or exposure to harsh substances is common.

    Flexibility and Durability: Made from high-quality elastomeric materials like natural or synthetic rubber, these mats are flexible yet tough, allowing them to withstand repeated use, abrasion, and environmental stresses without cracking or degrading.

    Fire Retardant Properties: IS 15652-compliant mats often include fire-resistant additives, ensuring they do not easily catch fire or propagate flames in case of electrical faults.

    Ease of Maintenance: These mats are lightweight and easy to clean, which simplifies maintenance and extends their lifespan.

Overall, these features make insulating mats a critical component in occupational safety, particularly in compliance with international safety guidelines like those from the International Electrotechnical Commission (IEC).
Specifications as per IS 15652

IS 15652 outlines detailed specifications to ensure that insulating mats meet stringent safety criteria. These specifications cover dimensions, material properties, electrical performance, and environmental resistance. Below is a breakdown of the key specifications:
Material and Construction

    Base Material: The mats must be made from elastomeric compounds, such as natural rubber, synthetic rubber (e.g., EPDM or neoprene), or blends that provide excellent insulation.
    Thickness: Specified thicknesses vary based on the voltage rating. For instance:
        Up to 3.3 kV: Minimum 2 mm
        Up to 11 kV: Minimum 2.5 mm
        Up to 33 kV: Minimum 3.5 mm
        Higher voltages may require thicker mats, up to 12 mm or more.
    Size: Mats are typically available in standard sizes like 1m x 2m or custom dimensions, but they must be uniform and free from defects like cuts or bubbles.

Electrical Specifications

    Voltage Rating: Mats are classified by their maximum working voltage, such as Class A (up to 3.3 kV), Class B (up to 11 kV), and Class C (up to 33 kV). They must maintain insulation integrity at these levels.
    Dielectric Strength: The mats should withstand a proof voltage test without breakdown. For example, a mat rated for 11 kV must endure at least 40 kV during testing.
    Leakage Current: The standard limits the leakage current to ensure safe operation, typically not exceeding 10 mA under test conditions.

Physical and Mechanical Properties

    Tensile Strength: Minimum 15 MPa, ensuring the mat can handle physical stress without tearing.
    Elongation at Break: At least 250%, allowing the mat to stretch without failure.
    Hardness: Measured on the Shore A scale, typically between 65-75, for optimal flexibility and resistance.
    Ageing Resistance: Mats must retain their properties after accelerated ageing tests, simulating long-term exposure to heat, ozone, and UV radiation.

Environmental Specifications

    Temperature Range: Mats should perform effectively in temperatures from -10°C to +55°C.
    Resistance to Oils and Chemicals: As per IS 15652, mats must show no significant degradation after immersion in oils or exposure to acids for specified durations.

Manufacturers must ensure that their products meet or exceed these specifications, as verified through rigorous testing.
Testing and Test Reports

To confirm compliance with IS 15652, insulating mats undergo a series of tests conducted by accredited laboratories. These tests evaluate the mats' electrical, mechanical, and chemical properties. A test report is a critical document that certifies the product's quality and safety.
Key Tests as per IS 15652

    Dielectric Strength Test: The mat is subjected to a high-voltage AC or DC test to check for electrical breakdown. For example, a 11 kV mat might be tested at 40 kV for one minute.

    Insulation Resistance Test: Measures the resistance between the mat and a conductive surface, ensuring it exceeds 1,000 megaohms.

    Tensile Strength and Elongation Test: Samples are stretched until they break to verify mechanical strength.

    Ageing Test: Involves exposing the mat to elevated temperatures (e.g., 70°C for 168 hours) to assess long-term durability.

    Flammability Test: Checks the mat's resistance to fire using methods like the limited oxygen index.

    Slip Resistance Test: Evaluates the coefficient of friction to ensure the surface is non-slip.

The Test Report

A comprehensive test report, issued by a BIS-recognized laboratory, includes:

    Detailed test results for each parameter.
    Comparison against IS 15652 specifications.
    Photographs or diagrams of the tested samples.
    Certification of compliance or non-compliance.
    The report is valid for a certain period (e.g., one year) and must be renewed for ongoing production.

Test reports are crucial for manufacturers to obtain ISI marking and for buyers to verify product authenticity. In case of failures, the report helps identify issues for improvement.
ISI Marking: Ensuring Quality and Compliance

The ISI mark, administered by the BIS, is a hallmark of quality and safety for products manufactured in India. For insulating mats, ISI marking signifies that the product has been tested and conforms to IS 15652.
How ISI Marking Works

    Application Process: Manufacturers apply to BIS for a license after demonstrating compliance through factory inspections and sample testing.
    Marking on Products: Once approved, the ISI mark is stamped or labeled on the mats, along with details like the license number, standard code (IS 15652), and manufacturing date.
    Benefits: Products with ISI marking are legally recognized, reducing liability for users. They also enjoy better market acceptance, as they assure buyers of safety and reliability.

Using non-ISI marked mats can lead to severe consequences, including accidents, legal penalties, and insurance issues. Therefore, industries are encouraged to prioritize certified products.

Insulating mats compliant with IS 15652 play a vital role in safeguarding lives and equipment in electrical environments. Their robust features, stringent specifications, thorough testing, and ISI marking collectively ensure high standards of safety and performance. As electrical systems become more complex, adhering to such standards is not just a regulatory requirement but a moral imperative for preventing workplace hazards.

For businesses and professionals in the electrical sector, investing in IS 15652-compliant mats is a step toward enhanced safety and operational excellence. Always verify the ISI mark and review test reports before procurement to ensure you're using genuine, high-quality products. By doing so, we can foster a culture of safety and reliability in India's growing industrial landscape.
