PEEK Injection Molding Guide: How to Produce High‑Performance Polymer Parts

Introduction

PEEK injection molding unlocks reliable performance for demanding components used in aerospace, medical devices, energy, and industrial applications. This guide explains key material behaviors, process windows, and practical steps to produce consistent, high‑quality PEEK parts for high‑temperature, chemical‑resistant, or wear‑critical uses.

Detected intent: Informational

PEEK injection molding: material essentials and when to use it

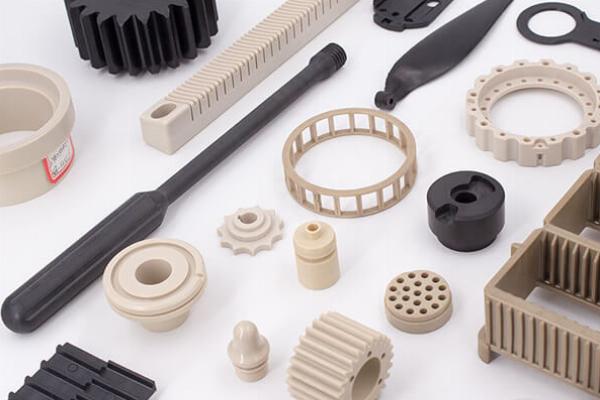

PEEK is a semi‑crystalline, high‑performance thermoplastic known for high glass transition and melting temperatures, excellent chemical resistance, and strong mechanical properties at elevated temperatures. Typical applications include valve components, electrical connectors, bearing cages, and implantable device housings. PEEK’s high melt viscosity and narrow processing window make injection molding more challenging than commodity polymers but feasible with appropriate machines and process controls.

Key material properties

• High melting temperature (approx. 340°C) and use temperatures up to 250°C in continuous service.
• Semi‑crystalline structure: crystallinity affects stiffness, dimensional stability, and chemical resistance.
• High melt viscosity — needs high injection pressures and tight screw control.
• Hydrophilic uptake: hygroscopic behavior requires drying before molding.

Standards and references

Material datasheets and industry standards should be used to set initial processing windows; plastic standards bodies and suppliers publish verified guidance. For a reliable standards reference, consult ASTM for polymer test standards and general plastics guidance: ASTM.

Essential equipment and mold design considerations

Processing PEEK requires a machine and mold that support high temperatures and pressures. Typical machine features include a high‑temperature barrel and nozzle (capable of 380–420°C), a hardened screw and barrel for abrasive or reinforced grades, and a hot runner system designed for elevated temperatures if used.

Mold design tips

• Use generous gate sizes and gate locations that favor flow into thin or long ribs; avoid extremely long thin flow paths without flow assists.
• Design for uniform wall thickness where possible; step changes increase weld lines and residual stress.
• Plan for high mold tempering: typical mold temperatures are 160–200°C for semi‑crystalline grades to control crystallization and shrinkage.
• Include venting strategies and robust ejection systems since parts can be stiff and dimensionally critical.

PEEK molding process optimization

Optimize melt temperature, injection speed, backpressure, and packing to manage flow and crystallization. Higher melt temperatures lower viscosity and improve fill but increase risk of degradation. Controlled fast injection and sufficient packing reduce voids and surface defects.

PEEK MOLD‑READY Checklist (named framework)

Use the PEEK MOLD‑READY Checklist before first shots to reduce trial iterations and unexpected scrap:

1. Material: Verify grade, lot, filler content, and datasheet processing window.
2. Drying: Confirm drying method (vacuum or desiccant), temperature, and dew point; typical drying: 150°C for 3–6 hours depending on pellet condition.
3. Machine: Barrel/nozzle capability to 420°C, high‑pressure injection unit, and high return‑flow control on the screw.
4. Mold: Tempering circuits sized for 160–200°C, venting, adequate gate and runner design, and hardened surfaces for reinforced compounds.
5. Process: Initial setpoints for melt, mold, injection speed, packing time, and cooling time; set data logging for each shot.

Practical tips for consistent results

• Strictly control moisture: use a desiccant dryer and verify pellet moisture with a reliable sensor.
• Start with conservative high melt and mold temperatures within the material datasheet; then incrementally lower melt temperature to reduce degradation while monitoring melt flow and visual quality.
• Use high injection speed and switching to packing early to avoid short shots in thin sections, then adjust packing to minimize sink and internal stress.
• Log cycle data and part metrics (weight, dimensions, surface condition) per shot to build a quality baseline for SPC.

Short real‑world scenario

A medical device supplier moved a PEEK connector from a lab press to production injection molding. Using the PEEK MOLD‑READY Checklist, the team installed mold heating to 180°C, dried pellets 4 hours at 150°C, increased injection pressure and gate size, and logged each shot. Within three controlled iterations, cycle time was reduced 20% and dimensional variation fell under target tolerances for assembly.

Common mistakes and trade‑offs

Common mistakes

• Insufficient drying: leads to bubbles, black specks, and reduced mechanical properties.
• Low mold temperature: produces incomplete crystallization control, warpage, and higher shrinkage variability.
• Underestimating clamp force: high melt pressure and reinforced grades need stronger clamps to avoid flash.
• Overheating melt: causes polymer degradation (discoloration, brittleness) — monitor for color and torque spikes.

Trade‑offs to consider

Higher melt and mold temperatures improve flow and reduce flow marks but increase cycle time and energy use. Reinforced PEEK grades improve stiffness and wear resistance but raise melt viscosity and tooling wear. Choosing faster cycles may reduce cost per part but can increase internal stresses and dimensional variance.

Core cluster questions

• How does PEEK compare to PPS and Ultem for high‑temperature parts?
• What are best practices for drying PEEK pellets before molding?
• How should mold temperature be controlled for consistent PEEK crystallinity?
• Which gate designs work best for long flow paths in PEEK parts?
• How to evaluate wear and abrasion resistance for reinforced PEEK compounds?

FAQ

What is the ideal mold temperature for PEEK injection molding?

Typical mold temperatures for semi‑crystalline PEEK are 160–200°C. The target depends on part thickness and desired crystallinity; thicker sections often benefit from higher mold temperatures to allow uniform crystallization and reduce internal stress. Start in the middle of the supplier’s recommended range and adjust while tracking dimensional stability.

How long should PEEK pellets be dried before molding?

Drying often requires 3–6 hours at 150°C in a desiccant or vacuum dryer for typical as‑received pellets; some cold‑stored or regrind materials need longer. Verify using moisture measurement to avoid under‑ or over‑drying.

Can PEEK injection molding be used for medical implants?

Yes. PEEK grades with appropriate biocompatibility certification are used in medical implants. Medical molding requires validated processes, traceable materials, and controlled cleanroom conditions as needed for sterilization compatibility and regulatory compliance.

How to troubleshoot flow lines and short shots in PEEK parts?

Common fixes are increasing melt temperature slightly, raising injection speed or pressure, enlarging the gate, or optimizing venting. Ensure drying and check for cold spots in the hot runner or nozzle. Use incremental adjustments and document effects on part weight and appearance.

Does PEEK injection molding require special molds or machines?

Yes. Equipment must handle high melt and mold temperatures and elevated injection pressures. Hardened steel or coatings may be needed for reinforced compounds. Properly designed hot runner systems, tempering, and robust ejector systems are typical in production molds for PEEK.
