PVC Cable Glands: Essential Components for Safe and Reliable Electrical Installations

In the realm of electrical installations, ensuring a safe and secure connection for cables entering enclosures is paramount.   PVC Cable Gland  serve this essential function, acting as the interface between electrical cables and enclosures, securing the cable while providing protection against environmental influences. Made from polyvinyl chloride (PVC), these cable glands offer a cost-effective, durable, and efficient solution for safeguarding electrical systems in a wide range of industries.

This article delves into the various aspects of PVC cable glands, their benefits, types, and applications, providing in-depth insights into why they are widely preferred in electrical installations across the globe.

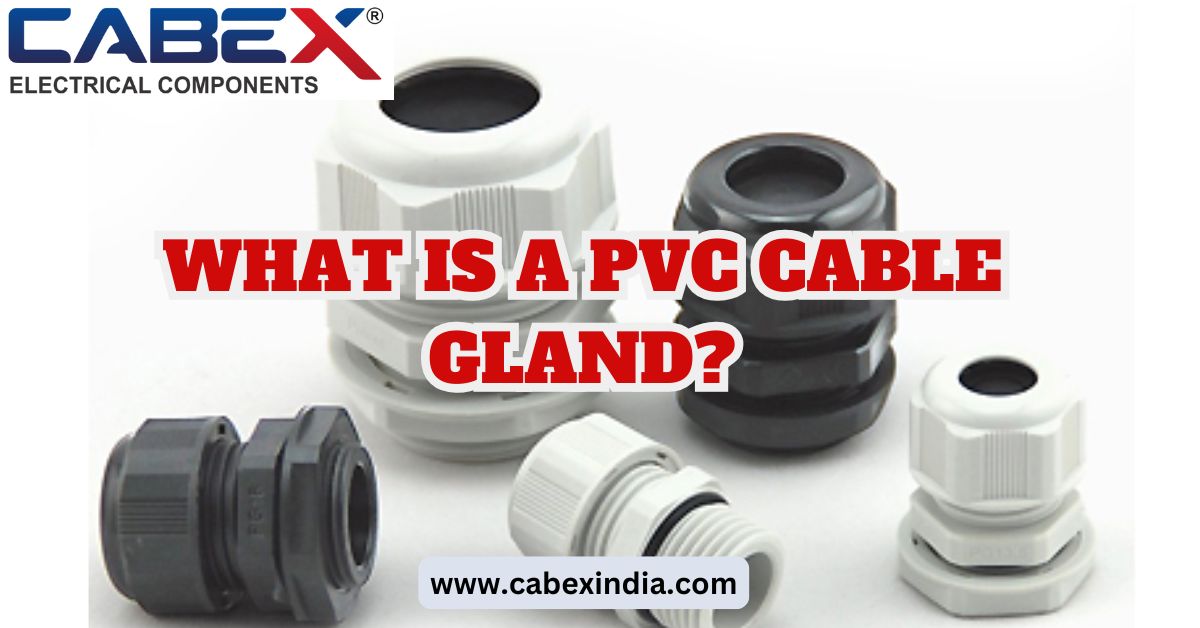

What Are PVC Cable Glands?

A PVC cable gland is a mechanical device used to secure the entry of cables into electrical enclosures. These glands provide strain relief, secure the cable, and most importantly, ensure that the cable remains insulated while preventing the ingress of harmful elements like moisture, dust, and chemicals. PVC material, due to its insulating and durable properties, makes these cable glands suitable for many industrial, commercial, and residential applications.

The primary function of a cable gland is to maintain the integrity of the connection between the electrical cable and the equipment to which it is attached. It is essential for preventing external contaminants from affecting the performance of the cable and the connected system.

Key Features of PVC Cable Glands

1. Durable Construction

PVC cable glands are made from high-quality polyvinyl chloride, which offers excellent mechanical strength and durability. This material ensures that the glands are resistant to wear and tear, corrosion, and impact, making them ideal for use in both indoor and outdoor installations.

2. Superior Sealing Properties

One of the standout features of PVC cable glands is their ability to create a robust seal around cables. This sealing function prevents moisture, dust, and other contaminants from entering the electrical enclosure, thus safeguarding sensitive electrical components. The glands are equipped with rubber gaskets or seals that enhance their sealing capabilities.

3. Resistance to Environmental Factors

PVC is naturally resistant to environmental stressors, including UV radiation, chemicals, and extreme temperatures. This makes PVC cable glands an excellent choice for environments where other materials might degrade or corrode over time, such as chemical plants, offshore facilities, or agricultural sectors.

4. Lightweight and Easy to Install

PVC cable glands are relatively lightweight compared to their metal counterparts, making them easier to handle and install. Their straightforward design ensures quick installation without the need for specialized tools or extensive expertise, reducing labor costs and installation time.

Different Types of PVC Cable Glands

PVC cable glands come in various types to accommodate different installation needs. These variations include designs for different cable sizes, protection levels, and environmental requirements. The primary types include:

1. Standard PVC Cable Glands

Standard PVC cable glands are versatile, offering reliable sealing and securing functions for most general-purpose electrical installations. They are typically used in industrial, commercial, and residential settings where environmental factors like moisture or dust are moderate.

2. IP68 PVC Cable Glands

An IP68-rated PVC cable gland is specifically designed to provide a higher level of protection against both dust and water ingress. These cable glands are ideal for outdoor installations, underwater equipment, or any scenario where the enclosure is exposed to water and extreme environmental conditions. The IP68 rating ensures the gland remains effective even when submerged in water, providing superior protection.

3. EMC PVC Cable Glands

Electromagnetic Compatibility (EMC) PVC cable glands are used in installations where protection against electromagnetic interference (EMI) is crucial. These glands come equipped with specialized shields that help prevent electrical noise from affecting sensitive equipment. EMC cable glands are widely used in the telecommunications and data industries, where the integrity of signals must be preserved.

4. Double Compression PVC Cable Glands

These types of PVC cable glands feature a double compression mechanism that provides enhanced sealing and strain relief. Double compression cable glands are designed to secure cables firmly, especially in applications where high levels of mechanical stress or vibration are expected. They are commonly used in heavy machinery, power generation plants, and other industrial applications.

Applications of PVC Cable Glands

Due to their versatility and cost-effectiveness, PVC cable glands are used in a wide range of applications across various industries. Here are some of the most common uses:

1. Electrical Distribution and Control Panels

PVC cable glands are essential for securing and protecting cables entering control panels and electrical enclosures. These glands ensure that cables remain intact, preventing any damage to the connections and reducing the risk of electrical faults caused by environmental factors.

2. Telecommunications Infrastructure

In telecommunications, PVC cable glands are used to safeguard data cables and electrical connections in cabinets, towers, and underground installations. The glands' ability to protect against moisture and dust ensures that the transmission of data remains uninterrupted and reliable.

3. Offshore and Marine Applications

Offshore oil rigs, ships, and other marine structures are exposed to harsh environmental conditions such as saltwater, high humidity, and temperature fluctuations. PVC cable glands offer excellent protection against corrosion, ensuring that electrical systems continue to function safely and efficiently in these environments.

4. Industrial and Manufacturing Settings

In industrial settings, electrical systems often face harsh conditions, including exposure to chemicals, oils, dust, and fluctuating temperatures. PVC cable glands are ideal for securing cables and providing a reliable seal, ensuring that equipment remains functional and safe from external elements.

5. Lighting Systems and HVAC Installations

In lighting systems and HVAC (heating, ventilation, and air conditioning) systems, PVC cable glands play a vital role in securing electrical cables and ensuring they are sealed properly. This prevents damage to cables and helps in maintaining system efficiency over time.

Advantages of PVC Cable Glands

1. High Resistance to Corrosion

PVC cable glands have superior resistance to corrosion, unlike their metal counterparts. This makes them the ideal choice for use in environments prone to chemical exposure or high humidity, such as manufacturing plants, water treatment facilities, and offshore applications.

2. Cost-Effective Solution

One of the key reasons why PVC cable glands are preferred is their affordability. They offer excellent protection and performance at a fraction of the cost of metal glands, making them the go-to option for many electrical installations where budget constraints exist.

3. Enhanced Safety and Protection

The sealing properties of PVC cable glands ensure that cables are effectively protected from moisture, dirt, and other contaminants. This significantly reduces the risk of electrical failures, short circuits, and fires, thus improving overall system safety.

4. Customizable for Specific Needs

PVC cable glands come in a wide variety of sizes, designs, and configurations to accommodate different types of cables and electrical installations. Whether you need glands for simple, general-purpose applications or more complex, high-protection requirements, there is a PVC gland designed to meet your needs.

How to Choose the Right PVC Cable Gland

Choosing the right PVC cable gland involves considering the following factors:

Cable Size: Ensure the gland is compatible with the diameter of the cable for a secure fit.

Environmental Conditions: Assess whether the gland will be used indoors or outdoors, and whether it needs to withstand extreme temperatures, moisture, or dust.

Ingress Protection Rating: For high-risk environments, choose a PVC cable gland with a higher IP rating (e.g., IP66, IP68) to ensure better sealing.

Mechanical Strain: If the installation will experience mechanical stress or vibration, opt for glands with enhanced compression mechanisms (e.g., double compression glands).

Compliance with Standards: Ensure the cable gland adheres to industry standards such as UL, IEC, or BS certifications to guarantee safety and performance.

For more detailed information and to explore our full range of PVC cable glands, visit Cabex India.
