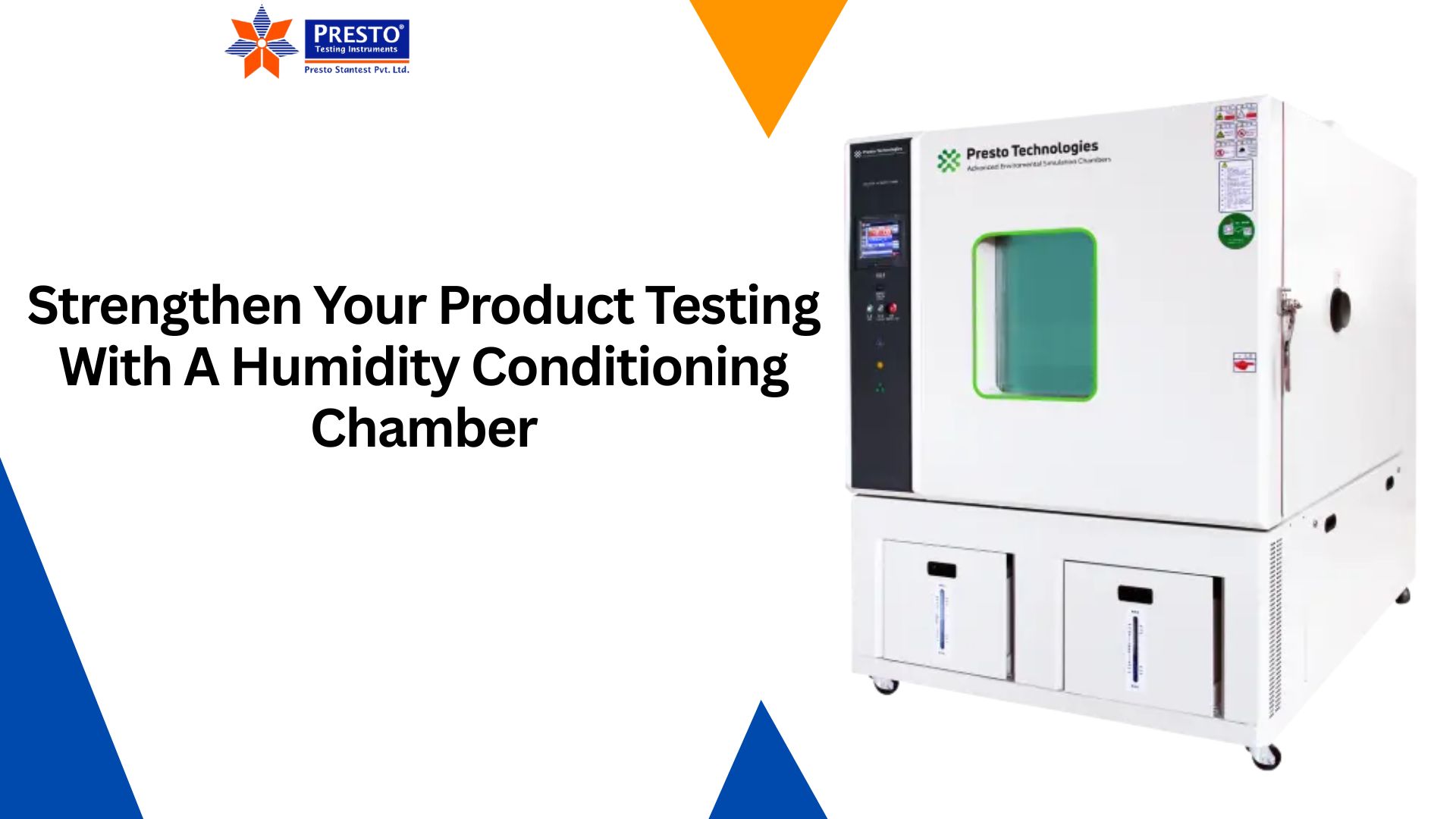

Practical Guide: Strengthen Product Testing with a Humidity Conditioning Chamber

Using a humidity conditioning chamber is a reliable way to reveal moisture-related failure modes before products reach customers. This guide explains what a humidity conditioning chamber does, how it differs from other environmental test systems, and practical steps to integrate humidity testing into a product validation plan.

How a humidity conditioning chamber strengthens product testing

What a humidity conditioning chamber does

A humidity conditioning chamber controls relative humidity (RH) and temperature to expose samples to defined moisture environments. Typical functions include steady-state humidification, humidity ramping, and humidity cycling test profiles that pair temperature changes with controlled RH. These chambers accelerate corrosion, insulation breakdown, mold growth, and dimensional changes that emerge only after prolonged exposure in the field.

Key terms and related equipment

Common synonyms and related equipment include climate chamber, environmental test chamber, and temperature and humidity chamber. Important measurement terms: relative humidity (RH), dew point, humidity uniformity, and chamber recovery time. Understanding these terms helps translate lab conditions to real-world risk.

Common humidity test types and when to use them

Humidity soak (damp heat)

A damp heat test holds a constant high RH (often 85%) and elevated temperature (e.g., 40°C) to accelerate moisture ingress and corrosion. Use this for coatings, connectors, and PCBs.

Humidity cycling test

Humidity cycling test profiles alternate RH and temperature to stress seals, coatings, and assemblies that see daily or seasonal swings. This reveals failures from condensation and expansion/contraction. "Humidity cycling test" is a common secondary search phrase for test engineers planning these profiles.

Choosing the right humidity conditioning chamber

CHAMBER checklist for selection and setup

• Capacity: Choose chamber size for fixtures and throughput.
• Humidity range: Confirm controller supports required RH and dew point ranges.
• Accuracy & calibration: Verify traceable sensors and calibration intervals.
• Monitoring & logging: Ensure continuous data logging and alarms.
• Build quality: Look for good insulation, uniform airflow, and corrosion-resistant interiors.
• Energy & recovery: Faster recovery reduces test cycle time—consider compressor and heating design.
• Repeatability: Confirm the chamber can reproduce profiles within specified tolerances.

Standards and calibration

Follow recognized standards when defining pass/fail criteria. For corrosion and coating tests, ISO 6270 provides standardized humidity test procedures and acceptance criteria. Calibration of RH sensors and temperature probes should be traceable to national metrology institutes and performed according to an internal schedule to maintain confidence in results.

Implementing humidity testing: practical steps

1. Define failure modes and map which ones are moisture-related (corrosion, delamination, insulation failure, growth of biological contaminants).
2. Select a test profile (steady-state damp heat, humidity cycling, condensation) that accelerates the relevant mechanisms.
3. Prepare and instrument test specimens with representative assemblies, monitoring probes, and control samples to isolate failure causes.
4. Run an initial pilot test to verify chamber uniformity and recovery times; adjust airflow and fixture layout as needed.
5. Execute the formal test with continuous logging; document environmental setpoints, deviations, and any operator interventions.
6. Analyze failures with root-cause techniques (visual inspection, cross-sectioning, electrical tests) and update design or materials accordingly.

Short real-world example

A consumer electronics supplier saw intermittent corrosion on internal contacts after a humid summer. A humidity conditioning chamber test used 85% RH at 40°C for 10 days, followed by a 24-hour humidity cycling test. The test reproduced contact corrosion within 6 days. Analysis showed a conformal coating gap around the connector; a revised coating process eliminated failures in subsequent batches. This scenario shows how targeted humidity testing identifies manufacturing and design fixes before field returns increase.

Practical tips for reliable humidity testing

• Place temperature and RH sensors at representative locations, including near expected failure hot spots, not just at the controller probe.
• Run blank controls (known-good samples) with every batch to detect chamber drift or contamination.
• Document fixtures and part orientation—small changes in airflow can alter condensation patterns and results.
• Use salt spray or corrosion-specific tests only when corrosion is the focus; humidity chambers stress moisture-related mechanisms without corrosive salts.

Trade-offs and common mistakes

• Trade-off: speed vs. realism. Higher temperature and RH accelerate failures but can create unrealistic chemical reactions. Balance acceleration with mechanism fidelity.
• Trade-off: chamber cost vs. capability. Compact benchtop chambers are cheaper but may lack uniformity for large assemblies.
• Common mistake: Treating RH alone as the full story. Dew point, condensation potential, and material interactions also matter.
• Common mistake: Skipping regular sensor calibration—data without traceable calibration can mislead decisions.

Core cluster questions

1. How does a humidity conditioning chamber differ from a general environmental test chamber?
2. What are standard humidity test profiles for electronics reliability?
3. How often should humidity chamber sensors be calibrated?
4. What fixture design considerations improve humidity test uniformity?
5. How can humidity test results be correlated to expected field life?

FAQ

How to choose the right humidity conditioning chamber for product testing?

Match chamber capacity to fixtures, confirm the RH and temperature range needed, check sensor accuracy and calibration procedures, and require data logging. Consider recovery time and airflow uniformity for repeatable results.

What is the difference between an environmental test chamber and a humidity conditioning chamber?

"Environmental test chamber" is a broad category that may include temperature-only, thermal shock, and combined temperature/humidity chambers. A humidity conditioning chamber specifically emphasizes precise RH control and dew point management for moisture-focused testing.

How often should RH and temperature sensors be calibrated?

Calibration frequency depends on use and risk but common practice is every 6–12 months, or after any maintenance or unexplained test deviations. Follow internal quality and accreditation requirements for traceability.

Can humidity testing replace field testing?

Humidity testing accelerates and isolates moisture-related failure mechanisms but should complement field testing. Use chamber tests to reproduce and root-cause failures, then validate fixes with targeted field trials.

What are common signs that a humidity test profile needs adjustment?

Non-reproducible failures, unexpected condensation locations, or controller alarms indicate adjustments are needed. Run a pilot with additional sensors to identify gradients and modify airflow or fixture placement accordingly.
