Suspension System Integration in RTG Crane Structures

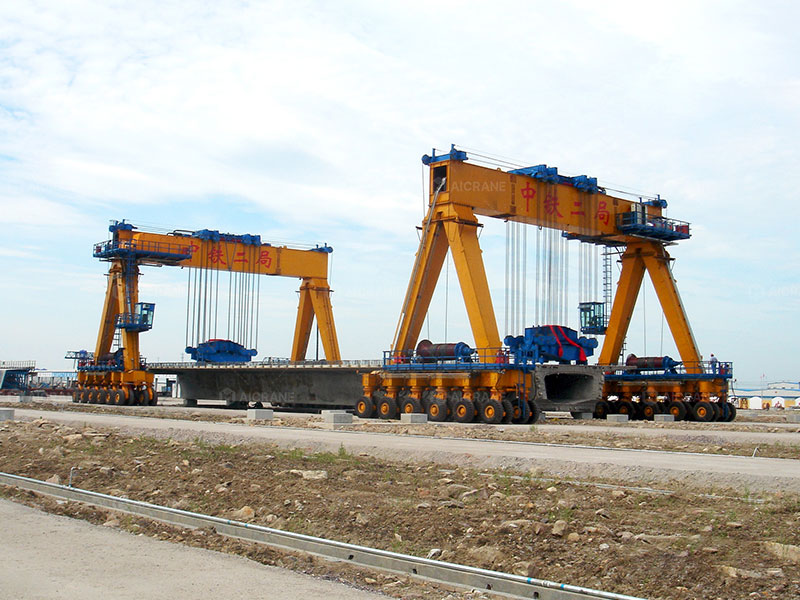

Rubber tyred gantry (RTG) cranes play a critical role in container terminals and logistics yards, offering high mobility, flexible operation, and efficient container stacking. Unlike rail-mounted gantry (RMG) cranes, RTGs rely on large rubber tyres for movement, often over uneven or imperfect ground surfaces. One of the most important structural considerations for RTG cranes is the integration of a robust suspension system, which ensures optimal load distribution, smooth crane movement, and structural stability. This article delves into the importance, design considerations, and engineering solutions involved in integrating suspension systems in RTG crane structures.

Why Suspension Matters in RTG Cranes

RTG cranes are equipped with multiple wheels - typically 8, 16, or more - mounted across bogies under each leg of the crane. As these rubber tyred gantry cranes carry heavy loads and operate over varied terrain, the suspension system serves multiple purposes:

Distributes vertical loads evenly across all tyres.

Enhances ground contact to avoid overloading specific wheels.

Reduces structural stress due to dynamic forces during motion.

Compensates for ground irregularities and slope variations.

Improves crane stability while traveling or operating under load.

Without a well-designed suspension system, uneven load distribution can lead to excessive tyre wear, structural fatigue, reduced service life of mechanical components, and potential crane instability.

Key Design Objectives for Suspension Integration

The integration of a suspension system into an RTG crane's structure must fulfill several design goals:

1. Load Equalization

Each wheel must carry an equal or appropriately distributed portion of the total load. Structural flexibility, combined with mechanical or hydraulic suspension elements, helps achieve this.

2. Adaptability to Terrain

Suspension systems must allow for ground-following behavior, adapting to surface irregularities without tilting or overloading structural elements.

3. Vibration Dampening

A suspension system should absorb and dissipate vibrations from crane travel or lifting operations to protect both structural components and electrical systems.

4. Frame Protection

Proper suspension reduces bending moments and twisting forces transmitted to the crane’s main frame, preserving its structural integrity over time.

Types of Suspension Systems in RTG Cranes

Several suspension system types are used in RTG cranes, depending on crane size, weight, and operational demands.

1. Mechanical Equalization Systems

These use levers, springs, and linkages to maintain load balance. A common design includes:

Equalizing beams or pivot arms connected to wheel pairs.

Axles mounted on flexible mechanical frames.

Springs to buffer vertical loads.

This system is relatively simple and reliable but may not respond quickly to fast-changing loads or severe ground variations.

2. Hydraulic Suspension Systems

Hydraulic systems offer active or semi-active load equalization using cylinders and fluid dynamics:

Hydraulic jacks mounted at each wheel or axle point.

Centralized or distributed pressure control.

Better adaptability to high dynamic loads and changing terrain.

Hydraulic systems are more precise and suitable for high-capacity RTG cranes operating under variable conditions.

3. Pneumatic Suspension Systems

Though less common, some RTG cranes incorporate pneumatic (air-based) suspension with air springs and dampers:

Smooth load transition and dampening.

Good for operations requiring minimal vibration transfer.

More maintenance-intensive than mechanical systems.

Suspension Design Challenges and Solutions

1. Structural Load Path Complexity

The suspension system affects how forces travel through the crane structure. Engineers must analyze:

Vertical load paths from the trolley and hoist to wheels.

Lateral and longitudinal loads during crane travel.

Torsional effects on the main girder and legs.

Solution: Finite Element Analysis (FEA) is widely used to simulate how suspension systems interact with crane structures and identify stress concentration points.

2. Crane Steering Integration

Many modern RTGs have multiple steering modes (e.g., 90°, 45°, crab steering). These steering systems must work seamlessly with suspension components.

Solution: Articulated bogie designs and steering-suspension co-engineering ensure steering precision while maintaining suspension functionality.

3. Dynamic Stability

During acceleration, deceleration, and cornering, dynamic forces can shift load distribution unpredictably.

Solution: Incorporating lateral dampers and stabilizers in the suspension system helps mitigate sway and roll effects.

4. Maintenance and Accessibility

Suspension components are subject to wear and require regular inspection.

Solution: Designing modular and easily accessible suspension assemblies allows for quick maintenance and part replacement, reducing crane downtime.

Structural Reinforcements for Suspension Integration

The crane’s steel structure must support suspension components while maintaining overall rigidity:

Reinforced Bogie Frames: Strong box sections and gussets handle concentrated stresses.

Leg-Bogie Joint Design: Pin connections or flexible couplings allow limited rotational movement without frame distortion.

Vibration Isolation Mounts: Rubber or polymer pads can be used between suspension elements and the main structure to prevent vibration transmission.

Impact on Tyre Performance and Crane Longevity

Suspension systems greatly affect tyre life:

Even load distribution reduces localized wear.

Dampened shock loads prevent tyre deformation.

Better ground contact minimizes slippage and rolling resistance.

As a result, the crane enjoys longer operational life, lower maintenance costs, and improved safety.

Digital Monitoring and Smart Suspension Systems

With the rise of smart crane systems, some RTGs now feature sensors and real-time monitoring of suspension behavior:

Load sensors at each wheel to detect imbalance.

Hydraulic pressure sensors in active suspension systems.

Automated alerts when uneven loading or suspension failure is detected.

These systems help prevent accidents and ensure proactive maintenance.

Conclusion

Suspension system integration in RTG crane structures is more than just a comfort feature—it is a critical structural and operational necessity. From maintaining structural health and tyre life to ensuring crane stability and efficient operation on rough terrain, the right suspension system contributes to overall performance and safety.

When designing or purchasing an RTG crane, stakeholders must evaluate the suspension system in terms of its compatibility with the crane structure, type of operation, terrain conditions, and maintenance requirements. A properly integrated suspension system not only ensures reliable crane movement but also extends the life of the crane and reduces long-term operational costs.
