What is the Function of End Cap?

Written by vsanket  »  Updated on: January 24th, 2025

In piping systems, the components used are just as vital as the pipes themselves. One such indispensable component is the pipe end cap. Pipe end caps are essential in industries ranging from construction to petrochemicals, ensuring the system remains secure, functional, and efficient. This blog explores the primary functions of pipe end caps, their importance, types, materials, and applications.

1. What is a Pipe End Cap?

A pipe end cap is a specially designed fitting used to close the end of a pipe, preventing the flow of liquid or gas and protecting the pipe from external elements. It acts as a barrier that seals the pipe system, making it suitable for temporary or permanent closure. End caps are often used in industries where pipes are exposed to high pressures, extreme temperatures, or corrosive substances.

2. Functions of Pipe End Caps

a. Sealing the Pipe Ends

The primary function of a pipe end cap is to seal the open end of a pipe. This prevents leakage of fluids or gases and maintains the integrity of the piping system.

b. Protecting the Pipe

Pipe end caps shield the open ends of pipes from contaminants like dirt, moisture, and debris. In construction or transportation, they prevent foreign materials from entering the pipe.

c. Temporary Closure

In industries like oil and gas, pipeline sections are often left unfinished temporarily. Pipe end caps are used to provide a temporary seal until the system is ready for final installation.

d. Pressure Resistance

Pipe end caps are designed to withstand internal pressures in the pipe. This ensures that when a system is pressurized, the end caps prevent any leakage or burst.

e. Supporting Pressure Testing

Pipe end caps are widely used during pressure testing of pipelines. By sealing the pipe ends, they help assess the strength and leak resistance of the system under controlled pressure conditions.

f. Aesthetic Finishing

Apart from functionality, pipe end caps contribute to the visual appeal of a piping system by giving it a neat, finished look.

3. Types of Pipe End Caps

Pipe end caps come in various designs to suit different requirements:

a. Threaded End Caps

These caps are screwed onto the threaded ends of pipes. They are commonly used in applications requiring easy removal and reattachment.

b. Welded End Caps

Welded end caps are permanently attached to the pipe, providing a secure seal for applications requiring high pressure and corrosion resistance.

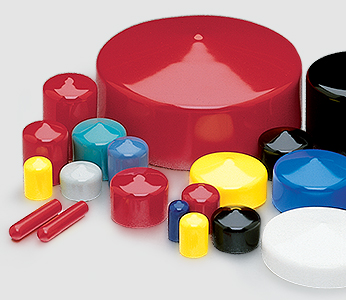

c. Push-On End Caps

Made from flexible materials like rubber or plastic, these are used for temporary closures, particularly in construction and transportation.

d. Domed End Caps

These caps have a domed shape to handle high-pressure environments. They are often used in industries like oil and gas.

e. Flat End Caps

Flat end caps are primarily used for low-pressure applications or where a simple seal is required.

4. Materials Used for Pipe End Caps

The choice of material for pipe end caps depends on the application and the environment in which they are used. Common materials include:

a. Stainless Steel

Stainless steel pipe end caps are ideal for high-pressure and corrosive environments due to their durability and resistance to rust.

b. Carbon Steel

Carbon steel caps are widely used in applications requiring strength and moderate resistance to corrosion.

c. Plastic

Plastic pipe end caps are cost-effective and used in low-pressure and temporary applications.

d. Aluminum

Lightweight and corrosion-resistant, aluminum end caps are suitable for specific industrial and construction uses.

e. Rubber

Rubber caps provide a flexible seal and are used for temporary closures or to protect pipe ends during storage and transport.

5. Advantages of Using Pipe End Caps

Enhanced Durability: By sealing the pipe ends, caps protect them from environmental damage, increasing the lifespan of the system.

Leak Prevention: Pipe end caps ensure there is no leakage, maintaining the system's efficiency.

Cost-Effectiveness: They prevent damage to pipes, reducing maintenance and repair costs.

Versatility: Available in various materials and designs, pipe end caps suit a wide range of industrial applications.

Safety: They prevent accidental injuries caused by open pipe ends in industrial environments.

6. Applications of Pipe End Caps

a. Oil and Gas Industry

In pipelines transporting oil or gas, pipe end caps are used for sealing ends during construction or maintenance. Their resistance to high pressure and corrosion makes them indispensable.

b. Construction Industry

Pipe end caps protect pipe ends from damage during construction, ensuring they are ready for installation without contamination.

c. Chemical Industry

In chemical plants, where pipes carry corrosive substances, end caps made from corrosion-resistant materials like stainless steel are used to seal and protect the system.

d. Plumbing Systems

Pipe end caps are common in residential and commercial plumbing systems to close unused pipe openings or prepare sections for future use.

e. Food and Beverage Industry

In industries where hygiene is critical, stainless steel end caps are used to seal and protect piping systems that transport food-grade liquids or gases.

f. Transportation and Storage

End caps are used to seal pipes during transportation or storage to prevent damage and contamination.

7. Selecting the Right Pipe End Caps

When choosing pipe end caps, consider the following factors:

Material Compatibility: Ensure the material matches the pipe and can withstand the operating environment. For example, stainless steel caps are ideal for corrosive environments, while plastic caps may suffice for temporary use.

Size and Fit: The cap must fit the pipe end securely to provide a proper seal.

Pressure and Temperature Resistance: For high-pressure or high-temperature systems, select caps designed to handle such conditions.

Ease of Installation: Depending on the application, choose between threaded, push-on, or welded end caps.

8. Pipe End Caps and Industry Standards

Pipe end caps are manufactured according to various international standards, ensuring quality and performance. Common standards include:

ANSI/ASME B16.9: Covers factory-made wrought buttwelding fittings, including end caps.

ASTM Standards: Specify material properties for metal and plastic end caps.

ISO Standards: Define specifications for pipe end fittings and their applications.

9. Innovations in Pipe End Caps

The demand for more durable and efficient pipe end caps has led to innovations such as:

Advanced Coatings: Caps with anti-corrosion and anti-fouling coatings for extended service life.

Composite Materials: Lightweight, high-strength caps made from composite materials for specialized applications.

Customized Designs: Tailored solutions for unique industrial requirements.

Conclusion

Pipe end caps are critical components in ensuring the efficiency, safety, and longevity of piping systems. From sealing pipe ends to providing protection and supporting pressure testing, their roles are indispensable across industries. Whether you need temporary closure during construction or a permanent seal in a high-pressure system, choosing the right pipe end cap is crucial.

Working with trusted pipe end caps suppliers ensures access to high-quality products tailored to your specific needs. By understanding the functions, types, and materials of pipe end caps, you can optimize the performance and reliability of your piping systems.
