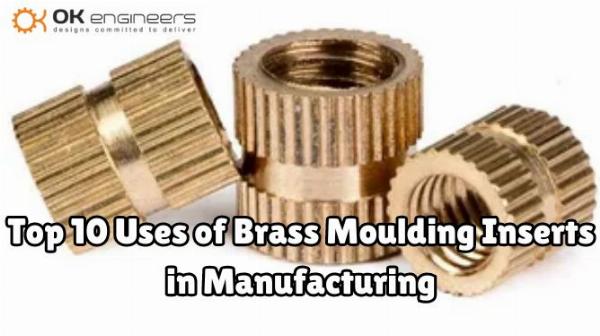

10 Practical Manufacturing Applications for Brass Moulding Inserts

Introduction: Why manufacturers choose brass inserts

The most common questions about fastening small assemblies start with durability and repeatable threads inside plastics. This article explains brass moulding insert uses across manufacturing, from threaded connections to electrical grounding. The goal is practical: explain where brass inserts make sense, how to install them, design trade-offs, and a checklist for specifying the right insert.

Detected intent: Informational

brass moulding insert uses: 10 manufacturing applications

1. Threaded fastenings in thermoplastics: Inserts provide reliable metal threads where direct tapping would strip. Typical in consumer electronics, housings, and appliance parts.
2. Insert moulding (overmoulding): Inserts placed in the mould are encapsulated during injection moulding to create rigid, load-bearing anchor points.
3. Heat-set insertion for thin walls: Heat-set brass inserts melt surrounding polymer slightly to form a strong mechanical bond — common in small enclosures and 3D-printed parts.
4. Vibration-resistant joints: Knurled or hexagonal brass inserts resist rotation and backing out under vibration in automotive and industrial components.
5. Serviceable assemblies: Replaceable metal threads make maintenance and repeated disassembly feasible for products that require periodic servicing.
6. Electrical grounding and contact points: Brass’s conductivity and corrosion resistance allow inserts to double as grounding or reference contacts in electrical housings.
7. Alignment and registration pins: Precision-machined brass inserts can act as locating features during assembly or fixturing.
8. High-temperature tolerance: Brass inserts maintain structural integrity where polymer-only solutions might creep at elevated temperatures (choose appropriate polymer pairings).
9. Sealing and pressure joints: When combined with design features, inserts can support mechanical seals in low-pressure fluid applications.
10. Prototyping to production scale-up: Using brass inserts in prototype plastics (including 3D prints) enables testing of real threaded interfaces before committing to production tooling.

How to install brass inserts in plastic

Installation method depends on the insert type and substrate. Common approaches include:

• Heat-set: Use controlled heating tools (soldering iron with proper tip, infrared) at the recommended temperature and insertion speed to avoid overheating the polymer.
• Ultrasonic insertion: Ultrasonic energy melts a small volume of polymer for fast, clean insertion—common for high-volume automated lines.
• Press-fit/kernalised: For slightly oversized knurled inserts, press-fitting can work in rigid thermoplastics or pre-heated holes.
• Insert moulding: Place inserts in the mould and perform injection overmoulding according to mould-flow and gating design.

BRASS Checklist: a model for specifying inserts

Use the BRASS Checklist when choosing an insert type and process:

• Base material: Identify substrate polymer, wall thickness, and glass fill.
• Retention type: Knurl, hex, screw, or barbed — based on torque and pull-out needs.
• Alloy selection: Choose brass grade for corrosion resistance and conductivity requirements.
• Size & placement: Specify hole diameters, clearances, and spacing to avoid stress concentration.
• Surface finish & plating: Decide if plating (nickel, tin) is needed for electrical contact or corrosion protection.

Brass insert design considerations

Key design variables include wall thickness, hole tolerance, recess depth, and expected torque. For threaded loads, use pull-out and spin-out calculations; for vibration environments, prefer knurled or hex designs. Match insert length to engagement depth and ensure enough plastic volume around the insert to distribute stresses. For material guidance on brass alloys and properties, consult the Copper Development Association for standard alloy data and corrosion performance: copper.org.

Real-world example: electronics enclosure

A supplier producing a handheld meter moved from self-tapping screws in ABS to heat-set brass inserts. Result: threaded life increased from ~10 cycles to over 100 cycles, and field returns for stripped threads dropped 85%. Design changes included increasing boss diameter by 1.5 mm and selecting a low-profile knurled heat-set insert to control rotation under torque.

Practical tips (actionable)

• Pre-calc pull-out values using supplier data and test coupons that match wall thickness and polymer grade.
• Control insertion temperature and dwell time for heat-set inserts — too hot degrades polymer, too cold yields poor bonding.
• Design bosses with at least 1.5× the insert diameter in radial plastic thickness to prevent cracking under load.
• For high-volume runs, evaluate ultrasonic insertion equipment to speed cycle time and improve consistency.
• Use test parts from the intended production process (injection, 3D print) rather than idealized coupons for torque and pull tests.

Common mistakes and trade-offs

Trade-offs arise between insertion method, cost, and product lifecycle. Common mistakes include:

• Undersized bosses leading to pull-out or cracking under torque.
• Overheating during heat-set insertion that causes whitening or embrittlement of nearby polymer.
• Using the wrong knurl type for a soft polymer, which can allow insert rotation.
• Not accounting for coefficient of thermal expansion differences in high-temperature applications, which can loosen the insert.

Core cluster questions

• What insertion methods are best for brass inserts in thermoplastics?
• How to calculate pull-out strength for a brass insert in ABS?
• When is insert moulding preferable to post-mould insertion?
• Which brass alloy is best for electrical contact inserts?
• How to design boss geometry for heat-set inserts in 3D-printed parts?

Frequently asked questions

What are common brass moulding insert uses?

Common uses include creating durable metal threads in plastics, overmoulded anchor points, vibration-resistant joints, electrical contacts, and enabling serviceable assemblies that require repeated disassembly.

How long do brass inserts last compared with plastic threads?

Brass inserts typically last many more mating cycles than plastic threads; expected life depends on thread size, mating screw material, and applied torque, but increases of 5–10× are common versus tapped plastic threads.

Can brass inserts be used in 3D-printed parts?

Yes. Heat-set or press-fit brass inserts are often used in fused filament fabrication (FFF) parts to provide reliable threads. Use proper insertion temperature and test on printed coupons to validate strength.

Is plating required on brass inserts for conductivity or corrosion resistance?

Plating (nickel, tin) can improve corrosion resistance and surface conductivity for electrical contacts, but it adds cost. Specify plating only when environmental or electrical requirements demand it.

How to install brass inserts in plastic without damaging the part?

Use controlled-temperature tools for heat-set insertion, select proper insertion speed, consider ultrasonic equipment for automation, and perform trial inserts on sample molded parts to dial in process parameters.
