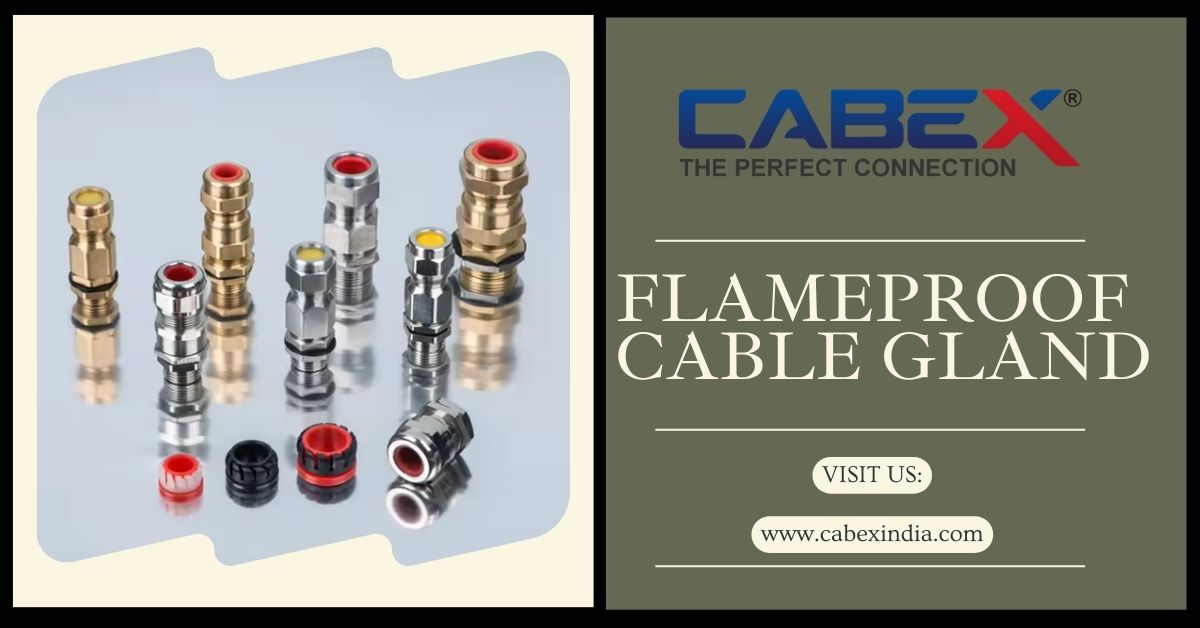

Comprehensive Guide to Flameproof Cable Glands

In industries where safety and compliance are of utmost importance, the selection of appropriate electrical components plays a crucial role in ensuring protection against hazardous conditions. One such essential component is the Flameproof Cable Gland, designed to provide secure cable termination in explosive environments. These glands serve as a vital safety feature in hazardous areas by preventing flame propagation, ensuring the integrity of electrical systems in industries such as oil & gas, petrochemicals, mining, and manufacturing.

What is a Flameproof Cable Gland?

A flameproof cable gland is a type of explosion-proof gland designed to prevent the ignition of hazardous gases and vapors. It is specifically engineered to contain an explosion within an electrical enclosure, preventing it from spreading to the external atmosphere. These glands are essential for installations in environments classified under Zone 1 and Zone 2 (for gases) and Zone 21 and Zone 22 (for dust).

Flameproof glands are manufactured in compliance with IEC, ATEX, and IECEx standards, ensuring that they meet stringent global safety regulations for hazardous areas.

Key Features of Flameproof Cable Glands

Explosion Containment – Designed to prevent internal sparks or flames from escaping the enclosure.

Ingress Protection (IP Rating) – Offers high resistance against dust, moisture, and water ingress.

Corrosion Resistance – Made from durable materials such as stainless steel, brass, and nickel-plated brass.

Temperature Resistance – Can withstand extreme environmental conditions.

Compliance with Safety Standards – Certified under IEC 60079, ATEX 94/9/EC, and IS/IEC 60079.

Strain Relief – Provides mechanical support to cables, reducing stress at entry points.

Types of Flameproof Cable Glands

Flameproof cable glands are classified based on their construction, function, and application in hazardous environments:

1. Ex d Flameproof Cable Glands

Designed for use in Zone 1 and Zone 2, these glands are built to contain an explosion within an enclosure. They are commonly used in industries where flammable gases and vapors are present.

2. Ex e Increased Safety Cable Glands

Although not flameproof in themselves, these glands provide an increased level of safety by preventing the formation of sparks or excessive heat. They are often used alongside Ex d enclosures.

3. Ex nR Restricted Breathing Cable Glands

Used in Zone 2 hazardous areas, these glands restrict the entry of flammable gases into the enclosure, reducing the risk of ignition.

4. Dust Ignition Proof Cable Glands (Ex tD/Ex tb)

Specifically designed for Zone 21 and Zone 22 applications, these glands prevent the ingress of combustible dust, ensuring safety in dusty environments.

Materials Used in Flameproof Cable Glands

The choice of material is a crucial factor in selecting the right flameproof cable gland for hazardous environments. The most commonly used materials include:

Brass – High mechanical strength and resistance to corrosion.

Nickel-Plated Brass – Provides additional corrosion resistance.

Stainless Steel (SS 304/SS 316) – Ideal for marine and offshore applications due to superior resistance to harsh environments.

Aluminum Alloy – Lightweight and cost-effective, but less durable than steel.

Polyamide (Nylon) – Suitable for non-metallic applications with moderate hazardous exposure.

Applications of Flameproof Cable Glands

Flameproof cable glands are widely used in industries where flammable gases, vapors, and dust are present. Some of the key sectors include:

Oil & Gas Refineries – Ensures secure cable termination in petrochemical processing plants.

Chemical Industries – Provides explosion-proof protection in hazardous manufacturing zones.

Mining Operations – Prevents gas and dust ignition in underground and surface mining activities.

Power Plants – Essential for electrical safety in high-risk power generation facilities.

Pharmaceutical Manufacturing – Used in controlled environments with volatile substances.

Marine & Offshore Installations – Offers high corrosion resistance for maritime electrical installations.

Compliance Standards for Flameproof Cable Glands

Flameproof cable glands must adhere to international safety and performance standards to ensure reliability in hazardous locations. The most important standards include:

IEC 60079-0 – General requirements for explosion-proof equipment.

IEC 60079-1 – Standards for flameproof enclosures (Ex d).

IEC 60079-7 – Covers increased safety (Ex e) protection.

IEC 60079-15 – Defines standards for restricted breathing (Ex nR) protection.

IEC 60079-31 – Addresses protection against dust ignition (Ex tD/Ex tb).

ATEX Directive 2014/34/EU – Ensures compliance for European hazardous environments.

How to Select the Right Flameproof Cable Gland?

Choosing the correct flameproof cable gland depends on several factors:

Hazardous Area Classification – Determine whether the location falls under Zone 1, Zone 2, Zone 21, or Zone 22.

Cable Type – Consider whether the installation requires armored or unarmored cables.

Ingress Protection (IP Rating) – Ensure proper sealing against dust and moisture.

Operating Temperature Range – Check if the gland can withstand extreme hot or cold conditions.

Material Selection – Choose the appropriate brass, stainless steel, or polyamide gland based on environmental exposure.

Thread Type & Size – Ensure compatibility with metric, NPT, BSP, or PG threads used in electrical enclosures.

Installation Best Practices for Flameproof Cable Glands

Proper installation is crucial for ensuring optimal performance and safety. Here are some key best practices:

Follow Manufacturer Guidelines – Adhere to the provided installation manual for correct procedures.

Ensure Correct Torque Levels – Over-tightening or under-tightening can lead to improper sealing.

Use Proper Seals & Washers – To maintain the required IP and Ex protection ratings.

Regular Inspection & Maintenance – Check for signs of corrosion, wear, and loose fittings.

Verify Certifications – Ensure that all components meet the necessary IECEx, ATEX, and other industry standards.

Conclusion

Flameproof cable glands play an indispensable role in ensuring electrical safety in hazardous environments. By selecting the appropriate type, material, and compliance-certified gland, industries can mitigate explosion risks and maintain safe operations. With stringent adherence to installation and maintenance best practices, flameproof cable glands ensure long-term reliability in industrial applications.
