Cutting Tools Measurement System: Ensuring Precision in Modern Manufacturing

In manufacturing, everyone talks about precision, quality, standards… but in real shop-floor conditions, the thing that silently decides everything is the cutting tool. If the tool is not accurate, nothing else will be. The machine can be the best CNC in the world, but still the output will go wrong if the tool geometry is slightly off.

That’s why nowadays industries are slowly shifting towards proper Cutting Tools Measurement System setups instead of depending only on manual checking or operator experience.

It may sound like a small step, but in reality it changes the whole production quality.

Why people are suddenly so serious about cutting tool checking

Earlier, many workshops used to check tools visually or with basic gauges. It was “good enough” for low precision jobs. But now things are different. Tolerances are tight, production speed is high, and rejection cost is also high.

So companies started realizing that even a small deviation in tool angle, edge radius, or diameter can spoil full batch of components.

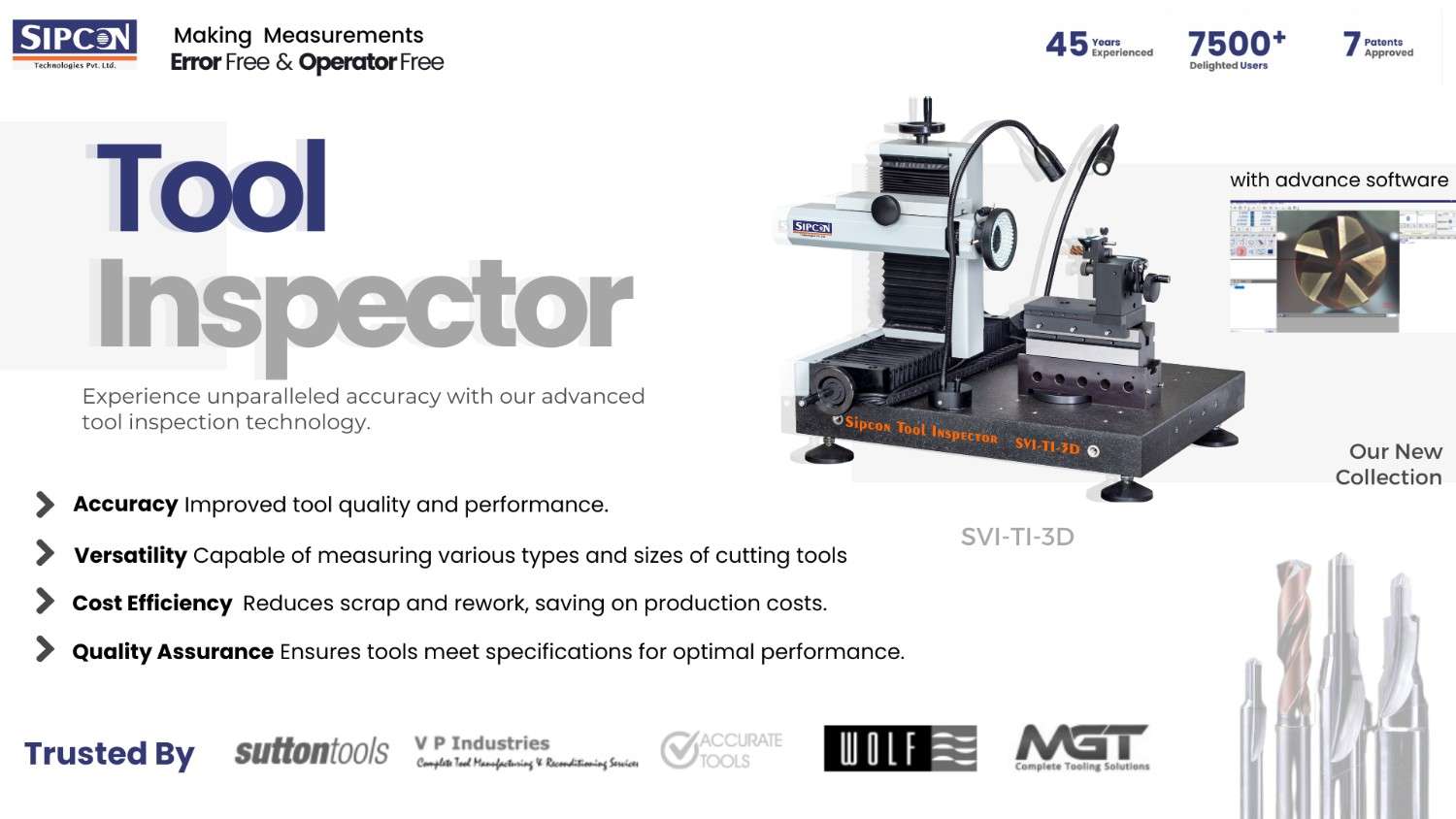

This is where a proper Measurement Machine For Cutting Tool becomes very useful. It is not just a machine, more like a control point before production starts.

What actually happens in a Cutting Tools Measurement System

If we talk simple, the system basically checks whether the cutting tool is made correctly or not.

Tool is placed on a fixture, and then system captures its profile using optics or camera based setup. Software then compares it with standard values or design data.

It checks things like:

• diameter of tool
• flute shape
• cutting edge condition
• angles (helix, rake etc.)
• symmetry issues
• wear or damage if rechecking used tools

Earlier this was all done manually, but honestly manual method depends too much on person skill. Two people can measure same tool and get slightly different readings. That problem reduces a lot with a proper system.

So a Cutting Tools Inspection System basically removes guesswork from inspection process.

Why industries prefer machine based measurement now

There are few simple reasons behind this shift:

1. consistency matters more than speed

Production is fast, but if quality is not same every time, it becomes useless. Machine based checking keeps things consistent.

2. less dependency on operator

Not every skilled operator is available all the time. System reduces dependency on human judgement.

3. early detection saves money

If tool is wrong, better to catch it before production starts. Otherwise full batch rejection happens.

4. documentation is easier

Now customers also ask reports. These systems generate proper measurement reports automatically.

Where these systems are actually used

You will find Cutting Tools Measurement System setups in many industries like:

• automotive part manufacturing
• aerospace component production
• CNC job workshops
• tool manufacturing units
• precision engineering companies

Even small workshops are slowly adopting it because rework cost is becoming too high.

A bit about Measurement Machine For Cutting Tool features

Modern machines are not like old inspection tables. They are more like smart systems now.

Some common features you will see:

• digital zoom optics
• automatic edge detection
• software based measurement
• CAD comparison option
• batch tool checking
• digital report generation

Some systems are even semi-automatic where operator just places tool and rest is handled by software.

Role of Sipcon Instrument in this field

Companies like Sipcon Instrument are working in this space and providing inspection solutions for tool measurement and quality control.

What I noticed is their systems are more focused on practical shop-floor use, not just lab environment. Because in real industry, dust, vibration, continuous usage… everything matters.

Sipcon Instrument systems for Cutting Tools Inspection System are generally used where repeatability and stable measurement is required. Not just one-time checking, but daily production level inspection.

They also provide measurement setups that help in reducing rejection rate, which is honestly what every manufacturer wants at the end of the day.

Real problem these systems solve (in simple words)

Let’s say a tool is slightly off angle, maybe 1 or 2 degrees. It may not look big issue.

But in machining:

• surface finish becomes bad
• tool breaks early
• machine load increases
• final part may go out of tolerance

And then whole production line gets disturbed.

So a proper Measurement Machine For Cutting Tool is basically like a filter before production starts.

Future of cutting tool inspection

Now things are moving towards more automation. Slowly AI and smart software are entering in inspection systems.

Future systems will probably:

• detect tool wear automatically
• predict tool failure
• connect directly with production machine
• store cloud based inspection history

So instead of just measuring, system will start guiding production also.

Companies like Sipcon Instrument are already moving in that direction with more upgraded inspection technologies.

Final thoughts

In real manufacturing, cutting tool is not just a part, it is the base of accuracy. If tool is right, half of the problems in machining already solved.

That’s why Cutting Tools Measurement System is becoming more important day by day. It may look like an extra investment at start, but in long run it actually saves a lot of rejection cost and production headache.

A good Cutting Tools Inspection System or proper Measurement Machine For Cutting Tool is not luxury anymore, it is slowly becoming necessity.

Contact Sipcon Instrument

If you are looking for proper inspection and measurement solutions for cutting tools, you can connect with Sipcon Instrument:

Phone: +1 (262) 391-4785
Mail: [email protected]

They can help you choose system as per your production requirement and setup.
