Garden Lighting Design: Step-by-Step System Planning

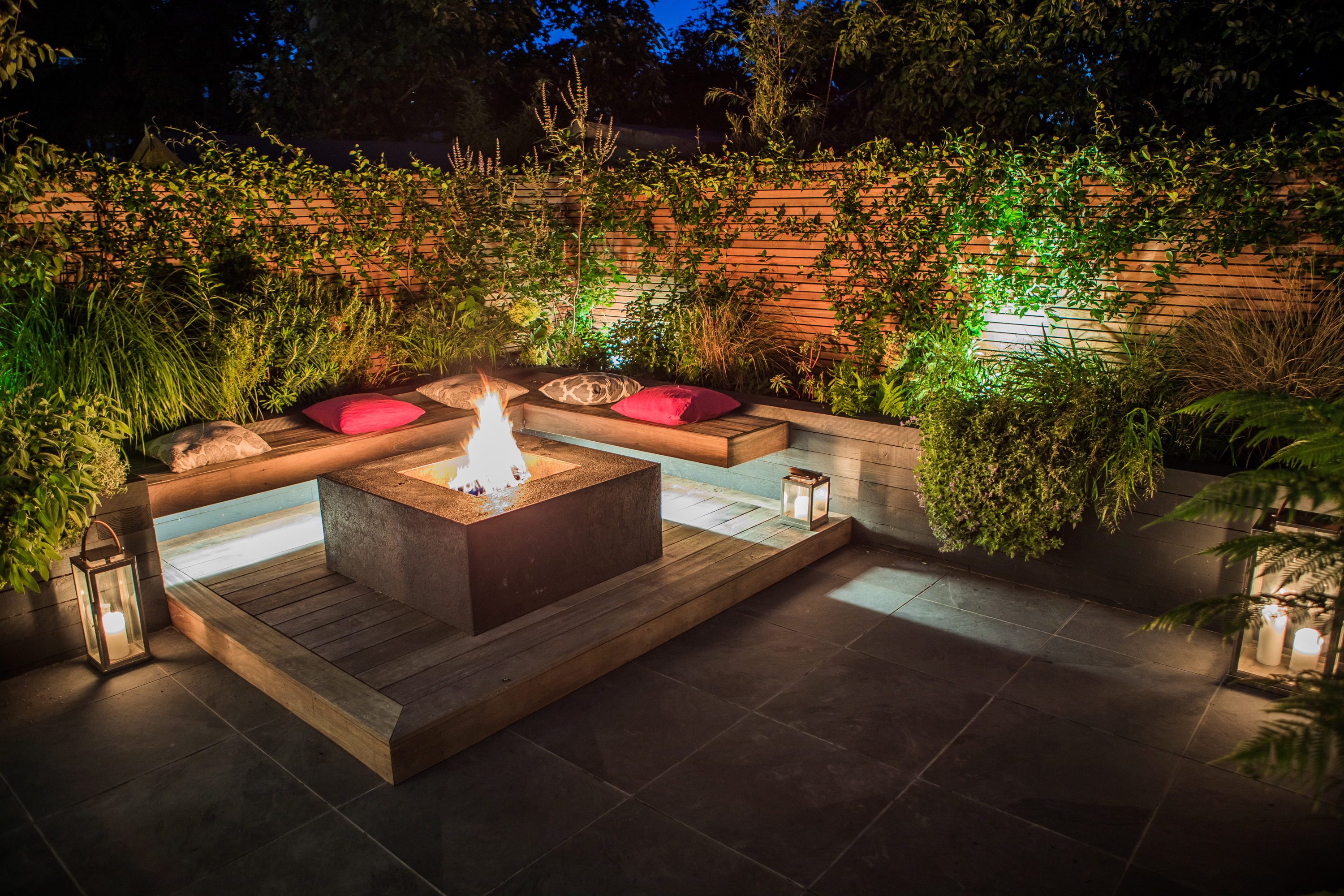

The goal of any garden lighting design is to balance safety, functionality, and aesthetics while meeting electrical code and durability requirements. This guide walks through a practical, electrician-focused approach to garden lighting design, covering layout, wiring choices, fixtures, controls, and installation details for reliable outdoor landscape lighting systems.

Why a Methodical Garden Lighting Design Matters

A systematic approach to outdoor landscape lighting design reduces callbacks, prevents code violations, and improves customer satisfaction. Planning first avoids late changes that require trenching, upsizing conduit, or relocating transformers.

Core planning steps for garden lighting design

1. Gather site information

Measure property lines, note building outlets, locate water features, identify existing conduits, and mark trees and pathways. Determine project scope: accent lighting, path lights, deck/patio lighting, or security illumination.

2. Define zones and required light levels

Divide the garden into zones: approachway, path, seating, focal points, and perimeter. Specify function per zone — e.g., 5–10 lux for a pathway, 50–100 lux for a work/entertaining area — and choose fixtures accordingly. Consider glare control and light trespass onto neighbors.

3. Choose voltage, power and control strategy

Decide between low-voltage (12V), line-voltage (120V), or LED driver-based systems. Low-voltage is common for retrofit landscape lighting because it’s safer and easier to run flexible cable, but line-voltage or remote 24V LED drivers may be more efficient for larger installations. Include timers, photocells, and smart controls in the plan.

4. Create a wiring and transformer layout

Locate the transformer or LED driver near the service entrance or a weatherproof outlet with GFCI protection. Map run lengths to calculate voltage drop for low-voltage systems and select appropriate cable gauge and transformer VA. For line-voltage circuits, plan conduit routes and junction box locations per code.

5. Specify fixtures by purpose

Use downlights or step lights for stairs, bollards for paths, spotlights for tree accents, and wall-mounted fixtures for entrance safety. Choose IP65 or higher rated fixtures for wet locations and corrosion-resistant materials for coastal areas.

LIGHTS checklist — a named framework for on-site decisions

Use the LIGHTS checklist to verify each design before ordering parts or trenching:

1. Locations mapped: mark fixture and transformer spots.
2. Intent set: function and lux targets per zone.
3. Gauge & grounding: cable size, conductor type, and earth grounding plan.
4. Hardware & IP rating: fixture ratings for environment and mounting hardware.
5. Transformer/driver sizing: calculate VA and account for future expansion.
6. Safety & controls: GFCI, timers, surge protection, and labeling.

Real-world example: 50' x 30' backyard layout

Scenario: a backyard with patio, 30' path, a specimen tree, and a small pond. Design choices for a typical electrician:

• Zone 1 (patio): 3 recessed step lights + 1 12W warm-white flood above dining area driven by a 60W LED driver.
• Zone 2 (path): six 3W bollard lights spaced 5'–6' apart, run on a low-voltage 12V circuit with 12 AWG cable to keep voltage drop under 3%.
• Zone 3 (tree accent): two 5W spotlights on adjustable stakes, wired in parallel with a separate dimmed output for scene control.
• Transformer/driver: mount within 10' of service, GFCI-protected outlet, rated 20% above calculated load for future additions.

Wiring details and safety notes

Follow NEC requirements for outdoor wiring and GFCI protection; bond metal fixtures and enclosures. For low-voltage systems, calculate round-trip voltage drop and increase conductor size or transformer tap if needed. Use UV-resistant direct-burial cable or conduit where required. Always use weatherproof junction boxes at each splicing point.

Authoritative reference

For code and safety standards reference the National Fire Protection Association (NFPA) guidance and the National Electrical Code: NFPA / NEC.

Practical tips for installation and commissioning

• Run a temporary mock-up using low-power bulbs to verify sightlines and avoid glare before finalizing fixture positions.
• Label all conductor runs, transformers, and junction boxes for future maintenance and upgrades.
• Use separate circuits or isolated driver channels for dimmed zones to avoid flicker or interference.
• Test GFCI and surge protection after installation and include a simple owner manual for control operations.

Common mistakes and trade-offs

Common mistakes

• Undersizing the transformer or driver — leads to dimming, overheating, and early failure.
• Failing to account for voltage drop on long low-voltage runs, causing uneven brightness.
• Placing fixtures too close to façades or neighbors, causing light trespass and complaints.
• Using fixtures with insufficient IP rating in wet locations, leading to corrosion and shorts.

Trade-offs to consider

Low-voltage systems are easier and safer for small yards and retrofit jobs, but for larger installations, 120V or central LED drivers can be more efficient and require fewer runs. Choosing higher-IP-rated fixtures increases upfront cost but reduces maintenance and replacement frequency in harsh environments.

Core cluster questions

1. How to size a transformer for a garden lighting system?
2. What cable gauge is needed for low-voltage landscape lighting runs?
3. How to prevent light pollution and glare in outdoor lighting?
4. When to choose line-voltage over low-voltage for outdoor fixtures?
5. What GFCI and grounding requirements apply to garden lighting?

Installation checklist before handover

• Confirm all fixtures operate and dim correctly on their intended controls.
• Verify GFCI protection and label circuit breakers and junction boxes.
• Provide the client with an as-built diagram and basic operation guide for timers and smart controls.

Maintenance and upgrade tips

Plan for access to transformers and junction boxes. Use modular connectors where possible to simplify replacement of fixtures. Record LED driver models and firmware if smart controls are used.

Frequently asked questions

How does garden lighting design affect transformer sizing?

Transformer sizing requires summing the wattage of all fixtures on a transformer and adding at least 20% headroom for future expansion and inrush currents. For LED systems, include driver inefficiencies and any dimmer losses in the calculation.

Can a low-voltage garden lighting layout run more than 50 feet from the transformer?

Yes, but long runs increase voltage drop. Compensate by using larger conductor gauges (e.g., 10–12 AWG) or by installing a secondary transformer closer to the far end. Recalculate voltage drop so the farthest fixture receives at least 90–95% of nominal voltage.

What are the best fixture choices for wet or coastal gardens?

Choose fixtures with higher IP ratings (IP65 or above) and corrosion-resistant materials such as marine-grade stainless steel or powder-coated aluminum. Seal connections and use corrosion-inhibiting compounds on terminals.

How to plan garden lighting design to meet electrical code?

Follow local amendments to the NEC and NFPA guidance for outdoor wiring, ensure GFCI protection where required, use approved enclosures and conduit methods, and obtain permits when mandated. Consult local code officials for clarifications on buried cable depth and conductor types.

What are simple ways to reduce light pollution from a garden lighting system?

Use shields and directional fixtures, choose warm color temperatures (2700K–3000K), limit lumen output to what’s functionally necessary, and implement timers or motion-activated controls to minimize unnecessary overnight lighting.
