Diaphragm walls are constant, reinforced concrete walls constructed in the ground to support major construction activities, such as dams, tunnelling strategies, deep cellars, and rooms. They act as a preserving wall, a support for the below-ground framework, a structure, or a cut-off stipulation to facilitate deep excavation.

In this blog, we will certainly review the various sorts of diaphragm wall construction and their prices in India. Diaphragm wall construction cost varies depending on the dimension, depth, and complexity of the job. We will also talk about some FAQs about diaphragm walls and their applications.

Kinds of Diaphragm Wall Construction

There are 4 types of diaphragm wall construction in India, depending upon the approach of excavation and concreting.

Grabbed the Diaphragm Wall

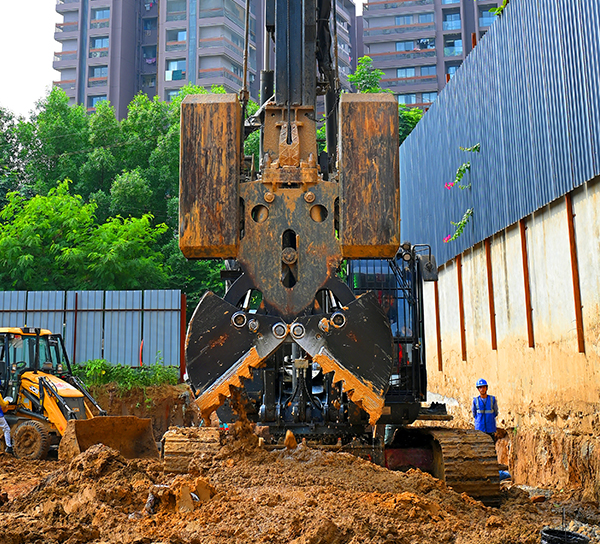

This sort of diaphragm wall is created by excavating vertical panels under stabilizing slurries using mechanical or hydraulic clamshell grabs. The grabbers are suspended by a crane or a wire and can break through any type of blockage they run into in the soil.

Hydromill Diaphragm Wall

The hydromill is an effective tool for breaking through resistant soil and rock layers. The trench is full of concrete after putting in the support cage. This is an urgent method for metro diaphragm wall construction in India, as it can take care of complicated geology and high water tension.

Precast Concrete Diaphragm Wall

After excavation making use of grabs or hydromills, precast concrete panels are placed straight right into the trench to develop this type of diaphragm wall. The panels belong to each other and, with the surrounding dust, develop a regular wall. This is a sensational technique for diaphragm walls in dam construction, as it can withstand high loads and seismic works.

Steel Armoured Diaphragm Wall

These diaphragm walls are constructed by inserting steel tubes or light beams into the trench after it has been excavated using grabs or hydromills. Tubes or beams of light have lots of concrete to establish a composite wall. This is an alternating method for diaphragm wall construction in India, as it can make use of higher endurance and strength than typical concrete walls.

Aspects Influencing Diaphragm Wall Construction Expenses

Sort of a Diaphragm Wall

Diaphragm walls come in a variety of forms, including composite, slurry, and soil mix walls. Each type has its advantages and negative elements, and the option depends on the work requirements and site problems often complemented by soil & rock anchoring service for enhanced stability. Composite and soil mix walls are frequently more costly than slurry walls.

Depth of the Excavation

Without a doubt, the price of constructing a diaphragm wall will increase with the deepness of the excavation. This is because much deeper excavations call for even more materials, equipment, and labour, in addition to more complex engineering and safety measures.

Complexity of the Work

The complexity of the job furthermore influences the expense of diaphragm wall construction. As an example, if the work entails contours, edges, or uneven kinds, the diaphragm wall construction will absolutely be more difficult and a lot more expensive than a straightforward rectangular or straight excavation.

Dirt Problems

The dirt problems on the work site also have an impact on the rate of diaphragm wall building. For example, if the dust is hard, harsh, or diseased, the diaphragm wall construction will require more precise devices and techniques, increasing the cost. However, if the dust is soft, sandy, or clayey, diaphragm wall construction will be substantially easier and less expensive.

Ecological Issues

The environmental issues on the job site also increase the cost of diaphragm wall building. For instance, if the internet website is located in a high seismic location, a coastal location, or a flood-prone location, the diaphragm wall construction will need to meet far better requirements of premium quality and toughness, which will enhance the price.

Diaphragm wall construction in India typically costs between ₹15k and ₹25k per square meter, based on market prices. Nonetheless, this may vary depending on the elements explained above. For that reason, it is suggested to ask expert diaphragm wall and skilled piling contractors in India who can provide specific quotes and help on diaphragm wall construction for your task.

Diaphragm walls are furthermore made use of for top down construction methods that include constructing the below-ground structure initially and afterwards developing the above-ground structure later. This technique reduces audio and dirt contamination, maintains area and time, and boosts safety and security, protection, and superb high quality. Diaphragm walls, in addition, need PVC water stoppers to continue to be without water leaks between bordering panels.

Additional Diaphragm Wall Construction Costs

In addition to the diaphragm wall construction cost in India, there may be some added costs that need to be thought about, such as:

Site Investigation Price

This consists of the cost of performing soil tests, groundwater examinations, and geophysical studies to establish the soil problems and style parameters for the diaphragm wall critical for integrating ground anchor systems. Costs for site investigations may vary based on the project's complexity and magnitude.

Layout & Guidance Expense

This includes the cost of working with experts and designers to design and manage the diaphragm wall construction. The style and guidance prices might depend on the extent and period of the task.

Backup Expenses

This consists of the rate of unforeseen events or threats that could influence the diaphragm wall construction, such as hold-ups, problems, conflicts, environmental problems, and much more. The backup price could be estimated as a portion of the full task expenditure.

While the diaphragm wall construction price can be estimated based on variables like the type of wall, deepness of excavation, details of the job, dust issues, and environmental troubles, it is crucial to take into consideration these consistent expenditures for a comprehensive understanding of your basic monetary investment.

Conclusion:

Diaphragm walls are an effective and functional service for numerous construction functions that call for deep excavation and dust retention. They can be developed by using various techniques and items, depending on the site's troubles and task needs.

If you are looking for a credible and enlightened diaphragm wall construction contractor for your upcoming deep stockroom job, you can chat with Bhagwati Machinery, the leaders in diaphragm wall construction in India. They have the competence and the tools to offer affordable diaphragm walls at cost-efficient prices.
