Practical Security Camera Installation Guide: Step-by-Step Setup, Wiring & Placement

security camera installation guide: A single, practical plan makes camera setup faster, safer, and more reliable. This security camera installation guide explains how to plan coverage, choose mounting locations, handle power and wiring, secure the network, and test cameras so they record useful evidence without common errors.

Detected intent: Informational

security camera installation guide: a step-by-step plan

Step 1 — Define objectives and map coverage

Start by deciding what needs to be observed: entrances, driveways, backyard, or interior zones. Sketch a simple map of the property and mark important sightlines and lighting conditions. Note existing power outlets and the intended recording method (local NVR, cloud service, or hybrid). This early mapping reduces rework and ensures cameras cover choke points rather than blank walls.

Step 2 — Select camera types and required accessories

Match camera type to placement: wired PoE cameras for reliable continuous power and higher video quality; Wi‑Fi cameras where power is available but running cable is impractical; battery cameras for remote spots without power. Consider lens type (fixed, varifocal), resolution, low-light performance, and weather rating (IP66/IP67) for outdoor models. For wired systems, add PoE switches, NVR, and surge protection to the parts list.

Step 3 — Plan wiring and power safely

When running cable, label both ends and follow best practices for cable routing: avoid electrical conduits to reduce interference, keep Ethernet runs under 328 feet for standard Cat5e/Cat6 without repeaters, and use weatherproof junctions outdoors. For power wiring or hardwired installs that connect to building mains, consult local regulations and a qualified electrician. Local electrical codes such as the National Electrical Code (NEC) define safe wiring standards and should be followed for permanent installations — see official guidance from the NEC for details: https://www.nfpa.org/NEC.

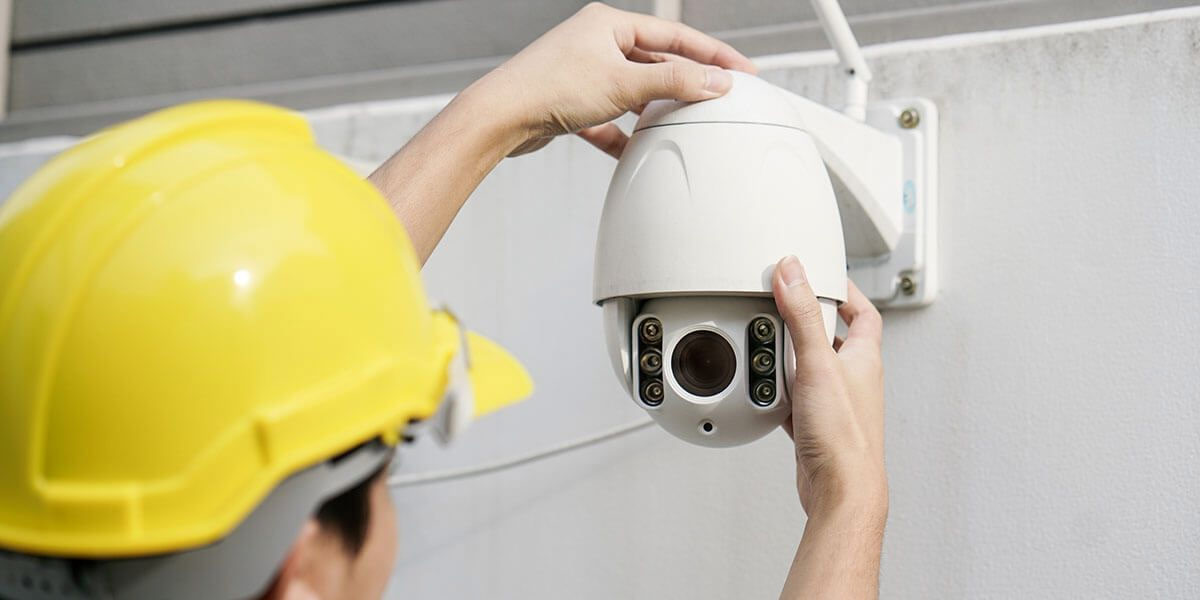

Step 4 — Mounting and physical installation

Mount cameras at 8–10 feet for most outdoor locations to balance field of view and tamper resistance; higher mounts require different lenses. Use firm anchors for siding, masonry anchors for brick, and interior low‑impact mounts for drywall. Aim for a 30–45 degree downward tilt to capture faces without excessive sky or ground. Seal exterior holes with silicone to prevent water ingress.

Step 5 — Network configuration and security

Assign fixed IP addresses or DHCP reservations for hardwired cameras to simplify NVR or router rules. Put cameras on a segmented VLAN or guest network where possible and restrict remote access to secure, encrypted connections. Change default passwords and update firmware promptly. For cloud-connected cameras, enable two‑factor authentication when supported.

Step 6 — Test, optimize, and document

Check live feeds, verify day/night performance, and trigger motion detection to ensure recordings start as expected. Fine-tune motion zones and sensitivity to reduce false positives from trees or street traffic. Document camera locations, cable routes, IP addresses, and admin credentials in a secure store for future maintenance.

INSTALL checklist (named framework)

Use the INSTALL checklist to keep installations consistent and auditable.

• I — Inspect site and map coverage.
• N — Network plan: VLANs, IPs, and bandwidth check.
• S — Select camera type and accessories.
• T — Test wiring, signal strength, and power.
• A — Anchor and mount cameras securely.
• L — Lock down credentials and enable encryption.
• L — Log configuration, label cables, and schedule maintenance.

Real-world example

Scenario: A homeowner wants four cameras to cover the front door, driveway, backyard, and side gate. The plan: two PoE dome cameras on the front and driveway (connected to a home PoE switch and NVR in the garage), one Wi‑Fi camera at the back porch where running cable is difficult, and one battery camera for the side gate. After mapping, the installer routes two Cat6 runs through the attic into the garage, mounts the cameras at 9 feet, configures fixed IPs on the router, applies motion zones to the driveway camera to ignore the street, and schedules nightly NVR backups. Total on-site time: roughly 4–6 hours including testing.

Practical tips (actionable)

• Record a short test clip after every camera is mounted and before closing walls or sealing holes.
• Label both ends of cables with durable tags; take photos of cable paths for future troubleshooting.
• Use PoE where possible to centralize power and reduce points of failure; pair with UPS for critical sites.
• Place cameras out of direct reach and slightly angled downward to reduce vandalism and lens flare.
• Schedule firmware and system checks quarterly to keep software current and secure.

Trade-offs and common mistakes

Trade-offs:

• Battery vs wired: Batteries simplify installation but require periodic replacement and may miss long events; wired systems require more upfront work but provide continuous power and often better reliability.
• Higher resolution vs bandwidth/storage: 4K captures detail but increases storage needs and network load; choose resolution appropriate to the task (license plate or facial detail may require higher resolution and placement closer to the subject).

Common mistakes to avoid:

• Failing to plan cable runs before drilling — leads to messy or unsafe installations.
• Using default passwords or open ports — exposes cameras to remote compromise.
• Mounting cameras where glare or backlighting dominates — reduces usable footage.

Core cluster questions

1. How much does it cost to install a basic home security camera system?
2. What are the best camera placement practices for front doors and driveways?
3. When is PoE preferred over Wi‑Fi for cameras?
4. How should storage and retention be configured for continuous recording?
5. What network security steps are necessary to protect IP cameras?

FAQ

How long does a security camera installation guide recommend the process will take?

Typical residential installs range from 2–8 hours depending on the number of cameras, whether cables must be run through walls/attics, and whether electrical work is required. Planning and testing are separate tasks that add 1–2 hours but reduce rework.

What is the difference between PoE and Wi‑Fi cameras?

PoE (Power over Ethernet) provides power and data over a single Ethernet cable, improving reliability and simplifying cabling for many installations. Wi‑Fi cameras avoid running cable but depend on wireless signal strength and battery life or nearby power.

How should cameras be secured on a home network?

Place cameras on a segmented VLAN or guest network, change default credentials, keep firmware updated, and enable strong encryption and two‑factor authentication for cloud accounts. Limit inbound firewall rules; prefer outbound-only connections for remote access if possible.

Can cameras be installed without drilling through walls?

Battery or Wi‑Fi cameras can be mounted with adhesive or surface mounts to avoid major drilling, but permanent, tamper-resistant installations usually require anchors and some holes. Use weatherproof cable conduits where external runs are needed.

What storage and retention is recommended in a security camera installation guide?

Retention depends on purpose and privacy rules. For general home use, 7–30 days of retention is common; for business or high-risk areas, legal or compliance requirements may dictate longer retention. Calculate storage needs based on resolution, frame rate, compression, and the number of cameras.
