Turbo Wastegate Guide: How It Controls Boost and How to Tune It

A turbo wastegate is the valve that opens to divert exhaust gas around the turbine to control boost pressure in a turbocharged engine. This article explains how a turbo wastegate works, the differences between internal and external types, and practical steps for choosing and tuning one to achieve stable boost control.

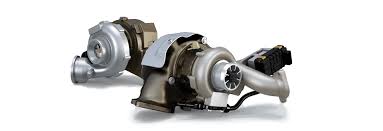

How a turbo wastegate controls boost

The wastegate controls the volume of exhaust gas that drives the turbine wheel. When boost reaches the target, the wastegate opens to bypass exhaust around the turbine, reducing turbine speed and limiting further boost. Two elements set the basic control behavior: the wastegate actuator (spring and diaphragm) and any boost-control device (mechanical or electronic) that modifies actuator pressure.

Key parts and related terms

• Wastegate valve and port
• Actuator (spring pressure, diaphragm)
• Boost pressure reference line (manifold reference)
• Boost controller—manual, pneumatic, or electronic
• Associated components: turbocharger, blow-off valve, ECU

Types: internal vs external wastegate

Most street turbos use an internal wastegate integrated into the turbine housing. Performance and race applications often use an external wastegate mounted separately on the exhaust manifold. The decision depends on required flow, packaging, and control precision.

External vs internal wastegate (trade-offs)

• Internal wastegate: simpler, lower cost, compact, limited flow capacity; suitable for mild to moderate boost levels.
• External wastegate: higher flow capacity, better at preventing boost creep at high boost or with large turbos, allows finer tuning and plumbing options but requires more space and plumbing complexity.

Wastegate actuator and boost control

The actuator spring sets a default opening pressure. Adding a boost controller (pneumatic or ECU-driven solenoid) alters actuator pressure to raise or lower boost. Electronic boost controllers and ECU maps offer the most precise control, including target boost by gear, RPM, or temperature, but require proper calibration to avoid over-boost conditions.

WASTE checklist: A practical framework for choosing and tuning a wastegate

Use the WASTE checklist to evaluate requirements before changing boost control hardware:

• W — Waveform: Consider targeted torque and spool profile (low-end vs top-end).
• A — Actuator: Verify spring rating and travel are suitable for the target boost range.
• S — Size & flow: Confirm valve seat and port area match expected exhaust flow (especially with big turbos).
• T — Tubing & reference: Use correct manifold-referenced lines and routing to avoid false readings.
• E — Electronics: Plan how the actuator will be controlled (mechanical, solenoid, ECU integration).

Real-world scenario

A 2.0L turbocharged street car was upgraded to a larger hybrid turbo. The stock internal wastegate could not bypass enough flow at 18 psi, causing boost creep and over-boost in the midrange. Solution: install an external wastegate sized to peak exhaust flow, fit a 10 psi actuator spring as base, then use an ECU-controlled solenoid to tune closed-loop target boost. The result delivered the planned 15–18 psi across the rev range without overshoot.

Practical tuning tips

• Start with conservative actuator spring selection and confirm baseline behavior before adding an electronic controller.
• Use short, rigid boost reference lines for the actuator to reduce lag and false readings; avoid routing near hot exhaust components.
• When using an electronic boost controller, implement a safety cut (via ECU) to limit maximum boost and protect the engine.
• Monitor exhaust gas temperature (EGT) and knock when increasing boost—boost alone does not guarantee safe power increases.
• Leak-check all boost plumbing and the wastegate valve seat; small leaks can cause hunting and instability.

Common mistakes and trade-offs

Common mistakes

• Choosing an undersized wastegate for the turbo: leads to boost creep and inability to control peak boost.
• Mismatching actuator spring to desired boost: either causes premature opening or inability to reach target without over-driving the controller.
• Poor boost reference routing: long or collapsing hose causes delayed or incorrect actuator response.

Trade-offs to consider

• External wastegates add control at the cost of complexity and potential backpressure changes.
• Electronic controllers add flexibility but require tuning knowledge and fail-safes; mechanical setups are simpler but less adaptable.

For manufacturers' technical guidance on turbocharger and wastegate behavior, consult the turbocharger technical resources maintained by OEMs and suppliers such as Garrett Motion: Garrett technical library.

Core diagnostics checklist (quick)

• Verify wastegate opens at the expected manifold pressure using a gauge.
• Pressure-test boost plumbing for leaks and collapsed hoses.
• Confirm actuator travel and that valve seat seals when closed.
• Validate ECU or boost controller maps against logged boost traces.

FAQ

What does a turbo wastegate do?

A turbo wastegate diverts exhaust gas away from the turbine to control turbine speed and thus limit boost pressure. It is the primary device that prevents uncontrolled boost rise.

How does boost creep happen and can a wastegate prevent it?

Boost creep occurs when the wastegate cannot bypass enough exhaust flow—commonly due to undersized valve area, improper spring, or ineffective plumbing. A properly sized wastegate and correct actuator selection prevent boost creep.

When should an external wastegate be chosen over an internal one?

Choose an external wastegate when the turbo and application produce exhaust flow beyond the control capacity of an internal gate, or when finer control and plumbing flexibility are required for high-boost or motorsport use.

How does the wastegate actuator spring affect boost control?

Stronger springs raise the baseline boost required to open the gate. If the spring is too stiff, the wastegate may never open at the desired boost and the boost controller will need to bleed pressure to force opening; if too soft, boost will be limited prematurely.

Can an electronic boost controller replace the wastegate actuator?

No. An electronic boost controller modifies the pressure seen by the actuator to change its behavior, but the actuator and valve remain the mechanical device that actually opens and closes the bypass. Proper integration is required for safe, reliable boost control.
