Integrating Air and Manual Actuators for Safer, Higher-Performing Systems

The air and manual actuator combination is a common approach to balance on-demand performance with safe, reliable manual control during maintenance or emergency conditions. This guide explains how the two modes work together, key safety principles, and a practical checklist for integration and testing.

Air and manual actuator: what they are and why combine them

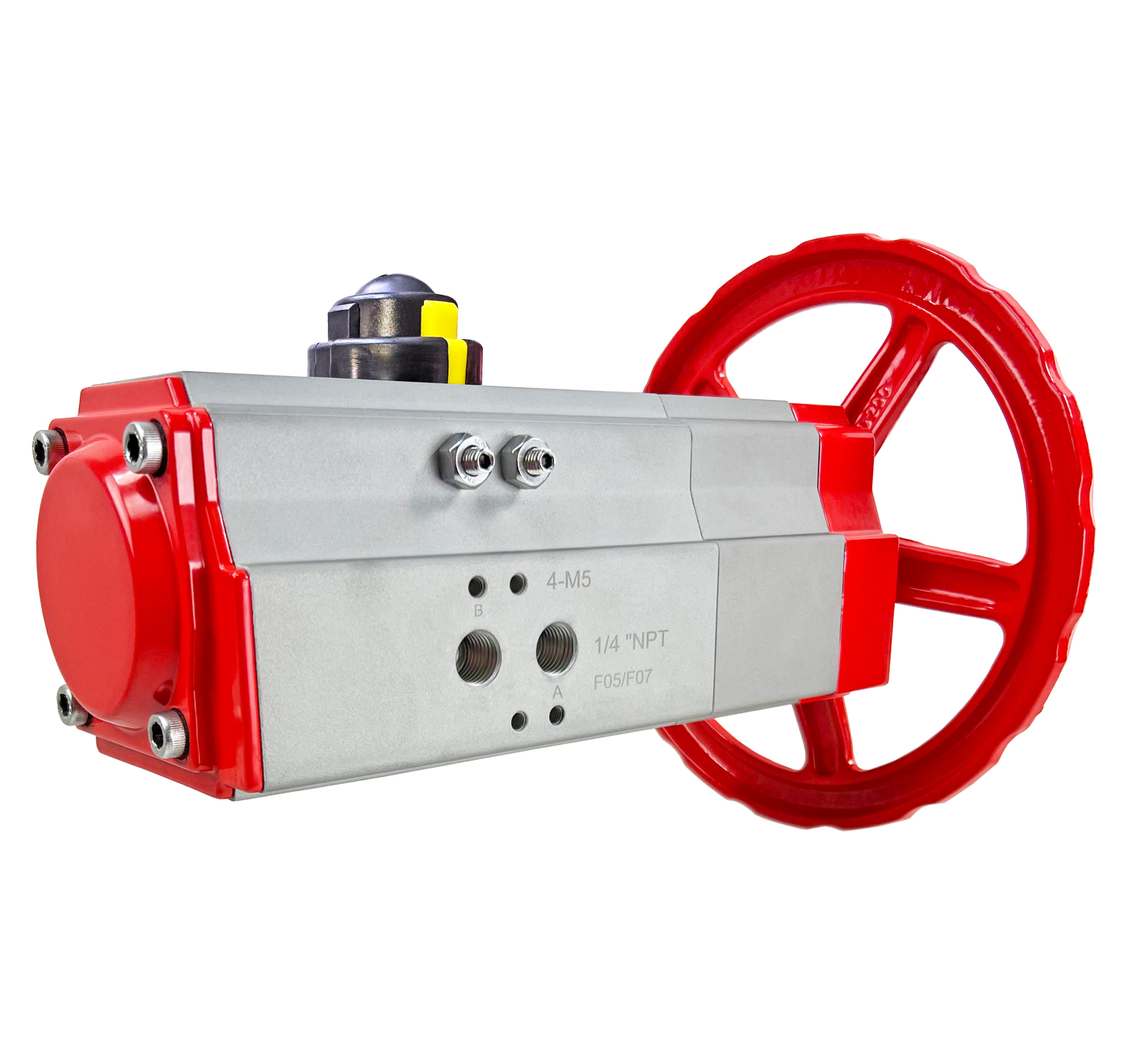

An air and manual actuator pairs a pneumatic (air-driven) actuator with a mechanical manual override or handwheel. The pneumatic side delivers fast, repeatable motion for normal operation and automation integration; the manual side provides direct human control for lockout-tagout, commissioning, or when pneumatic supply is unavailable. Combining both supports operational performance and on-site safety when designed and implemented correctly.

Key components, terms, and safety considerations

Common elements include the pneumatic cylinder or quarter-turn actuator, solenoid valves or positioners, a manual override (handwheel, gearbox, or clutch), position feedback switches, and mechanical stops. Important safety-related concepts and standards to consider: fail-safe design, lockout-tagout, Safety Integrity Level (SIL) and ISO 13849 risk reduction principles, and machine guarding guidelines from regulatory bodies such as OSHA. For guidance on machine guarding and related safety practices, consult the OSHA machine guarding resources here.

AIR-MAP Checklist for safe actuator integration

A simple, named checklist helps standardize design and commissioning decisions. AIR-MAP stands for: Assess, Interface, Redundancy, Maintenance, Alerts, and Procedures.

• Assess — Perform a risk assessment to identify failure modes, pinch points, and access needs.
• Interface — Define pneumatic control signals, end stops, and how manual override couples/decouples without unexpected motion.
• Redundancy — Specify lockable manual override positions, mechanical stops, and feedback for safe state confirmation.
• Maintenance — Provide clear access and mechanical isolation for servicing; include lubricant and wear inspection points.
• Alerts — Add visual indicators or interlocks to show when manual override is engaged and to inhibit automatic actuation.
• Procedures — Create step-by-step lockout and handover procedures covering both pneumatic isolation and manual control use.

How to implement a combined actuator system (practical steps)

Start with a documented functional specification that lists normal automatic behavior and manual-only states. Then follow these practical actions:

1. Choose actuators and manual overrides rated for expected torque, cycles, and ambient conditions.
2. Design a mechanical coupling or declutch that prevents sudden re-engagement of pneumatic power while the manual override is active.
3. Add position sensors and interlocks so the controller can detect manual mode and inhibit pneumatic commands.
4. Validate fail-safe behavior: define what the system must do on compressor loss, solenoid failure, or manual release.
5. Document and train technicians on lockout-tagout and the manual override sequence; include who is authorized and how to verify state.

Real-world example: valve isolation in a chemical feed line

A process plant uses quarter-turn pneumatic actuators on chemical isolation valves to open and close rapidly during batch cycles. For maintenance, each actuator includes a handwheel and lockable declutch so technicians can safely position the valve and lock it in place. Control logic prevents automated operations while a maintenance key is present and position switches report the locked status to the DCS. This reduces downtime during routine work while maintaining safety compliance.

Practical tips for reliable safety and performance

• Specify clear mechanical markings and a lock point on the manual override so position is unambiguous during hand operation.
• Use a positive locking remnant (padlock points or mechanical pins) when maintenance requires absolute isolation rather than relying on system state alone.
• Integrate electrical or pneumatic interlocks that prevent automatic re-pressurization while manual control is engaged.
• Include redundant position feedback (mechanical and electronic) for safety-critical valves and actuators.
• Schedule and record functional tests that exercise both pneumatic and manual modes at defined intervals.

Trade-offs and common mistakes

Combining air and manual actuators involves trade-offs. Adding manual overrides increases complexity, weight, and cost. A declutch or gearbox introduces potential failure points if not properly specified. Common mistakes to avoid:

• Relying on state alone (controller reports closed) without mechanical confirmation or lockout during maintenance.
• Designing a handwheel or clutch that can be accidentally re-engaged by automation without positive interlocks.
• Omitting clear procedures for switching modes, which leads to ambiguity and inconsistent practices on the shop floor.
• Neglecting environmental ratings—manual components corrode or freeze if not selected for site conditions.

Core cluster questions

1. What are the best practices for designing a manual override on a pneumatic actuator?
2. How should interlocks be implemented between manual and automatic actuator modes?
3. What testing and inspection schedule is recommended for combined actuator systems?
4. How to size a manual handwheel or gearbox for valve torque and safety factors?
5. Which safety standards apply to actuator manual overrides and isolation procedures?

Verification, testing, and documentation

Verification should include functional tests (switching from automatic to manual and back), failure-mode simulations (air supply loss, solenoid stuck), and human factors checks (ease of access, clear labels). Document test results, maintenance history, and any deviations from the AIR-MAP checklist in asset records. Use risk assessment outputs to determine test frequency and required redundancy levels.

FAQs

What is an air and manual actuator and when should it be used?

An air and manual actuator combines pneumatic actuation with a mechanical manual override. It should be used where automated performance is required but human access, maintenance, or emergency manual control will occasionally be necessary—such as critical isolation valves, machine guards, or remote assets where reliable manual positioning is required.

How can a pneumatic actuator be safely converted to manual control during maintenance?

Safe conversion requires mechanical isolation of pneumatic energy, a positive declutch or geared handwheel, visible and lockable isolation points, and interlocks or signals to inhibit automation while manual control is active. Add documented lockout-tagout steps and verify position with redundant feedback before starting work.

What are common failure modes when combining pneumatic and manual actuation?

Common failures include accidental re-engagement under pressure, wear of clutch components, contaminated or frozen pneumatic lines, and loss of position feedback during manual operation. Address these with design redundancy, proper material selection, and scheduled inspections.

How to choose between a declutch and a gear handwheel for manual override?

Choose a declutch when quick transition between modes is needed and torque is moderate. Select a geared handwheel when high torque is required for large valves or limited space—ensuring the gear ratio provides manageable force and includes locking or padlock points for safety.

Is special documentation required when installing an air and manual actuator?

Yes. Include a functional specification, risk assessment, the AIR-MAP checklist results, installation drawings, interlock logic, and maintenance/testing procedures. Keep records of periodic functional tests and any incidents to support continuous improvement and compliance with applicable standards.
