How to Buy Custom Flanges from Saudi Suppliers: Practical Guide for Buyers

Detected intent: Informational

When buying custom flanges from Saudi suppliers, understanding technical specs, certifications, lead times, and export requirements is essential to avoid delays and extra costs. This guide explains what to check, how to evaluate suppliers, and practical steps to procure custom pipe flanges for industrial projects.

Buying Custom Flanges from Saudi Suppliers: what to check first

Start with clear technical drawings and a specification sheet that lists material grade (for example ASTM A105, A182 F304/F316, duplex), flange type (weld neck, slip-on, blind, socket weld, lap joint), nominal pipe size, pressure rating (ANSI/ASME classes or PN), facing (RF, RTJ), and tolerance. Also specify required inspections such as radiographic testing (RT), magnetic particle testing (MPT), hydrostatic test pressure, and any NACE or sour-gas requirements.

PRIME procurement checklist for custom flanges

Use the named framework below to standardize RFQs and supplier evaluation.

PRIME Checklist

• Purpose & Project Specs: Drawings, material grades, flange class, finish, and project acceptance criteria.
• Regulatory & Standards: Applicable standards (ASME, ISO, EN, MSS) and required certifications (material test reports, heat traceability).
• Inspection & Testing: NDT requirements, third-party inspection, witness test options, hydrostatic/radiography.
• Manufacturer Vetting: Factory audit records, production capacity, QC procedures, and export experience.
• Export Logistics & Costs: Packing, customs documentation, Incoterms, lead time, and contingency for delays.

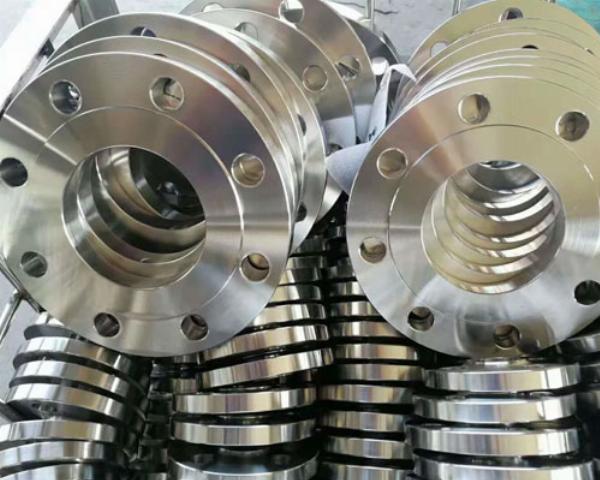

Material options and standards — including stainless steel flanges Saudi Arabia

Common materials include carbon steel (e.g., ASTM A105), stainless (304/316), duplex and super duplex, and nickel alloys. For projects requiring corrosion resistance, specify stainless grade and heat-treatment. Reference standards such as ASME B16.5 for pipe flanges and numerous ISO/EN equivalents. For clarity about dimension and pressure class references, consult official standards; for example ASME maintains the B16.5 standard ASME B16.5.

Supplier evaluation and certifications

Ask for documented proof of supplier capabilities: company registration, ISO 9001 quality system, material test reports (MTRs) with heat numbers, welding procedure qualifications (WPQR/WPS), and third-party inspection records. For oil & gas projects, request NACE MR0175/ISO15156 compliance where applicable. If product traceability is critical, require stamped flanges and full MTR traceability to the mill heat.

Real-world procurement scenario

Example: A pipeline contractor needs 120 weld-neck stainless steel flanges, ANSI 300#, ANSI B16.5, stainless 316L, RF face, with radiographic inspection on welds and full MTRs. The buyer sends the PRIME checklist and technical drawings to three Saudi suppliers. Supplier A quotes a 10-week lead time with third-party inspection, Supplier B offers 6 weeks but no third-party inspection, Supplier C has a longer lead time but provides factory audit reports. The buyer selects Supplier A because the project requires verified NDT and traceability despite slightly higher cost; shipment is arranged CIF with agreed-upon acceptance tests witnessed by the buyer's inspector in Dammam.

Practical tips for smoother orders

• Provide detailed drawings in STEP or DWG format and a one-page specification sheet to eliminate guesswork.
• Include acceptance criteria and inspection checkpoints in the purchase order (material, dimensional, NDT). Schedule witness inspections early.
• Build lead time buffers for heat treatment and NDT — these operations often add 2–4 weeks to production.
• Request sample MTRs and weld procedure documents before awarding large contracts; confirm heat traceability markings on forged parts.
• Agree Incoterms and customs paperwork up front—Saudi export documentation and international shipping can add complexity.

Costs, lead time, and trade-offs

Faster delivery usually costs more and may limit inspection options; the lowest price may risk incomplete traceability, inferior material, or missed tests. Choosing a supplier with in-house machining and testing reduces transport between vendors but can increase unit cost. Prioritizing third-party inspection increases confidence but adds time and fee. Account for extra costs for special coatings, post-weld heat treatment (PWHT), and export packing for long voyages.

Common mistakes

• Not specifying standard references: ambiguous specs invite mismatched parts.
• Skipping MTR verification or accepting scanned documents without original heat numbers.
• Ignoring flange facing and bolt hole tolerance details—these cause alignment issues in the field.
• Assuming lead times are fixed—peak seasons and export inspections can extend delivery by weeks.

Logistics, export controls, and customs

Factor in packing for heavy forged flanges, export invoices, certificate of origin, commercial invoices, and any Saudi export permits if raw materials or alloy restrictions apply. Use Incoterms to allocate risk and cost. For complex projects, involve a freight forwarder familiar with Saudi ports (Jeddah, Dammam, Jubail) and ensure all documentation matches the packing list and commercial invoice.

Core cluster questions

• How to verify material test reports (MTRs) for imported flanges?
• What are typical lead times for custom pipe flanges from Gulf suppliers?
• Which flange standards (ASME/EN/ISO) are commonly used for offshore projects?
• How to arrange third-party inspection and witness testing in Saudi Arabia?
• What export documents are required when shipping flanges internationally?

Negotiation and contract tips

Include acceptance tests, hold points, and remedy clauses in contracts. Offer staged payments: deposit, payment on production milestone, and final payment upon receipt of MTRs and inspection reports. Clarify responsibility for failed tests: who pays for rework, re-testing, and delays. Use purchase orders that reference the PRIME checklist to ensure scope clarity.

FAQ

How should one approach buying custom flanges from Saudi suppliers?

Start with precise specifications, use a procurement checklist like PRIME, request MTRs and supplier certifications, and schedule third-party inspection. Clarify lead times and Incoterms in the PO and allow time for testing and export documentation.

What certifications should Saudi flange suppliers provide?

Typical documentation includes ISO 9001 for quality management, material test reports (MTRs) with heat numbers, welding procedure and welder qualifications, and NDT reports. For oil & gas, request NACE or project-specific compliance evidence.

How long does it take to manufacture custom pipe flanges?

Lead time varies by material and testing: 4–12 weeks is common. Heat treatment, complex machining, or extensive NDT will extend timelines. Confirm slots for third-party inspection early.

Can stainless steel flanges Saudi Arabia manufacturers supply certified MTRs?

Yes — reputable manufacturers provide certified MTRs that trace material to the mill heat number. Verify MTR authenticity and ensure it matches the forged or machined part markings.

What are common quality control tests for custom flanges?

Common tests include dimensional checks, hydrostatic pressure tests, radiography (RT), ultrasonic testing (UT), magnetic particle testing (MPT), chemical analysis, and mechanical testing as specified by the standard or project.
