Chilled Mirror Hygrometer Dew Point Analyzers

Accurate humidity and dew point measurement becomes critical in industries where even a trace amount of moisture can disrupt processes, damage equipment, or compromise product quality. Among the various types of hygrometers available today, Chilled Mirror Hygrometer Dew Point Analyzers stand out as the most precise, stable, and reliable instrument for measuring moisture content in gases and air. These analyzers are widely used in calibration laboratories, power generation, pharmaceuticals, aerospace, and other critical applications that require absolute measurement accuracy.

This comprehensive article examines the operating principles, benefits, key applications, and considerations for utilizing Chilled Mirror Hygrometer Dew Point Analyzers, highlighting why they remain the gold standard for professionals in the field of humidity measurement.

Understanding Dew Point and Its Significance

The dew point is the temperature at which air becomes saturated with water vapor and begins to condense. This temperature is a direct reflection of the moisture content in the gas. A lower dew point indicates drier air, while a higher dew point suggests more moisture. In many industrial environments, especially those involving sensitive materials or equipment, precise control over moisture levels is vital.

In sectors like semiconductor manufacturing, power systems, or gas drying operations, moisture—even at extremely low concentrations—can lead to:

  • Electrical breakdown in high-voltage equipment
  • Chemical reactions or corrosion in pipelines
  • Product defects in electronics or pharmaceuticals
  • Reduced efficiency in compressed air systems

Given such critical needs, dew point must be measured with the highest precision—hence the need for Chilled Mirror Hygrometer Dew Point Analysers.

What Is a Chilled Mirror Hygrometer Dew Point Analyser?

A Chilled Mirror Hygrometer Dew Point Analyzer is an advanced moisture measurement instrument that uses the physical principle of condensation on a cooled surface to determine the dew point of a gas sample. This method offers direct, primary standard measurement, not inferred from sensor resistance or capacitance, but observed through actual moisture condensation.

How It Works:

Gas Sample Introduction: A sample of air or gas is directed over a highly polished metallic mirror.

Mirror Cooling: The mirror is gradually cooled using a Peltier thermoelectric device.

Dew Detection: As the mirror reaches the dew point, moisture condenses on the surface. An optical system (typically a light beam and photodetector) detects the onset of condensation.

Temperature Measurement: The temperature at which condensation forms is recorded as the dew point temperature.

Because this method directly observes the condensation event, it is unaffected by contaminants or sensor drift, ensuring long-term accuracy and reliability.

Advantages of Chilled Mirror Hygrometer Dew Point Analyzers

True Primary Measurement Standard

Unlike capacitive or polymer-based sensors, which infer humidity levels based on electrical changes, chilled mirror analyzers physically observe the dew formation. This makes them ideal for calibration laboratories and scientific research facilities.

Unmatched Accuracy and Stability

These analyzers deliver accuracy as fine as ±0.1 °C in dew point temperature, even at ultra-low levels down to -90 °C or lower. They do not drift over time and require far less frequent recalibration than other sensors.

Traceable to National Standards

Chilled mirror analyzers are typically traceable to national standards (e.g., NIST or UKAS), making them the reference choice for validating and calibrating other hygrometers or moisture sensors.

Wide Range of Applications

From deep cryogenic gas monitoring to high-humidity environments, these instruments can handle a wide spectrum of moisture levels, providing flexibility and universal application.

Long Service Life

With proper maintenance and clean gas samples, these analyzers can last for decades, offering excellent return on investment despite higher initial costs.

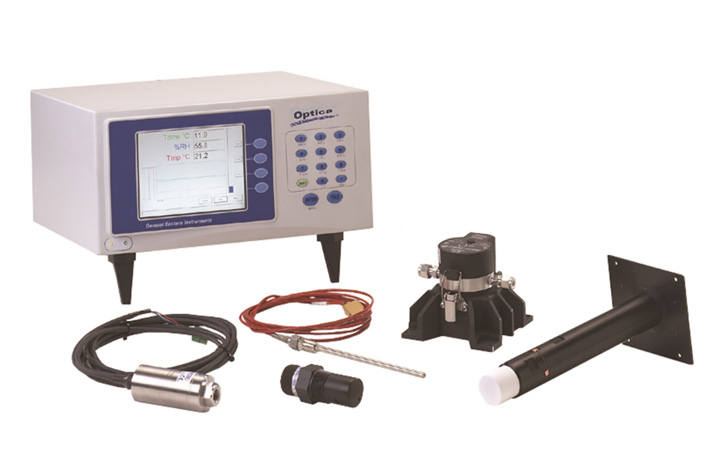

Key Components of a Chilled Mirror Dew Point Analyzer

A typical analyzer consists of the following:

Mirror Assembly: A metal mirror cooled by a thermoelectric cooler

Optical Sensor: Detects condensation on the mirror surface

Temperature Probe: Measures mirror surface temperature accurately

Gas Inlet System: Introduces gas at a controlled pressure and flow

Control Interface: Displays readings and allows system calibration, data logging, and integration with external systems

Sample Conditioning System (optional): Filters, pressure regulators, and flow controllers to prepare gas before analysis

Advanced models may also feature dual mirror systems, automated mirror cleaning, and remote monitoring capabilities, making them suitable for industrial use.

Applications of Chilled Mirror Hygrometer Dew Point Analyzers

These analyzers are used wherever precision in moisture measurement is critical:

Calibration Laboratories

Serving as reference instruments, they are used to calibrate other hygrometers, transmitters, and process sensors, ensuring that field instruments remain accurate and traceable.

Pharmaceutical and Life Sciences

Humidity control in cleanrooms, drying processes, and packaging areas ensures GMP compliance and product stability. Chilled mirror analyzers help maintain environmental control with unmatched reliability.

Power Generation and Utilities

In compressed air systems, insulating gases (e.g., SF₆), and generator enclosures, controlling moisture prevents dielectric failure, corrosion, and system shutdowns.

Semiconductor and Electronics Manufacturing

The extreme dryness required in wafer production and microelectronics demands dew point monitoring down to parts-per-billion (ppb) moisture levels. These analyzers deliver the precision necessary for yield assurance.

Aerospace and Defense

Used in pressurization systems, sealed avionics, and missile technology, these analyzers monitor moisture to prevent icing, corrosion, or electrical issues in high-altitude and high-speed environments.

Cryogenic and Gas Production

In oxygen, nitrogen, argon, or hydrogen production, the presence of moisture can affect purity. Chilled mirror analyzers verify gas dryness during liquefaction and distribution processes.

Maintenance and Operation Considerations

Though highly accurate and durable, chilled mirror analyzers require proper maintenance:

Mirror Cleaning

The mirror surface must remain clean for proper optical detection. Dust, oil, or chemicals can lead to false readings. Periodic cleaning with isopropyl alcohol and lint-free wipes is recommended.

Sample Conditioning

To ensure accurate results, the gas sample must be clean and stable. Use proper filters, regulators, and dryers to remove particulates and ensure consistent pressure and flow.

Mirror Control Algorithms

Modern analyzers use advanced algorithms to prevent overcooling and to stabilize readings. Some feature auto-balance functions to clean or heat the mirror temporarily, reducing the need for manual maintenance.

Limitations and Challenges

While the benefits of these analyzers are clear, they do have some limitations:

Higher Initial Cost: Compared to capacitive sensors, chilled mirror analyzers are more expensive due to their advanced components and construction.

Sensitive to Contaminants: In unfiltered or dirty gas streams, mirror fouling can reduce accuracy and increase maintenance needs.

Slower Response Time: These instruments may take longer to stabilize, especially in environments with rapidly fluctuating humidity.

Despite these challenges, their unparalleled accuracy makes them indispensable in high-precision environments.

Top Brands and Models in the Market

Several reputable manufacturers offer chilled mirror dew point analyzers:

Alpha Moisture Systems (UK) – Trusted in industrial and laboratory applications

Michell Instruments – Offers a range of dew point and moisture analyzers

Edgetech Instruments – Known for portable and rugged models

MBW Calibration – A leader in metrology-grade chilled mirror systems

GE Panametrics (now Baker Hughes) – Offers robust process analyzers with chilled mirror technology

These companies provide models suitable for bench-top use, continuous online monitoring, and portable field operations.

Conclusion

In a world where moisture control can make the difference between success and failure in critical systems, Chilled Mirror Hygrometer Dew Point Analyzers provide the confidence professionals need to succeed. Their unique ability to deliver direct, drift-free, and highly accurate dew point measurements makes them the definitive tool for laboratories, factories, and research institutions worldwide.

Whether calibrating other sensors, ensuring gas purity, or monitoring humidity in extreme environments, these analyzers are the gold standard in dew point measurement.
