How to Choose the Right Concentric Reducer: Practical Selection Guide

Choosing a concentric reducer correctly starts with understanding system pressure, pipe schedule, and the fluid's behavior. This guide explains how to match dimensions, materials, and end connections so the reducer performs reliably and safely. The goal is practical selection—no unnecessary complexity, just the factors that matter for a long service life.

choosing a concentric reducer: quick guide

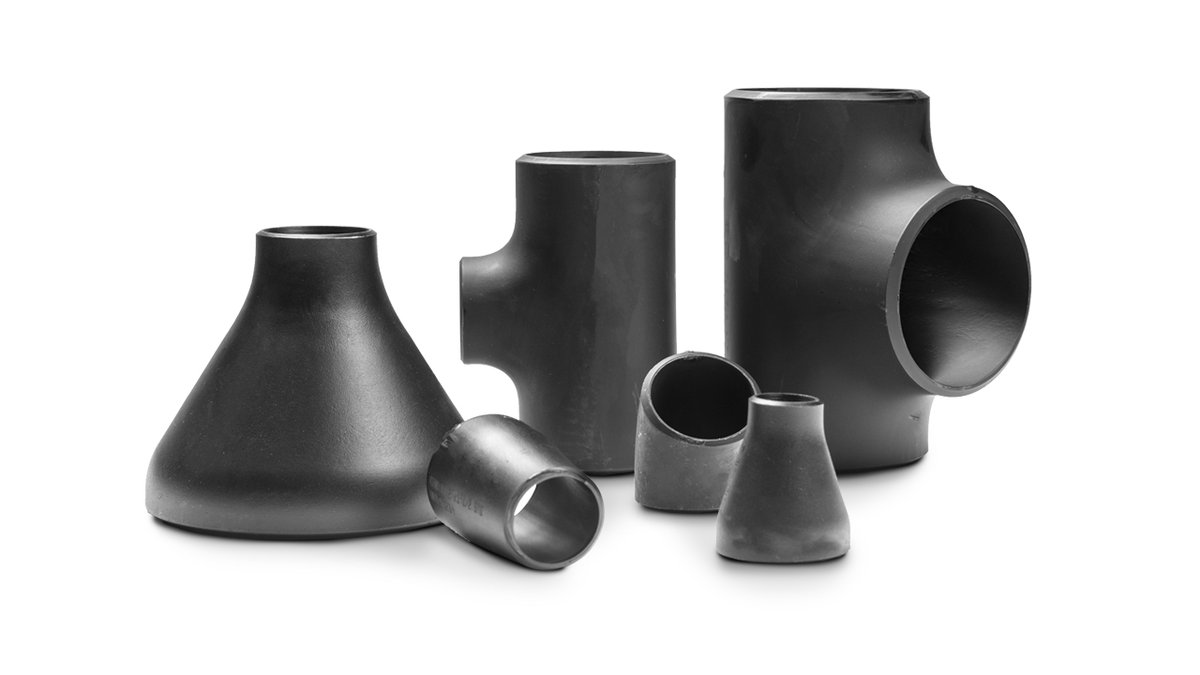

What a concentric reducer does and when to use one

A concentric reducer connects two pipes of different diameters along the same centerline, maintaining axis alignment and creating a gradual change in flow area. Typical uses include transitions between process equipment nozzles and piping, pump inlet reductions, and where symmetric flow is preferred. For sloped or draining lines, an eccentric reducer may be better because it preserves top or bottom clearance, but a concentric reducer is preferred where alignment and uniform velocity profile are priorities.

Key selection factors

1. Size and flow: concentrating on hydraulic impact

Start with a concentric reducer sizing guide based on engineering fundamentals: match nominal pipe sizes (NPS), check pipe schedule and inner diameter, and calculate velocity change. Rapid area reductions can increase velocity and cause erosion or noise; use a longer taper if the Reynolds number and velocity change are large. Check for acceptable pressure drop using basic fluid mechanics or piping software when accuracy is required.

2. Material selection for concentric reducers

Material selection for concentric reducers should follow the fluid compatibility, temperature, and pressure requirements. Common materials include carbon steel (ASTM A234 fittings for welding), stainless steels (for corrosion resistance), and alloys for high temperature or corrosive services. Verify applicable standards and welding procedures and consider lining or cladding for abrasive or corrosive flows.

3. End connections and fabrication

Decide between butt-welded, socket-welded, threaded, or flanged ends depending on pressure class, ease of assembly, and inspection needs. Butt-welds commonly follow ASME piping codes and are typical in high-pressure systems. For low-pressure or temporary lines, threaded or screwed reductions may be acceptable.

FITCHECK checklist (selection framework)

Use the FITCHECK checklist as a repeatable framework:

• F — Flow: required capacity, velocity limits, transient conditions
• I — Inner diameter match: pipe schedule, true I.D., and fittings tolerance
• T — Temperature & pressure: maximums, material ratings, expansion
• C — Corrosion & compatibility: fluid chemistry, erosion potential
• H — Height and alignment: centerline alignment, slope needs
• E — End connections & inspection: weld type, flanges, NDT requirements
• CK — Keep clearances & codes: access, code compliance, documentation

Real-world example

Scenario: A process line reduces from 6" Schedule 40 carbon steel to 4" Schedule 80 stainless steel for connection to a heat exchanger inlet. Steps: verify I.D. for both pipe schedules, calculate velocity increase at design flow, confirm that the stainless reducer material resists the process fluid at operating temperature, and select a butt-weld concentric reducer with a gradual taper to limit erosion. Confirm welding procedure and pressure test according to code.

Practical tips

• Measure the actual inner diameters of the pipes, not only nominal sizes—pipe schedule changes I.D. significantly.
• Choose a longer taper for high-velocity liquids or slurries to reduce erosion and pressure drop.
• Match the metallurgical compatibility of welds—dissimilar metal welds often require filler metal selection and post-weld heat treatment.
• For elevated temperature services, consider thermal expansion and allow adequate clearance or expansion loops.
• Document the selection with material certificates (e.g., mill test reports) and the applicable piping standard references.

Trade-offs and common mistakes

Trade-offs

Shorter reducers save space but increase pressure drop and local velocities. Exotic alloys improve corrosion resistance but raise cost and can complicate welding. Choosing concentric vs eccentric reducers is a trade-off between alignment and drainage or venting needs.

Common mistakes

• Assuming nominal pipe size equals inner diameter—this leads to wrong flow calculations.
• Ignoring pipe schedule differences when mating pipes—can cause misfit or stress at joints.
• Overlooking downstream equipment nozzle orientation, causing misalignment or additional stress.
• Failing to reference the applicable standards for dimensions and pressure ratings.

For dimensional and fabrication standards, consult the code authority applicable to the project; for example, general piping and fittings guidance is maintained by ASME (see the ASME codes and standards overview: https://www.asme.org/codes-standards).

Core cluster questions

• How is a concentric reducer sized for a given flow rate?
• What materials are commonly used for concentric reducers in corrosive services?
• When should a concentric reducer be replaced with an eccentric reducer?
• How do pipe schedule and nominal size affect reducer selection?
• What inspection and testing are required after installing a welded concentric reducer?

FAQ

How to start choosing a concentric reducer?

Begin with the FITCHECK checklist: verify flow requirements and actual inner diameters, confirm temperature and pressure ratings, select compatible materials and end connections, and ensure the taper length suits velocity and erosion considerations. Always cross-check against code requirements and document material certifications.

What is the difference between a concentric reducer and an eccentric reducer?

A concentric reducer keeps the pipe centerlines aligned and is best for vertical transitions and where symmetric flow is needed. An eccentric reducer offsets the centerline to maintain top or bottom clearance—useful for drainage or to avoid air pockets.

How does pipe schedule affect reducer selection?

Pipe schedule changes inner diameter even at the same nominal size. Reducers must be matched to the actual inner diameters or use transition spools to reconcile differences. Check pipe I.D. tables before specifying a reducer.

Can reducers be used in high-pressure systems?

Yes, when selected to the appropriate pressure class and fabricated to code (e.g., butt-welded and inspected per ASME requirements). Ensure the chosen material and weld procedure are rated for the maximum operating pressure and temperature.

How to calculate pressure drop through a concentric reducer?

Estimate pressure drop by treating the reducer as a gradual area change: use energy equations (Bernoulli with head loss terms) or empirical loss coefficients from piping references. For large changes or critical systems, run a computational fluid dynamics (CFD) check or consult piping design software.
