Arduino Shields Guide: How to Choose, Use, and Combine Shields for Any Project

Detected intent: Informational

This Arduino shields guide explains what shields are, how they expand hardware capability, how to choose compatible modules, and practical techniques for integrating shields into microcontroller projects. That includes common form factors, interface types (I2C, SPI, UART), and the trade-offs between convenience and flexibility.

What are shields and why use them?

Shields are printed circuit boards designed to plug into an Arduino or compatible board to add a discrete capability—communication interfaces, motor drivers, power regulation, sensors, displays, or wireless modules. The Arduino shields guide clarifies that shields are distinct from generic modules or breakout boards by their matching header layout and stackable form factor, which simplifies physical integration and library support.

Types of shields and common interfaces

Shield categories

• Sensor shields — add multiple analog/digital sensor inputs and often simplify wiring.
• Motor and driver shields — provide H-bridges, current sensing, and power routing for DC motors and steppers.

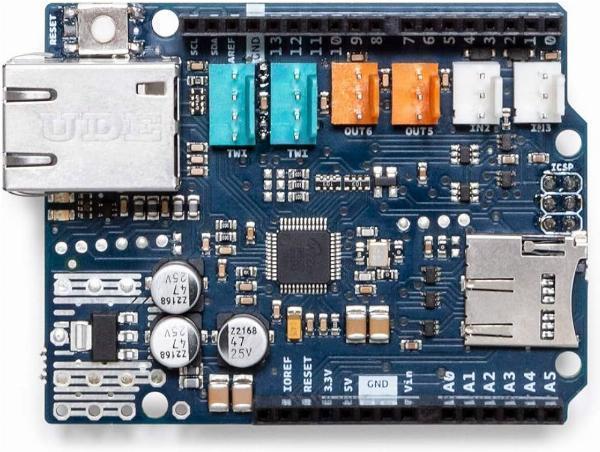

• Communication shields — Ethernet, Wi-Fi, Bluetooth, LoRa, cellular interfaces.
• Display shields — character or graphical LCD/OLED interfaces with backlight control.
• Power and prototyping shields — regulated power supplies, protoboard areas, or extra connectors.

Interfaces and signals

Shields typically use Arduino-compatible headers and communicate using digital I/O, analog inputs, I2C, SPI, UART, or PWM. When evaluating Arduino shield types, confirm which bus or pins are required and whether multiple shields can share the same bus without conflict.

SHIELD compatibility checklist (framework)

Use the SHIELD checklist to verify a shield before purchase or integration. This named framework organizes the most important compatibility checks.

• Size & form factor — Will the shield physically fit the board (Uno, Mega, Nano, etc.)?
• Headers & pinout — Are the pin headers in the right positions, and do pin names match?
• Interfaces required — Which buses (I2C, SPI, UART, PWM) are used and are they free?
• Electrical limits — Check voltage levels, current draw, and power sequencing.
• Libraries & software — Is there an existing library and examples for the target board?
• Documentation & community — Are datasheets, wiring diagrams, and community support available?

How to use a shield: practical steps

Follow this short procedural checklist when integrating a shield into a project:

1. Confirm form factor compatibility (Uno vs Mega header spacing).
2. Power the base board and shield carefully; verify voltage rails before connecting high-current devices.
3. Install any required libraries from the Arduino Library Manager or vendor repository.
4. Run example sketches to validate basic functionality before adding application logic.
5. Test one subsystem at a time (e.g., sensor read, then communication, then motor control).

Real-world example: building a remote environmental logger

Scenario: A compact outdoor logger needs temperature, humidity, SD logging, and LoRa radio for data transmission. Using the SHIELD checklist, select an SD shield with the correct SPI pins, a sensor breakout shield for I2C, and a LoRa communication shield that exposes the necessary SPI and DIO pins. Stack order matters: place power regulation and SD closer to the main board and position the radio so external antenna connections remain accessible. After assembly, verify SPI bus devices with simple examples and ensure libraries (SD, LoRa, sensor) do not create pin conflicts.

Trade-offs and common mistakes

Trade-offs

Shields provide quick assembly and often include ready-made libraries, but they trade off flexibility and compactness. A shield that integrates multiple features (power, sensors, communications) is convenient but may be overkill when only a single function is needed. Using multiple shields is fast but can create pin and bus conflicts.

Common mistakes

• Assuming every shield fits every Arduino variant — not all headers align the same way across boards.
• Neglecting power budgets — motors and radios can draw bursts that require separate power supplies or decoupling.
• Missing library or example compatibility — many shields require specific library versions or configuration to work.
• Stacking without checking interrupts or shared pins — SPI device select and interrupt pins often need reassignment.

Practical tips for reliable shield projects

• Label headers and document any jumper settings or solder bridges to avoid later confusion.
• Use stacked header spacers to avoid short circuits and allow access to pins beneath shields.
• Test with the most minimal configuration first: power + one shield + example sketch.
• Keep replacement wiring and a multimeter on hand to check voltage rails and signal continuity.

Core cluster questions

• How to check if a shield is compatible with Arduino Uno or Mega?
• When should a module be used instead of a shield?
• How do shared buses like I2C and SPI affect multiple shield use?
• What power considerations are critical for motor or radio shields?
• How to debug library and pin conflicts between stacked shields?

Standards, resources, and further reading

Refer to official documentation for board pinouts and product specifications to confirm mechanical and electrical compatibility. The Arduino product pages document common board form factors and official shield offerings: Arduino products and boards.

Conclusion

Shields speed up prototyping and reduce wiring complexity, but reliable integration requires verifying physical fit, electrical limits, and software support. Use the SHIELD compatibility checklist to evaluate options, validate each subsystem, and follow the practical tips above to avoid common pitfalls.

What is an Arduino shields guide?

An Arduino shields guide explains the purpose of shields, common types, form factors, and how to select and integrate them into projects safely and effectively.

How do Arduino shield types differ from modules or breakout boards?

Shields match Arduino header layouts and are designed to stack; modules or breakout boards are typically smaller, require wiring to headers, and offer more flexibility for custom placement.

How to avoid pin conflicts when stacking shields?

Identify shared signals (SPI/I2C) and reserved pins, consult documentation for default chip select and interrupt assignments, and reassign pins or use jumpers when supported by the shield libraries.

How can power problems be prevented with high-current shields?

Calculate peak current needs, provide separate power supplies or use shields with on-board regulation and heat dissipation, and add decoupling capacitors close to high-draw components.

Where to find more detailed Arduino shields guide examples and form factor specs?

Official board and product pages list form factors, pinouts, and product specs that support compatibility checks and best-practice selection for shields.
