Seiko NH36 Movement Kit Guide: What’s Inside, How It Fits, and Trade-offs

The Seiko NH36 movement kit is a widely used mechanical movement option for hobbyists and watchmakers working on Seiko-compatible cases. This guide explains what a typical NH36 kit includes, how to evaluate compatibility, and practical steps that reduce risk when swapping movements.

Detected intent: Commercial Investigation

Seiko NH36 movement kit: what's included and key specifications

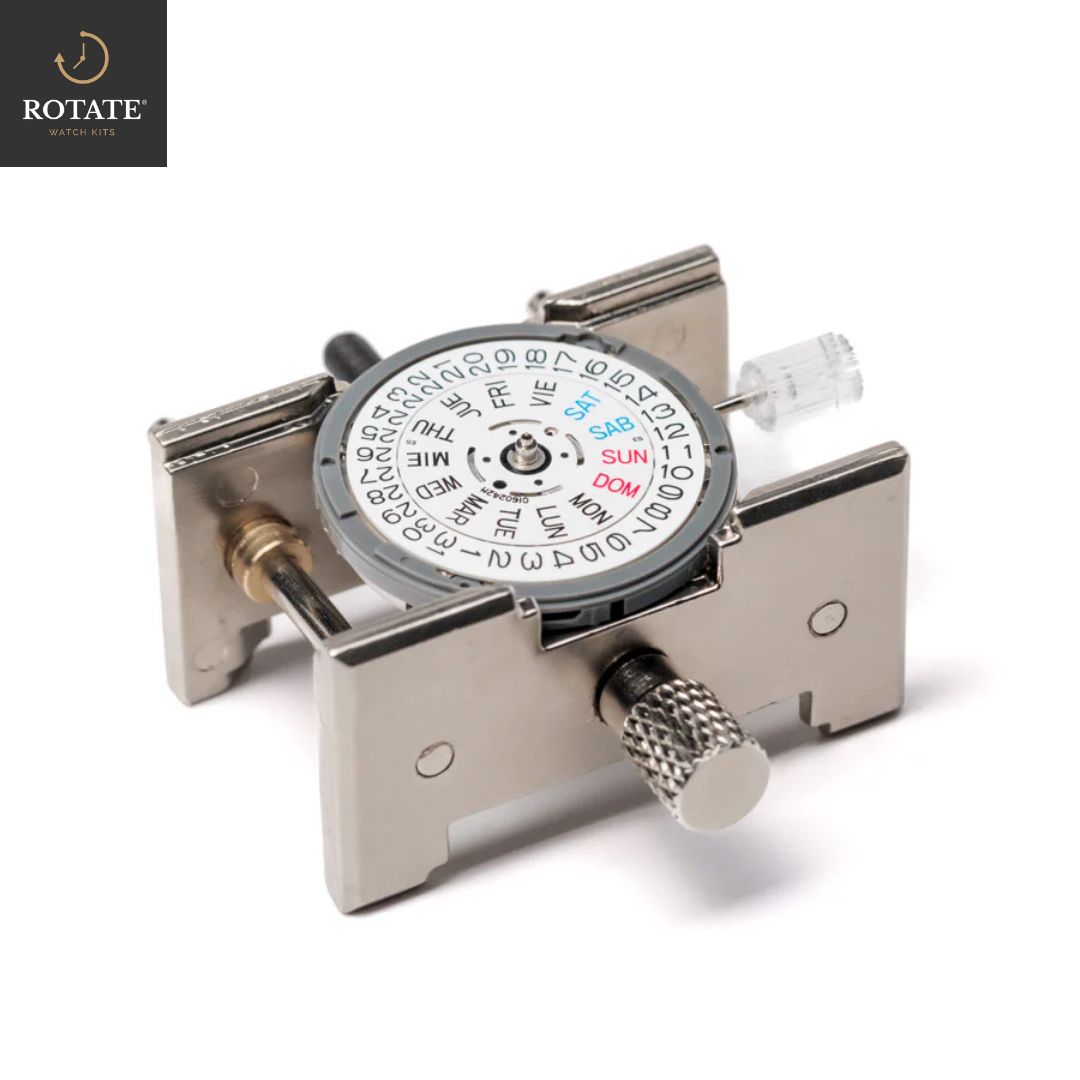

A standard Seiko NH36 movement kit generally contains the NH36 movement (automatic, 3 Hz/21,600 bph), a pallet fork and balance assembly already installed, a date and day wheel, winding stem(s), and a set of dial feet screws or clamps. Kits sold for DIY use commonly include a simple mounting spacer or case tube, plus stem shims or multiple stem sizes to help match different cases. When evaluating a kit, confirm the movement diameter (usually 27.4 mm), thickness, hand pinion sizes, and calendar quick-set positions.

For official movement specifications and technical notes, consult manufacturer documentation or trusted service manuals from a recognized source. See Seiko's official technical resources for reference: Seiko Watch official site.

Compatibility and NH36 movement installation considerations

Compatibility depends on case diameter, dial foot locations, hand sizes, stem length, and calendar alignment. The secondary keyword "NH36 movement installation" applies to those steps that involve matching stem length and fitting the dial feet to the movement. Confirm the following before purchase:

• Case inner diameter vs. movement diameter.
• Dial feet positions or ability to reposition feet.
• Hand hole sizes (hour/minute/second) and hand press compatibility.
• Stem length and crown compatibility; many kits include multiple stems for adaptation.

Movement Swap Checklist (Inspect → Fit → Test)

Use the Movement Swap Checklist to reduce errors. This named checklist follows three stages and five checkpoints:

• Inspect: Check movement serial, visible damage, and running status on a timing machine if available.
• Fit: Dry-fit the movement into the case without screws; verify dial-foot alignment and stem fit.
• Adjust: Trim or replace the stem, set the hands and ensure calendar alignment.
• Seal: Fit caseback gasket and verify crown tube engagement to preserve water resistance.
• Test: Wear test, positional rate checks, and calendar change test across midnight.

Real-world example: swapping an NH36 into a Seiko-style case

A hobbyist replaced a dead 7S26 movement with an NH36 kit to add a quick-set day function. After confirming the case inner diameter accepted the 27.4 mm movement, the dial feet were loosened and re-set on the NH36. A shorter stem from the kit was used, trimmed to length, and the hands were pressed using a bench hand-setter. The calendar disk required minor indexing so the day changed exactly at midnight. After pressure-testing the crown seal and testing over 48 hours, the movement showed stable rates within expected tolerances.

Practical tips for a smooth NH36 swap

• Work on a clean, well-lit bench with a non-magnetic mat and proper tweezers to avoid contaminating the movement.
• Always check hand friction and winding resistance before closing the case—sticky hands or binding usually predict future problems.
• Use a dial protector sheet when pressing hands to avoid scratching painted dials or lume on indices.
• Label and keep small screws organized; a single misplaced dial foot screw can change hand alignment and generate extra friction.

Common mistakes and trade-offs

Common mistakes include incorrect stem trimming, using hands with incompatible hole sizes, and failing to re-lubricate the keyless works if the movement has been handled extensively. Trade-offs when choosing an NH36 kit versus a service from a professional are cost and time versus guaranteed water-resistance and timing optimization. For example, DIY swaps save money but require tools and skill to maintain water resistance and correct calendar indexing.

When to choose a movement kit and when to seek professional service

Choose a movement kit when the objective is repair or upgrade on an affordable mechanical watch, and when there is confidence in basic watchmaking tools and procedures. Seek professional service if the watch has significant value, vintage components that require preservation, or if precise timing is critical. The secondary keyword "watch movement replacement kit" captures the decision-making process between DIY and professional service.

Core cluster questions

• How does NH36 compare to NH35 and 4R36 in terms of features and accuracy?
• What hand sizes and pinion diameters are compatible with NH36 movements?
• How to index the day/date wheel correctly after installing an NH36?
• What tools are essential for a safe movement swap at home?
• How to check and adjust timekeeping accuracy after installing an NH36?

Final checks before sealing the case

Before closing the case, perform these final checks: ensure hands clear the chapter ring at all positions, verify quick-set functions work without grinding, confirm the crown winds and sets smoothly, and perform a basic amplitude/readout if a timing machine is available. If pressure testing is required, perform it after gasket replacement to preserve water resistance.

FAQ

What does a Seiko NH36 movement kit include?

A typical kit includes the NH36 movement, one or more stems, dial feet screws or clamps, and sometimes a spacer or tube. Kits vary by supplier, so verify included parts before purchase.

Can the NH36 be used as an upgrade from NH35?

Yes. The NH36 adds a day wheel and quick-set day function compared with the NH35; mechanical dimensions are similar but verify dial and hand compatibility.

How difficult is NH36 movement installation for a beginner?

Difficulty is moderate. Basic hand-setting, stem trimming, and patience are required. Beginners should practice on donor movements and follow the Movement Swap Checklist to reduce errors.

How to trim a stem to fit the NH36?

Measure the required length by dry-fitting the movement and crown in the case, mark the stem, then carefully cut and file the end square. Test engagement in the keyless works before final assembly.

How to check timekeeping accuracy after installing a Seiko NH36 movement kit?

Use a watch timing machine for the most accurate assessment. Alternatively, wear the watch for 24–48 hours and compare daily gain or loss. Check positional variance and repeat the test after settling-in to ensure consistent amplitude and rate.
