Butterfly Control Valves: Types, Maintenance, and Troubleshooting

Introduction

Butterfly control valves are quarter-turn flow control devices widely used across a broad range of industries for regulating fluid flow in pipelines. These China Control Valves operate using a rotating disc mounted on a central shaft that turns to either restrict, allow partial, or permit full fluid passage. Their compact design, fast actuation, and cost-effectiveness make them particularly popular in HVAC systems, water treatment plants, chemical processing units, and general industrial pipelines.

Thanks to their simple construction and high flow capacity, butterfly valves offer advantages over many other valve types. However, consistent maintenance and timely troubleshooting are essential to ensure peak performance, minimize system downtime, and extend valve life.

This article explores the different types of butterfly control valves, common operational challenges, and the key maintenance practices needed to optimize performance.

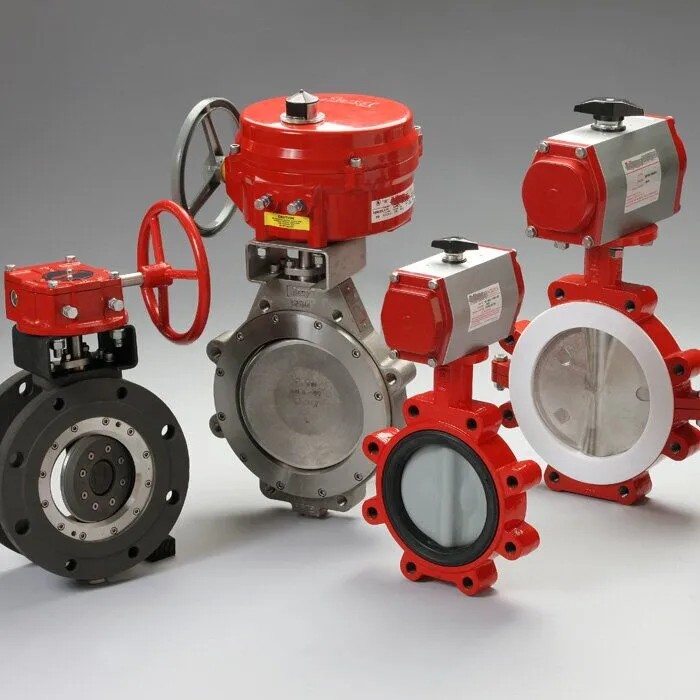

Types of Butterfly Control Valves

Butterfly valves are available in three main types—wafer, lug, and flanged—each designed to meet specific installation needs and pressure conditions.

1. Wafer Type Butterfly Valves

Wafer-style valves are compact and economical, designed to sit between two pipe flanges. They rely on flange bolts to secure the valve in place, without the need for threaded connections.

Applications: HVAC systems, water distribution, wastewater management

Advantages:

Lightweight and space-saving

Easy to install and remove

Low cost

Limitations:

Not ideal for high-pressure applications

Limited isolation capability during maintenance

2. Lug Type Butterfly Valves

Lug-type valves feature threaded inserts (lugs) that allow independent bolting to each flange, enabling pipeline disconnection on one side without disturbing the other.

Applications: Chemical plants, oil & gas systems, pipelines requiring sectional maintenance

Advantages:

Allows one-sided maintenance

Suitable for higher pressure applications

Stronger mounting support

Limitations:

Heavier and more expensive than wafer type

3. Flanged Type Butterfly Valves

Flanged butterfly valves come with integral flanges, bolted directly to the pipeline for a robust, sealed connection. These valves are built for demanding applications with high pressure or temperature.

Applications: Power plants, oil refineries, high-load industrial operations

Advantages:

High durability and pressure resistance

Superior sealing performance

Long service life in harsh conditions

Limitations:

Larger and heavier

Higher upfront cost

Maintenance of Butterfly Control Valves

Effective maintenance practices ensure long-term performance, reduce operational disruptions, and prevent premature failures. Key maintenance tasks include:

1. Routine Inspection

Regular inspections help identify early signs of wear or malfunction:

Valve Body: Check for corrosion, cracks, or leaks

Disc: Look for debris, warping, or scale buildup

Stem: Ensure proper alignment and lack of wear

Seat: Inspect for deterioration or damage

Actuator: Verify responsiveness and connection integrity

2. Lubrication

Although the valve body may not need lubrication, actuators—especially pneumatic types—require periodic lubrication for smooth operation.

Use only manufacturer-recommended lubricants

Avoid over-lubrication to prevent contaminant buildup

Periodically clean and service actuator internals

3. Cleaning and Debris Removal

Dirt, rust, or scale can restrict disc movement and degrade sealing.

Flush the system as needed

Use non-abrasive cleaners for internal parts

Avoid harsh tools that could scratch sealing surfaces

4. Packing and Seal Maintenance

Worn or improperly adjusted packing can lead to leakage and control issues.

Gradually tighten packing bolts to prevent over-compression

Replace damaged gaskets and seals with fluid-compatible materials

5. Actuator Care

Proper actuator operation is critical for valve reliability:

Confirm actuator-stem alignment

Test and recalibrate as needed

Replace worn or malfunctioning actuator components

Troubleshooting Common Issues

Even with maintenance, problems may occasionally arise. Here are typical issues and their fixes:

1. Leakage Around Seat or Body

Cause: Worn-out seals or misalignment

Solution: Replace seals, realign the disc, and retorque flange bolts

2. Sticking or Jammed Disc

Cause: Internal debris or actuator fault

Solution: Clean the disc and valve interior; check actuator calibration and stem condition

3. Irregular Flow Control

Cause: Misaligned disc or actuator error

Solution: Recalibrate actuator; verify signal accuracy and disc movement

4. Vibration or Noise During Operation

Cause: Loose fittings or poor installation

Solution: Secure all hardware, confirm proper pipe support, and review installation against valve specifications

Conclusion

Butterfly control valves remain a go-to solution in fluid handling systems due to their efficiency, affordability, and versatility. However, their long-term reliability depends on proactive maintenance and the ability to quickly resolve operational issues.

By conducting routine inspections, maintaining actuator health, and addressing problems early, operators can significantly reduce downtime and extend the valve's lifespan. Whether used in HVAC, chemical processing, or energy sectors, a well-maintained butterfly valve is an indispensable asset to any pipeline system.Know more about Google SEO Directory
