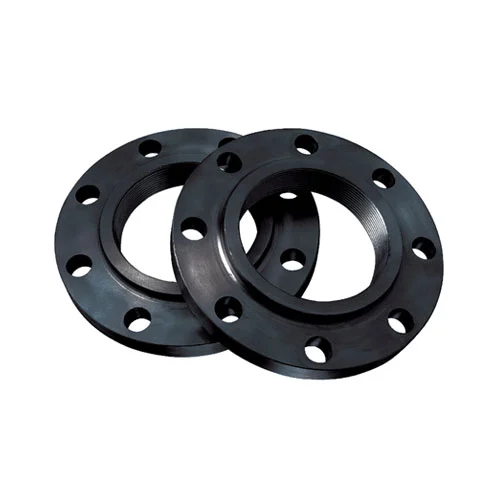

ASTM A694 F65 Flanges – High-Strength Flanges for Demanding Applications

In the world of high-pressure transmission systems, ASTM A694 F65 flanges stand out for their strength, toughness, and reliability. Designed to handle severe working conditions, these flanges are an essential component in industries like oil and gas, petrochemicals, power generation, and offshore drilling. Whether it's transporting natural gas or crude oil through long pipelines or handling aggressive fluids, ASTM A694 F65 flanges ensure durability and optimal performance under stress.

🔍 What is ASTM A694 F65?

ASTM A694 is a specification from ASTM International that covers carbon and alloy steel forgings for pipe flanges, fittings, valves, and other high-pressure transmission parts. The F65 grade indicates a minimum yield strength of 65,000 psi (450 MPa), making it a high-yield carbon steel grade suitable for extreme environments and critical applications.

🛠️ Types of ASTM A694 F65 Flanges

ASTM A694 F65 flanges are available in various configurations to accommodate different piping requirements:

1. Weld Neck Flanges (WN)

o Ideal for high-pressure and high-temperature systems

o Long tapered hub provides reinforcement

2. Slip-On Flanges (SO)

o Easy to align and install

o Used in lower-pressure applications

3. Blind Flanges (BL)

o Seal off the end of a piping system or pressure vessel

o Allow future modifications or inspections

4. Socket Weld Flanges (SW)

o Ensure a strong connection for small-diameter high-pressure pipes

5. Threaded Flanges (TH)

o Useful where welding is not practical or desirable

6. Lap Joint Flanges (LJ)

o Used with stub ends for applications needing frequent dismantling

7. Orifice Flanges

o Used in flow measurement applications

⚙️ Key Mechanical Properties

• Minimum Yield Strength: 65,000 psi (450 MPa)

• Tensile Strength: 80,000 psi (550 MPa) or greater

• Hardness: Controlled to avoid embrittlement

• Impact Toughness: Enhanced for resistance in cold and dynamic conditions

• Heat Treatment: Normalized, Quenched & Tempered, or Thermo-Mechanically Treated

🌐 Industrial Applications

Because of their superior mechanical properties and resistance to pressure and temperature extremes, ASTM A694 F65 flanges are widely used in:

• Oil & Gas Transmission Lines

• Petrochemical Plants

• Offshore Drilling Rigs

• Power Generation Plants

• Refineries and Process Plants

• High-pressure steam and fluid systems

✅ Key Advantages of ASTM A694 F65 Flanges

• High Strength-to-Weight Ratio: Suitable for critical pipeline connections

• Reliable Performance: Withstands extreme pressures without deformation

• Weldability: Excellent weldability for installation in complex piping systems

• Impact Resistance: Effective in low-temperature service environments

• Longevity: Extended service life with proper coating and maintenance

📏 Available Standards and Specifications

ASTM A694 F65 flanges conform to a wide range of international flange standards:

• ASME B16.5 – For sizes up to 24 inches

• ASME B16.47 – For large diameter flanges (Series A & B)

• API 6A / API 6D – Common in oil & gas pipeline applications

• EN, DIN, and JIS – Available for global compatibility

🔒 Testing & Quality Assurance

Before being deployed in critical operations, ASTM A694 F65 flanges are subject to rigorous testing:

• Ultrasonic Examination

• Charpy Impact Test (as required)

• Hardness Testing

• Hydrostatic Testing

• Chemical and Mechanical Analysis

These tests ensure that the flanges meet or exceed the safety and quality standards required by industry and regulatory bodies.

🧩 Conclusion

ASTM A694 F65 flanges are engineered for strength, endurance, and dependability. Whether you're working on a high-pressure gas pipeline or a petrochemical processing plant, choosing F65-grade flanges means selecting a component that can withstand some of the harshest environments in the industrial world.

When quality and performance are non-negotiable, ASTM A694 F65 flanges deliver. Be sure to source them from reputable manufacturers who comply with ASTM, ASME, and API standards to ensure safety, consistency, and value.
