Carbon Steel Flanges Stockiest in Bahrain

In critical applications where strength, durability, and performance in low-temperature environments are required, ASTM A350 LF2 Carbon Steel Flanges stand out as a preferred choice. These flanges are specifically engineered to maintain toughness and impact resistance under sub-zero conditions, making them vital in industries like oil & gas, petrochemicals, and power generation.

This article provides a comprehensive overview of ASTM A350 LF2 Flanges, their integration with carbon steel materials, and their key applications across various sectors.

What is ASTM A350 LF2?

ASTM A350 LF2 is a specification set by the American Society for Testing and Materials (ASTM) that covers forged carbon steel flanges, fittings, valves, and other piping components intended for low-temperature service. The “LF2” designation refers to Class 1 or Class 2 materials with defined mechanical properties, including notch toughness measured by Charpy impact testing.

Key Features of ASTM A350 LF2:

• Material: Forged carbon steel

• Class: LF2 Class 1 (most common), LF2 Class 2

• Temperature Range: -46°C to 345°C (low-temperature applications)

• Manufacturing: Forged, normalized, quenched, and tempered

Carbon Steel Flanges Overview

Carbon steel is an alloy primarily composed of iron and carbon, often with additional elements like manganese and silicon. It is widely used for flange manufacturing due to:

• High strength and toughness

• Cost-effectiveness

• Good weldability and machinability

• Compatibility with various coatings for corrosion protection

When used with ASTM A350 LF2 specifications, carbon steel offers enhanced performance in cryogenic and sub-zero environments.

Types of ASTM A350 LF2 Carbon Steel Flanges

ASTM A350 LF2 flanges are available in multiple types to serve diverse industrial needs:

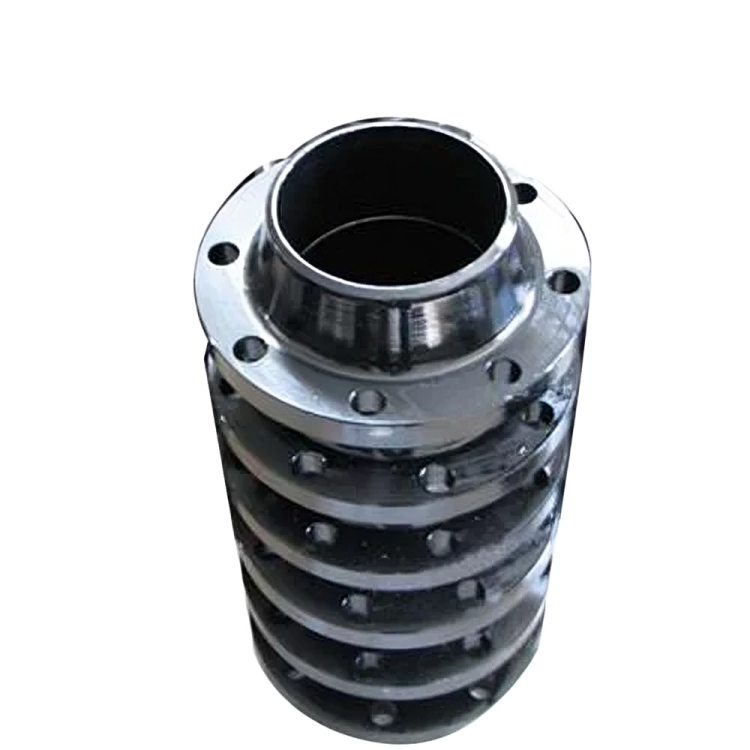

1. Weld Neck Flanges (WN)

o Long tapered hub for high-pressure pipelines

o Excellent for severe service conditions

2. Slip-On Flanges (SO)

o Slid over the pipe and welded both inside and outside

o Economical and easy to install

3. Blind Flanges (BL)

o Used to seal the end of pipelines or vessels

o Facilitates maintenance and inspection

4. Socket Weld Flanges (SW)

o Ideal for small-bore piping with high-pressure systems

5. Threaded Flanges (TH)

o Screwed onto piping without welding

o Common in low-pressure applications

6. Lap Joint Flanges (LJ)

o Used with stub ends for systems requiring frequent disassembly

7. Ring Type Joint Flanges (RTJ)

o Sealed with a metal ring gasket

o Suitable for high-pressure, high-temperature pipelines

Applications of ASTM A350 LF2 Carbon Steel Flanges

Due to their low-temperature toughness, ASTM A350 LF2 flanges are highly valued in applications such as:

• Oil & Gas Pipelines

• Petrochemical Plants

• Cryogenic Process Systems

• Power Plants

• Offshore Drilling Platforms

• LNG Terminals

• Refineries

Standards & Specifications

• ASTM Specification: ASTM A350 / ASME SA350

• Size Range: ½″ to 60″ NB

• Pressure Ratings: Class 150, 300, 600, 900, 1500, 2500

• Design Standards: ASME B16.5, B16.47 Series A/B, MSS-SP-44

• Testing Standards: Charpy V-notch Impact Test, Hardness Test, Hydrostatic Test

Advantages of ASTM A350 LF2 Carbon Steel Flanges

• Low-Temperature Performance: Designed to retain impact strength even at -46°C

• High Strength & Ductility: Suitable for high-stress applications

• Cost-Effective: More affordable than alloy/stainless alternatives

• Weldable & Machinable: Simplifies fabrication and on-site installation

• Corrosion Resistant: Can be coated or galvanized for enhanced longevity

Conclusion

ASTM A350 LF2 Carbon Steel Flanges are a reliable and efficient solution for piping systems that demand durability under low-temperature and high-pressure conditions. Their adaptability, mechanical integrity, and cost-effectiveness make them essential components in industries where safety and performance are paramount. Engineers and plant operators trust these flanges to ensure the stability and longevity of mission-critical systems across the globe.
