Inconel 718 Flanges: Superior Performance in High-Temperature Applications

Inconel 718 flanges are high-strength, corrosion-resistant components widely used in high-temperature and high-pressure environments. Manufactured from a nickel-chromium alloy containing significant amounts of niobium, molybdenum, and iron, these flanges exhibit excellent mechanical properties, weldability, and resistance to oxidation and corrosion. Inconel 718 is especially notable for its ability to maintain strength at temperatures up to 700°C, making it ideal for aerospace, nuclear, marine, and oil & gas applications.

Key Features of Inconel 718 Flanges

1. High Strength & Durability

Inconel 718 flanges possess superior tensile, yield, and creep-rupture strength. The addition of niobium allows for precipitation hardening, making these flanges significantly stronger than many other superalloys.

2. Corrosion & Oxidation Resistance

These flanges provide outstanding resistance to a wide range of corrosive environments, including acidic, saline, and oxidizing conditions, making them suitable for offshore platforms, chemical plants, and aerospace engines.

3. Excellent Weldability

Unlike many other nickel-based alloys, Inconel 718 can be welded without cracking, due to its balanced composition and the presence of niobium. Post-weld heat treatment enhances mechanical properties and relieves residual stress.

4. Wide Temperature Range

Inconel 718 flanges maintain their mechanical integrity from cryogenic conditions up to 700°C, making them suitable for both deep-sea and high-temperature industrial environments.

Types of Inconel 718 Flanges

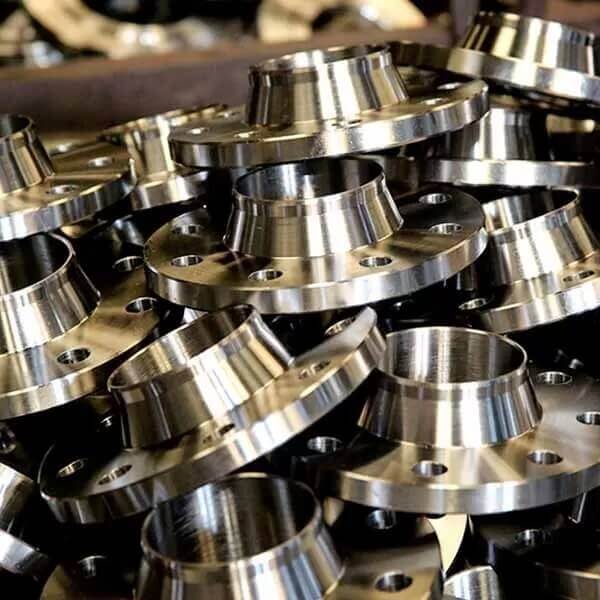

• Weld Neck Flanges (WN) – Ideal for high-pressure systems; the tapered neck provides excellent stress distribution.

• Slip-On Flanges (SO) – Easy to install and widely used in lower pressure applications.

• Blind Flanges (BL) – Used to seal pipe ends and pressure vessels.

• Socket Weld Flanges (SW) – Suitable for small-diameter high-pressure piping.

• Lap Joint Flanges (LJ) – Paired with stub ends, ideal for systems requiring frequent dismantling.

• Threaded Flanges (TH) – Used in systems where welding is not feasible.

• Ring Type Joint Flanges (RTJ) – Designed for high-pressure and high-temperature applications.

• Long Weld Neck Flanges (LWN) – Provide additional reinforcement in high-stress applications.

• Nipoflanges, Spacer Flanges, and Reducing Flanges – Custom solutions for specialized configurations.

Standards and Specifications

• Material Standard: ASTM B564 / ASME SB564

• Size Range: ½” NB to 60” NB

• Pressure Ratings: Class 150 to 2500, PN6 to PN64

• Flange Standards:

o ASME B16.5

o ASME B16.47 Series A & B

o ASME B16.48

o EN 1092-1 / DIN / BS4504 / ISO / JIS

Applications of Inconel 718 Flanges

• Aerospace Industry – Gas turbines, jet engines, rocket motors, and aircraft ducting systems.

• Oil & Gas – Subsea equipment, wellhead assemblies, and sour gas environments.

• Nuclear Reactors – Ideal for components exposed to extreme thermal and radiation conditions.

• Power Generation – Steam turbines, heat exchangers, and boiler feed systems.

• Marine Engineering – Seawater piping, desalination plants, and naval propulsion systems.

• Chemical Processing – Reactors, valves, and pumps handling corrosive fluids.

Benefits of Choosing Inconel 718 Flanges

• Long service life in extreme environments

• Reduced maintenance and downtime

• Excellent mechanical stability across a wide temperature range

• Enhanced safety due to robust and crack-resistant structure

Conclusion

Inconel 718 flanges are a reliable and versatile choice for demanding industrial applications where conventional materials fail. Their unmatched performance in extreme conditions makes them an asset in sectors where safety, strength, and longevity are critical. Whether used in deep-sea exploration or space technology, Inconel 718 flanges offer the durability and resilience that modern engineering demands.
