How Fire Alarm Control Panels Work: Types, Maintenance, and Troubleshooting Guide

Fire Alarm Control Panel: What it Is and Why It Matters

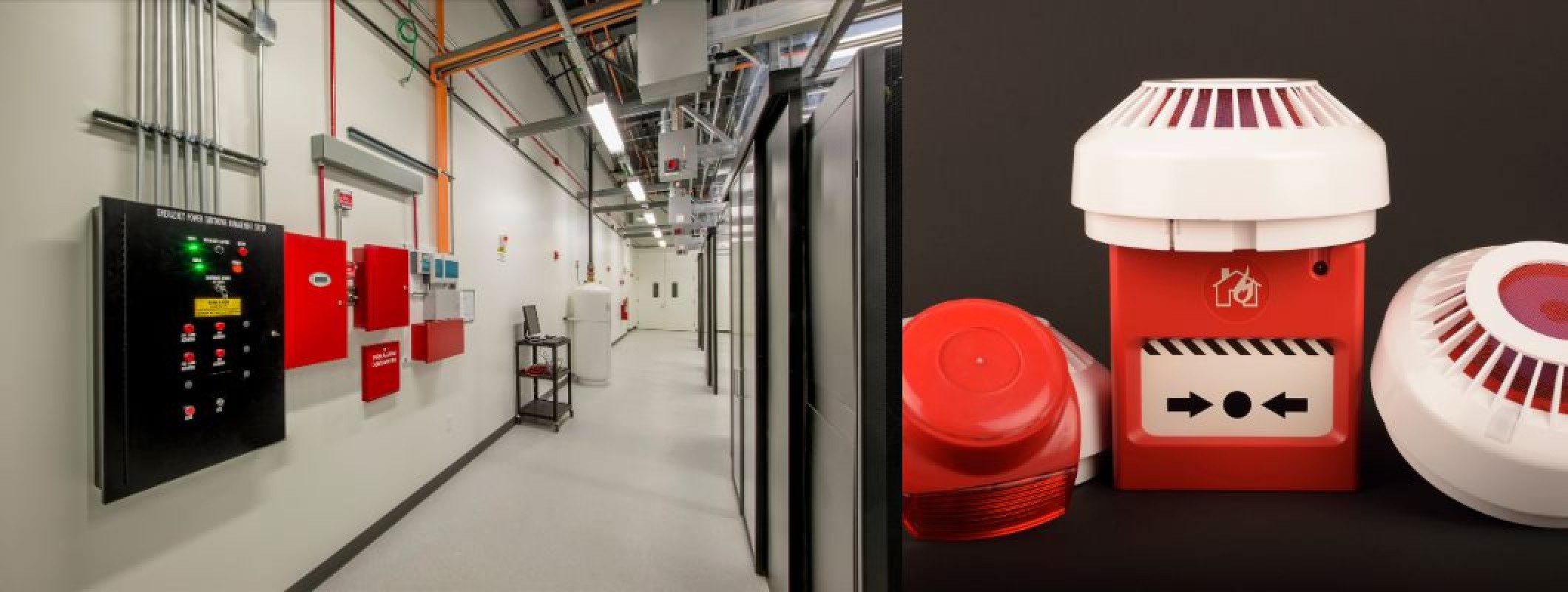

A fire alarm control panel is the central hub that monitors detectors, manages notification devices, logs events, and connects a building to emergency response systems. Understanding the fire alarm control panel helps facilities managers, electricians, and building owners select the right type, establish a maintenance routine, and respond correctly when an alarm activates.

How a fire alarm control panel works

The panel receives signals from smoke detectors, heat detectors, pull stations, and supervisory devices. It interprets those signals via built-in logic, triggers notification appliances (horns, strobes), controls relays for fire doors or HVAC shutdown, and records events in an event log. Modern panels support networked communications, remote monitoring, and programmable outputs for building automation integration.

Core components

• Power supply and battery backup (for standby and alarm power)
• Input circuits for detectors and manual initiating devices
• Notification appliance circuits (NACs) for horns/strobes
• Control relays for fans, dampers, elevators
• User interface: indicators, keypad, display and event log

Types of panels: conventional, addressable, and intelligent

Choosing between a conventional and an addressable fire alarm panel depends on building size, zoning needs, and response requirements. Conventional panels monitor zones—if any device in a zone activates, the panel only shows the zone. Addressable fire alarm panel systems assign IDs to individual devices, enabling precise location data and faster response. Intelligent systems add advanced diagnostics and programmable logic.

When to pick each type

• Small buildings or simple layouts: conventional panels are economical and straightforward.
• Larger or complex facilities: addressable panels reduce false alarms and speed trouble-shooting.
• Critical infrastructure with integration needs: intelligent/networked panels support building management and remote monitoring.

Maintenance checklist: S.A.F.E.R. maintenance checklist

Use the S.A.F.E.R. checklist to keep the panel reliable and code-compliant.

• Schedule inspections: monthly visual checks and annual full service by qualified technicians.
• Assess zone and device configuration: verify labels, zone maps, and device addresses match documentation.
• Function tests: exercise notification appliances and control outputs, and verify battery charging and failure alarms.
• Evaluate logs and fault history: clear and archive event logs after investigation.
• Record maintenance: keep dated reports, test results, and certificates for compliance audits.

Following a documented framework like S.A.F.E.R. aligns with common regulatory expectations and helps reduce false alarms and downtime.

Practical tips for maintenance and operation

• Keep accurate, up-to-date zone maps and device lists near the panel and in the facility management system.
• Test battery backup under load at least annually and after any significant system change.
• Record and review event logs monthly to spot recurring faults or nuisance triggers early.
• Train at least two staff members on basic panel operation, alarm silencing procedures, and how to read common fault codes.

Common mistakes and trade-offs when specifying or upgrading a panel

Choosing the wrong panel or ignoring maintenance creates safety and compliance risks. Common mistakes and trade-offs include:

• Under-specifying capacity: Not allocating enough zones or notification circuits forces costly retrofits later.
• Over-specifying without need: Choosing an advanced networked intelligent panel for a small site increases cost and complexity.
• Ignoring integration needs: Failing to plan connections for HVAC shutdown or elevator recall can require disruptive changes after installation.
• Skipping documentation: Lacking up-to-date as-built drawings or device addresses lengthens troubleshooting time.

Real-world example

Scenario: A three-story medical office building replaced an aging conventional panel with an addressable fire alarm panel. Benefits included pinpointing detector locations to a specific room, faster false-alarm diagnosis, and fewer unnecessary evacuations. The upgrade required updating zone maps, training staff on the new user interface, and adding a supervised connection for elevator recall. Battery capacity was increased to meet new notification loads.

Troubleshooting basics and fault codes

When a panel shows a trouble or supervisory condition, follow a prioritized approach: consult the event log, identify the device or circuit flagged, perform visual inspections, and isolate the fault by correlating recent activities (maintenance, construction, or HVAC servicing). Many panels list fault codes in the manual—keep the vendor manual or a printed fault-code quick reference at the panel for rapid resolution.

For code compliance and best practices, reference national standards such as the NFPA codes. See NFPA 72: National Fire Alarm and Signaling Code for guidance on installation, testing intervals, and documentation.

Installation and wiring considerations

• Separate notification appliance circuits (NACs) by audible/visual requirements and ADA coverage.
• Use supervised wiring with end-of-line resistors or modules as required by the panel design.
• Plan for clear labeling, conduit pathways, and spare circuit capacity for future expansion.

Core cluster questions for further reading and internal links

• How does an addressable fire alarm panel differ from a conventional panel?
• What routine maintenance does a fire alarm control panel require?
• How are zones and circuits configured on a fire alarm control panel?
• What is the typical lifecycle of a building fire alarm control panel?
• How to troubleshoot common fire alarm control panel fault codes?

Final recommendations

Maintain clear documentation, follow a structured checklist like S.A.F.E.R., and schedule qualified inspections. Match panel capabilities to building needs—avoid both under- and over-specifying—and use event logs proactively to spot trends before they become critical faults.

What is a fire alarm control panel and how does it work?

The fire alarm control panel is the centralized system that monitors initiating devices, manages notifications, controls relays, and logs events. It processes signals from detectors and manual stations, applies internal logic, and activates notification appliances and control functions as programmed.

How often should a fire alarm control panel receive maintenance and testing?

Routine visual inspections are recommended monthly; functional testing and battery tests are commonly performed annually. Certain components and tests may require more frequent checks per local code or the manufacturer's instructions. Follow NFPA 72 and local regulations for specific intervals.

What are the main differences between an addressable fire alarm panel and a conventional panel?

Conventional panels monitor zones—activation reports a zone only—while addressable panels identify individual device addresses, enabling precise location reporting, advanced diagnostics, and reduced time to resolve incidents.

What are common causes of false alarms and how can they be reduced?

Common causes include dust, construction activity, poor detector placement near HVAC intakes, and improper sensitivity settings. Reducing false alarms involves relocating detectors, using detector types suited to the environment, implementing pre-signal or verification features when permitted, and regular cleaning and inspection.

How to interpret a trouble or supervisory message on the panel?

Consult the panel's event log and fault-code reference. Identify the affected circuit or device, check wiring and power (including battery and charger), and inspect related building systems (HVAC, sprinkler monitoring). If uncertainty remains, contact a qualified service technician to avoid risking system impairment.
