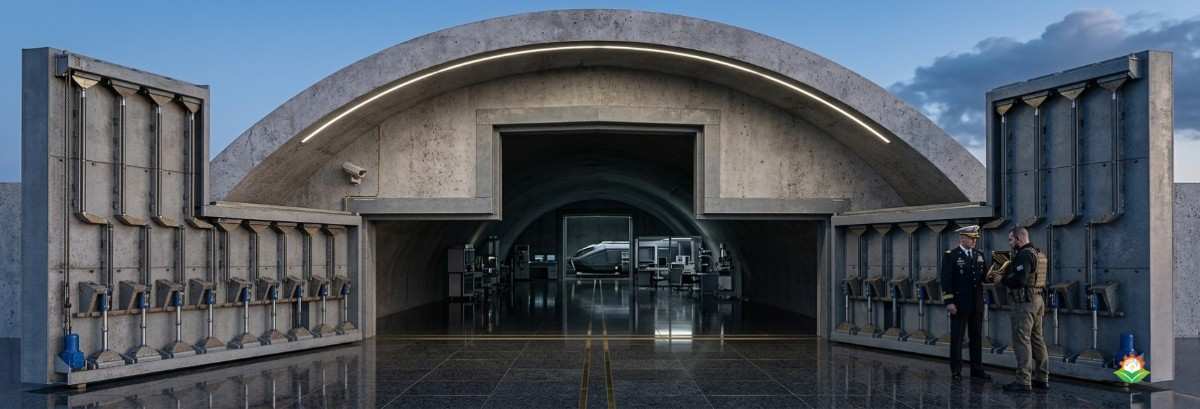

How Much Room Is Needed for Hangar Doors?

At dawn a C-130 taxis into a defence hangar; ground crew must be certain the door will clear the aircraft tail and ground equipment before initiating the automated open sequence. Misjudging the required movement envelope can damage structure, delay ops, or create safety hazards. Knowing how much space a hangar door needs to open is a basic design requirement for any aviation facility.

Determining the space required for a hangar door to open is a design decision that affects aircraft access, safety, and long-term operations. The hangar door footprint influences pavement layout, clearances, structural framing, and automation choices. This article explains how hangar door type, mechanics, and site constraints combine to define the opening envelope and why designers, operators, and hangar door manufacturers in India must plan for precise clearances.

How door type defines space needs

Different hangar door designs demand different movement envelopes. Common options include sliding (track), folding, sectional, and vertical-lift doors. Sliding doors require lateral runoff clearances along the façade equal to the panel width; telescopic sliding reduces lateral needs but increases system complexity. Folding and bi-parting doors hinge outward or upward and need clear approach zones in front of the building. Vertical-lift doors move up and often retract behind a horizontal canopy, requiring clear headroom inside the hangar.

How it works: mechanics and geometry

Space calculations begin with the door geometry and actuator strokes. For a multi-panel sliding door, add the panel stacking width to the doorway width to find lateral space. For folding doors, map the hinge arc and ensure no obstructions fall into the sweep path. Vertical doors need a clear vertical travel height plus accommodation for counterweights, hoists, or overhead tracks. Designers use swept-path analysis and 3D CAD collision checks against aircraft tails, ground support equipment, and personnel zones.

Key engineering principles

Envelope clearance: Add safety buffers to the mechanical sweep—typically 300–600 mm beyond theoretical paths for redundancy.
Structural interface: Foundation and guiding tracks must not intrude into taxi lanes; embedment depth and sill design influence pavement layout.
Wind and inertia: Larger panels exert greater dynamic loads during opening; provide additional clearance to prevent aerodynamic interactions with nearby structures.
Tolerance for thermal movement: Allow for expansion gaps, particularly in long sliding tracks exposed to sunlight.

Operational advantages and safety considerations

Correctly sized opening space enables rapid, predictable operations. It prevents accidental contact between doors and aircraft during gusty conditions or when ground handlers reposition equipment. Safety interlocks, presence sensors, and soft-stop automation reduce collision risk; still, adequate physical clearance is the primary safeguard.

Weather resistance and automation features

Automation profiles (soft-start, dwell, soft-stop) protect seals and reduce shock loads, but they don’t change the required geometric envelope. Sealed door thresholds and overlapping lips improve weather resistance while minimizing required clearance horizontally. For facilities in high-wind regions, consider doors with staged opening sequences to equalise pressure and protect moving parts.

Space optimization and aircraft protection

Space constraints at many civilian and military airfields drive design choices. Telescopic or bi-fold systems can minimise lateral footprint for narrow ramp-front sites, while vertical-lift doors suit locations with limited frontal apron. Any optimization must preserve adequate clear-span and tail swing for the largest aircraft intended for the hangar. Aircraft hangar door clearances should be set to the most demanding type the facility will host, with margins for future fleet changes.

Structural performance and maintenance requirements

Larger clearances often mean bigger door panels and heavier hardware, increasing foundation and structural framing costs. Conversely, tighter footprints demand precise manufacturing tolerances and higher-spec components to avoid operational friction. Maintenance access for tracks, seals, and actuators needs to be planned into the space scheme; otherwise long-term reliability suffers.

Applications

Aircraft hangars: wide clear-spans and generous approach aprons for fixed-wing fleets.

Helicopter hangars: smaller clearances but lower headroom demands; rotor clearance is critical.

MRO facilities: room to stage ground support and systems for simultaneous door movement.

Military airbases and defence facilities: greater emphasis on redundancy, blast considerations, and rapid closure.

Aerospace manufacturing plants and logistics hubs: large clear openings to handle oversized loads.

Cost and investment factors

Space requirements affect cost through door dimensions, structural reinforcements, foundation work, and automation complexity. Larger panels increase material and actuator ratings; complex telescopic mechanisms raise manufacturing precision needs. Budget for extra site works if the door envelope impacts taxiways or requires pavement modification.

Buyer’s guide: selecting a supplier

When assessing hangar door manufacturers, check demonstrated project experience, test data on movement envelopes, and willingness to provide swept-path studies. Evaluate compliance certificates, after-sales support, and installation services. Suppliers that supply engineered layouts and 3D collision checks—such as Sigma Power Tech Hangar Door manufacturer and service provider—help translate operational needs into safe, buildable designs.

Common mistakes to avoid

• Designing to the current fleet only; ignore future aircraft types.

• Omitting swept-path or 3D modelling in tight sites.

• Underestimating buffer zones for wind or thermal effects.

• Selecting a door type for its cost without checking mechanical sweep implications.

• Neglecting maintenance clearances when planning structural elements.

Conclusion

Space for a hangar door to open is a function of door type, mechanical motion, aircraft geometry, and site constraints. Good engineering adds safety buffers, models swept paths, and balances costs against operational flexibility. Involving experienced manufacturers early—those offering detailed movement studies and field-proven installations—ensures the door operates reliably, protects aircraft, and preserves ramp efficiency. Proper planning turns a simple clearance calculation into sustained operational performance for any aviation facility.
