How to Choose the Right Tube Expander: A Practical Selection Guide

Selecting the correct tool starts with clarity on the task: this guide explains how to choose a tube expander for specific applications, materials, and budgets. Whether replacing condenser tubes or rebuilding a shell-and-tube heat exchanger, knowing match points like tube material, diameter, expansion method and required finish reduces rework and leakage risk.

How to Choose a Tube Expander: Key Factors

1. Match the tool to tube material and size

Different expansion methods suit different materials. For soft copper and brass, mechanical rollers or mandrels often work. For harder materials like stainless steel or cupronickel, hydraulic expanders or powered rolling tools provide controlled, repeatable expansion. Confirm tube O.D. and wall thickness; many manufacturers list supported tube sizes and minimum/maximum wall gauges.

2. Understand expansion methods and trade-offs

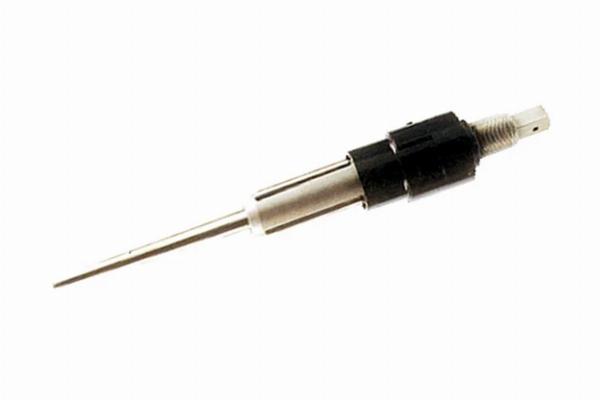

Three common categories are hydraulic tube expanders, mechanical (manual or powered) tube expanders, and rolling/mandrel-style expanders. Hydraulic units offer high force and consistent results but are heavier and costlier. Mechanical units are simple and light but can be less uniform for high-strength alloys. Rolling expanders create a cold-worked, work-hardened joint with good leakage resistance in many applications. Evaluate speed, repeatability, and surface finish when deciding.

3. Job scale and ergonomics

For one-off HVAC repairs, a compact manual or battery-powered expander might be best. For shop or plant work with high throughput, a hydraulic power pack or bench-mounted system reduces cycle time. Consider hose length, tool weight, vibration, and required operator training.

4. Finish, testing, and acceptance criteria

Some specs require a smooth rolled surface for leak-tight joints; others accept a simple flare/expansion. Choose tooling that produces the required ID/O.D finish and that allows non-destructive testing (NDT) such as eddy current or pressure testing afterward.

The EXPAND selection checklist

Use this practical framework when comparing options.

• Evaluate application: HVAC, shell-and-tube, boiler, condenser.
• Xamine tube specs: material, O.D., wall thickness, finish.
• Pick power type: manual, pneumatic, electric, hydraulic.
• Accessories & tooling: mandrels, rollers, seals, adapters.
• NDT & acceptance: can the joint be tested as required?
• Durability & support: warranty, spare parts, service network.

Real-world example

A maintenance team replacing condenser tubes in a commercial rooftop unit has 3/8" copper tubes with moderate oxidation. The job requires portability and low setup time. A battery-assisted roller-style tube expander was selected to speed cycles while preserving tube finish. For a separate mid-size petrochemical heat exchanger with stainless tubes, the plant chose a hydraulic expander and matched mandrels to spec to ensure controlled cold-working and repeatable results.

Practical tips (actionable)

• Verify tube O.D. and wall thickness on-site before buying tooling; a mismatch is the most common selection error.
• Prefer tools with adjustable expansion stops or torque control for repeatability across many tubes.
• Request sample expansion records (or perform test expansions) on scrap tube to confirm fit and finish before large jobs.
• Budget for spare mandrels and seals—these wear faster than the main tool housing.

Trade-offs and common mistakes

Common mistakes include selecting a tool based on price rather than capability, ignoring material hardness, and not planning for testing and rework. Trade-offs often involve speed versus precision: hydraulic systems are fast and powerful but costlier and heavier; manual or small electric units are cheaper and portable but may struggle with thicker or harder tubes. Another trade-off is finish versus force—rolling produces a superior finish but requires correct tooling and setup.

Safety and standards to observe

Using powered tube expanders involves pinch points, pressure, and rotating parts. Follow industry safety guidance for powered hand tools and ensure operators wear gloves, eye protection, and hearing protection when appropriate. For general powered tool safety practices, consult OSHA's guidance on hand and power tools (OSHA).

Core cluster questions

• What size tube expander is required for common HVAC tube diameters?
• When should hydraulic tube expanders be used instead of mechanical options?
• How to maintain a tube expander to extend service life?
• Can rolling tube expanders be used on stainless steel tubes?
• What accessories are essential for heat exchanger tube expansion jobs?

FAQs

How to choose a tube expander?

Match the expander to tube material and size, decide on required finish and throughput, and use the EXPAND checklist to compare candidates. Test on scrap material and confirm NDT and acceptance criteria before full deployment.

Hydraulic vs mechanical tube expander: which is better?

Hydraulic offers higher force and repeatability for hard or thick tubes; mechanical is lighter and cheaper for soft alloys and small repairs. Choose based on material hardness, speed requirements, and budget.

Is a tube expander for heat exchangers different from HVAC tools?

Tools overlap but heat exchanger work often demands higher precision, specific mandrel profiles, and documentation for NDT. Verify that the tool supports required tube alloys and sizes for exchanger service.

How to maintain a tube expander for longevity?

Clean and lubricate moving parts, inspect mandrels and rollers for wear, replace seals regularly, and store the tool dry. Keep a log of cycles and servicing for high-use tools.

What safety gear is required when using a tube expander?

At minimum, use eye protection, gloves rated for the task, and hearing protection if using powered tools. Follow site-specific lockout/tagout and powered tool safety procedures as recommended by safety authorities.
