Cryogenic Check Valve Manufacturers in India

Speciality Valve is a renowned Cryogenic Check Valve Manufacturers in India, with high quality valve designed for efficient and safe control of flow in extremely low temperatures. Our cryogenic check valve are constructed to manage liquefied gas and cryogenic liquid with highest dependability and durability.

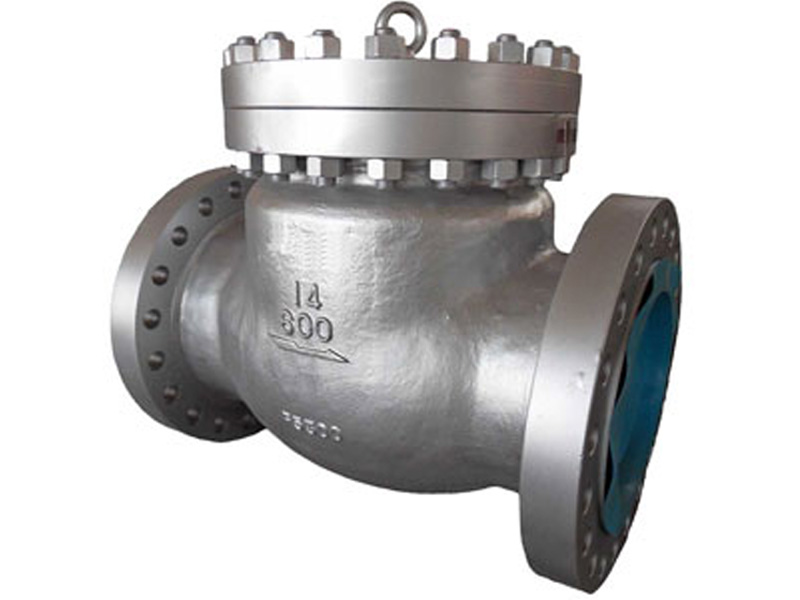

A cryogenic check valve is a check valve designed to operate in cryogenic service involving liquefied gases such as LNG, liquid oxygen, nitrogen, hydrogen, and helium. It provides unidirectional flow while automatically preventing backflow to safeguard pipeline and equipment in cryogenic systems operating at temperatures of up to -196°C.

Cryogenic check Valve Vs Cryogenic Ball Valve

Cryogenic check valves and cryogenic ball valves are both tailored for low-temperature environments, but they each have their own unique roles. A cryogenic check valve is designed to allow flow in one direction while automatically blocking any backflow. This makes it perfect for systems that need to safeguard against reverse flow in pipelines transporting liquefied gases like LNG or oxygen. On the other hand, a cryogenic ball valve provides precise control over flow, whether manually or automatically, thanks to its quarter-turn mechanism and spherical closure. It's the go-to choice when you need complete shutoff or throttling. While check valves work passively based on pressure, ball valves need to be actuated. Both types are constructed with extended bonnets and materials that can handle cryogenic temperatures, but the choice between them really hinges on the specific control and safety requirements of your system.

Parts of Cryogenic Check Valve

• Body: Constructed from stainless steel or cryogenic-grade alloys for resistance to temperatures.
• Disc/Flap: Travels to open or close the valve according to pressure.
• Seat: Ensures a tight seal to avoid reverse flow.
• Spring (in spring-loaded designs): Provides instant disc return to the closed position.
• Extended Bonnet: Insulates the stem and operating mechanism from cryogenic temperatures.

Working Mechanism

The cryogenic check valve is pressure-differential-operated automatically. When upstream pressure is greater than downstream pressure, the disc opens to permit flow. Upon reverse flow or pressure loss, the disc resets automatically to the seat, inhibiting backflow. The longer bonnet keeps the valve in working condition even under very cold operating conditions by minimizing frost and thermal stress on the moving components.

Benefits

• Prevents reverse flow of cryogenic systems
• Long bonnet design for safe operation
• Ideal for handling liquefied gas
• Low maintenance with high durability
• Compact design for easy installation

Types of Cryogenic Check Valves

1. Swing check valve
2. Lift check valve
3. Piston check valve
4. Spring-loaded check valve

Applications of Cryogenic Check Valves

• LNG processing and storage
• Industrial gas Distribution
• Cryogenic tankers and pipelines
• Aerospace and defense
• Oil and Gas
• With its reputation as one of the most dependable Cryogenic Check Valve Manufacturers in India, Speciality Valve offers precision-crafted valves designed for extreme conditions. Our dedication to safety, quality, and customer satisfaction guarantees that you get only the most reliable solutions for your cryogenic flow control applications.

Description of Cryogenic Check Valves

• Available materials: SS304, SS316, CF8M, CF8, F51, F55, F53, WCB, WC6, WCC, LCB, LCC
• Size- ½” – 80”
• Class-150 – 2500; PN10 – PN-450
• Ends- Threaded, socket weld, butt weld, flanged, lug, wafer
