Scaffolding Shuttering Systems: Practical Guide to Safe, Efficient Formwork Support

Scaffolding shuttering systems are the temporary structures that support formwork, loads, and crews during concrete construction. Understanding how these systems function—and how to specify, assemble, and inspect them—reduces risk, saves time on the critical path, and keeps a project compliant with safety rules and standards.

What are scaffolding shuttering systems and why they matter

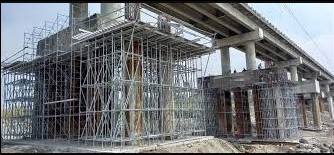

Scaffolding shuttering systems combine scaffolding (access and support frames) with shuttering (formwork panels and supports) to hold fresh concrete until it gains strength. The combined system controls alignment, holds loads, and provides safe working platforms. Key components include shores or props, ledgers, walers, ties, panels, and bracing. Related terms include formwork, falsework, props, back-propping, and temporary works. Standards and guidance from safety regulators and construction codes govern safe use.

Scaffolding shuttering systems: selection and design basics

Selection depends on load, span, concrete pour method, working platforms, and cycle times. Choices range from light-duty proprietary systems for low-rise work to heavy-duty falsework for long spans or multi-level pours. Design should consider bearing pressures, live loads (workers, equipment), hydrostatic pressure during pour, and staged removal (striking). Compliance with national codes (for example, local building regulations and relevant Eurocodes or ACI guidelines where applicable) is essential; for safety and scaffolding practices refer to official guidance such as the OSHA scaffolding page: OSHA scaffolding guidance.

Key selection factors

• Load capacity: choose props and frames rated above calculated live and wet-concrete loads.
• Span and deflection: minimize unsupported spans to reduce deflection and finish defects.
• Access and fall protection: integrate guardrails, toe boards, and clear access points.
• Reusability and cycle time: prefabricated modular systems speed erection and dismantling.
• Ground conditions and footing: adequate pads, timber soleplates, or engineered footings prevent settlement.

FORMWORK SAFE checklist for installation and inspection

Use a repeatable checklist for quality and safety. The named checklist below is a practical field tool that aligns with best practices for temporary works control.

FORMWORK SAFE checklist

1. Foundations: check bearing capacity, level, and soleplates.
2. Orientation: verify panel alignment, camber, and grades before pouring.
3. Reinforcement: ensure rebar clearance and correct ties; confirm embedded fixtures.
4. Materials: inspect props, bracing, panels, and ties for damage and rating labels.
5. Observation: verify access, edge protection, and competent person sign-off.

Practical workflow: from planning to stripping

Follow a staged workflow: design → procure modular components → prepare footprint and footings → assemble supports and panels → place reinforcement and services → pour concrete → cure and monitor → strip in staged sequence. Use back-propping or staged removal for multi-level pours. Document load assumptions and retain as-built records for handover.

Real-world example

On a mid-rise apartment project, a contractor used a modular scaffolding shuttering system with adjustable props and standardized panel sizes. Pre-poured test strips verified form alignment. The FORMWORK SAFE checklist caught an under-supported corner; adding a temporary shore prevented deflection during the full slab pour and avoided a costly remedial finish repair.

Practical tips for safer, faster formwork support

• Label components by capacity and size on site to speed layout and reduce selection errors.
• Preassemble towers on the ground when possible, then lift into place to minimize working-at-height time.
• Use mechanical torque wrenches or calibrated pins for repeatable bracing and continuity—hand-tightening can produce variable stiffness.
• Coordinate pour sequencing with concrete supplier to avoid high hydrostatic loads from extended continuous pours.
• Record a simple logbook: daily inspection, weather issues, and any load changes during placement.

Common mistakes and trade-offs when choosing shuttering scaffolds

Common mistakes

• Under-designing for live and dynamic loads—assume the worst-case during pouring and consolidation.
• Inadequate bracing and tie spacing that allows racking under lateral loads.
• Ignoring ground preparation—soft spots cause settlement and uneven formwork.
• Rushing removal without meeting curing or strength criteria, producing deflection or cracking.

Trade-offs

Lightweight modular systems reduce labor and storage but may limit span and require denser support spacing. Heavy-duty bespoke falsework supports longer spans and higher loads but increases cost and erection time. Choose based on project priorities: schedule, budget, and structural demands. A risk-based approach helps balance safety and efficiency.

Core cluster questions for related content

• How to calculate load capacity for formwork props?
• What are best practices for scaffolding and formwork inspection?
• How does back-propping work in multi-level concrete pours?
• Which temporary works documentation should be retained for handover?
• What are common failure modes of shuttering under hydrostatic pressure?

Regulatory and standards considerations

Follow local building codes, national standards (for example EN, BS, ACI where applicable), and safety agency guidance for scaffolding and temporary works. Employers and contractors should appoint a competent person for inspection and ensure training records are available. The U.S. Occupational Safety and Health Administration provides practical scaffolding rules and fall-protection requirements relevant to many jurisdictions: OSHA scaffolding guidance.

Inspection, documentation, and quality control

Inspections before each pour, during the pour, and post-pour reduce the chance of structural or safety incidents. Maintain a documented checklist (FORMWORK SAFE), record non-conformances, and require competent person sign-off for changes to loadings or sequencing.

Closing checklist before pouring

• Confirm component ratings and placements match design drawings.
• Verify braces, ties, and continuity connections are in place.
• Ensure fall protection and access routes are secure for crews.
• Review strike schedule and temporary supports for staged removal.

FAQ

What are scaffolding shuttering systems and when should they be used?

Scaffolding shuttering systems are combined scaffolding and formwork setups used whenever temporary support and working platforms are needed for concrete casting. Use them for slabs, beams, and elevated concrete elements where temporary loads and access require a coordinated support strategy.

How to inspect formwork support scaffolding before a concrete pour?

Inspect ground bearing, props ratings, panel alignment, bracing, ties, and safety features. Use the FORMWORK SAFE checklist and document sign-off by a competent person. Re-check during and after pouring for any movement.

How to prevent deflection in long-span shuttering accessories for construction?

Reduce unsupported spans, increase prop density, use stronger walers or beams, and apply back-propping. Verify design assumptions for dead and live load and control concrete placement rate to limit hydrostatic loads.

When can scaffolding shuttering systems be stripped after casting concrete?

Stripping should follow the specified curing time and required concrete strength as defined by the structural design or local codes. Staged removal and back-propping help meet load redistribution safely—never remove supports until structural elements can carry the intended loads.

Who is responsible for scaffolding shuttering system safety on site?

The principal contractor or employer holds responsibility for providing a safe system of work, appointing competent people for inspection, and ensuring compliance with regulations and the project temporary works plan.
