What are camlock couplings?

Camlock couplings or cam and groove couplings are quick disconnect couplings which may be used for fast disconnection and connection of hoses and pipes and may be easily and rapidly connected or disconnected. Easy to make and simple, camlock couplings have widespread applications in oil & gas, food processing, water transportation, chemical transfer, and agriculture.

Camlock couplings are clamp-free, tool-free, and process-free and enable the transfer of fluid faster, safer, and better.

How Camlock Couplings Function?

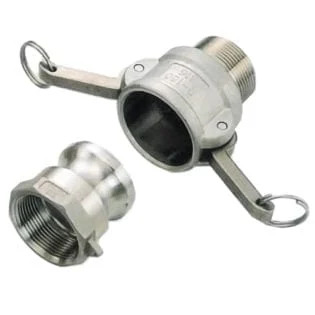

Camlock couplings consist of two principal parts:

Male adapter (groove) – Popped into the other half

Female coupler (cam) – Fitted with arms (cams) which lock over the adapter

To connect:

Insert the male adapter into the female coupler.

Pull down the two cam arms on the coupler.

This will be safely held in place, forming a leak-tight seal.

Closing:

Force the two cam arms to close off the adapter.

The process takes mere seconds—the screwdrivers and wrenches need not be touched.

Camlock Coupling Types

Several types of Camlock couplings (classed from A to F) exist. A few of the most ubiquitous amongst these are named below:

Type A: Male adapter having a female thread attached

Type B: Female coupler with male thread on it

Type C: Female coupler with hose tail

Type D: Female coupler with female thread

Type E: Male adapter with hose tail

Type F: Male adapter with male thread

Others include dust caps (Type DC) and dust plugs (Type DP) for covering the lines when not in use.

Materials Used in Camlock Couplings

Camlock couplings consist of a wide range of materials for different uses:

Aluminum – Corrosion-proof and light in weight; on fuel and water.

Stainless Steel – Hard and chemical-resistant; ideal for industrial applications, particularly where heavy-duty.

Brass – Application in petroleums and coolants.

Polypropylene and Nylon – Chemical-resistant and light in weight; suited for agri- or light-duty fluid transfer.

Practical Advantages of Camlock Coupling Use

Simple and Easy to Manage: Uncoupling and coupling are not tool-dependent processes.

Flexible: Suitable for a wide variety of liquids, gases, and powders.

Tough: Provides heavy-duty material options for abusive applications.

Seal-Lock Leak-Resistant: Secure seal prevents spills and eliminates the possibility of leaks.

Cost Saving: Saves time on labor and reduces downtime for operations.

Applications

Camlock couplings find uses in a variety of industries, including:

Agriculture – Irrigation systems, water pumping, and fertilizer transfer.

Oil & Gas – Oil transfers, fuel supply.

Food & Beverage – Sanitary fluid transfer of liquids and powders.

Chemical Handling – Transfer of acids, solvents, and other chemicals.

Construction – Provision of water for use on-site.

Safety & Maintenance Tip

Be sure to utilize the appropriate kind and type of material for the fluid or material conveyed.

Regularly inspect for wear, corrosion, or leakage.

Do not overtighten cam arms; locking is designed in.

Apply dust plugs and caps when decoupling for dusting and shielding.

Conclusion

Camlock couplings offer a fast, secure, and safe way to connect piping and hoses in most industries. Their simple cam-and-groove shut-off design, along with choosing from available materials, is rendering them the top choice for firms wanting to simplify fluid management.

Whether working together with a chemical plant or installing an irrigation system, camlock couplings can make your work easier—one click at a time.
