Centering Panels for Concrete: A Practical Guide, Checklist & Best Practices

What are centering panels for concrete and why they matter

Centering panels for concrete are assembled formwork units—panels, frames, and associated hardware—designed to hold fresh concrete until it gains strength. Proper panel selection and setup control surface finish, dimensional accuracy, and jobsite safety. Mistakes at this stage cause rework, concrete waste, and structural or cosmetic defects.

Types, components, and common materials

Panel types

• Timber and plywood panels: flexible and economical for irregular shapes.

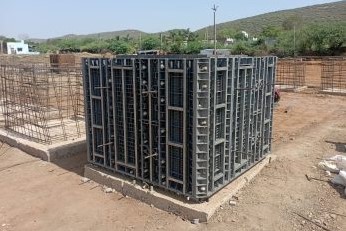

• Prefabricated metal-framed panels (steel or aluminum): provide repeatable tolerances and faster assembly for large projects.
• Plastic or composite facing: used when a high-quality surface finish is required or for repeated use.

Key components

• Facing (plywood, steel plate, plastic)
• Panel frame (steel, aluminum, or timber)
• Ties and anchors (to resist lateral pressure)
• Bracing and walers (to keep panels plumb and aligned)
• Seals and joint inserts (to limit leakage and honeycombing)

Standards and best-practice references

Follow guidance from industry bodies such as the American Concrete Institute (ACI) and ASTM for tolerances, loads, and safety. For example, ACI 347 provides formwork recommendations and tolerances for cast-in-place concrete. See ACI for detailed standards and best practices: American Concrete Institute.

The CENTER checklist: a named checklist for setup and QA

The CENTER checklist is a concise pre-pour and inspection framework to reduce defects and speed up approval:

• Check materials: Verify panel facing, frame integrity, and that all components meet spec.
• Evaluate layout: Confirm panel alignment, joint locations, and pour sequence.
• Nail/Fasten: Secure panels per manufacturer/specified fastener patterns.
• Tighten braces: Install and tension wales, props, and bracing to resist lateral pressure.
• Ensure ties: Place and secure form ties and check embed/anchor locations.
• Review tolerances: Measure plumb, level, and spacing against project tolerance table.

Practical setup steps (procedural guidance)

1. Plan and layout

Confirm panel dimensions and orientation with as-built drawings. Mark reference lines for each panel edge and locate tie and embed points before assembly.

2. Assemble and align panels

Start at a fixed corner or reference grid. Use alignment pins, clamps, and temporary wedges to hold panels plumb. Align joints to minimize offsets—stagger vertical joints when possible to reduce leakage risk.

3. Install ties, walers, and braces

Install ties at specified vertical spacing (typical range 300–600 mm for walls, project dependent) and wales horizontally at intervals to distribute pressure. Bracing should be set to resist the lateral hydrostatic pressure of the fresh concrete for the planned pour rate.

4. Seal joints and inspect

Use appropriate gaskets, rope, or sealant at panel joints to prevent leakage and honeycombing. Conduct a pre-pour inspection using the CENTER checklist and record dimensions (plumb, level, alignment).

Practical tips — 5 actionable points

• Install a trial panel run and pour a small test section to validate alignment and leakage control before full pours.
• Keep spare facing and tie hardware on site to replace damaged panels quickly and maintain schedule.
• Measure and record vertical and horizontal deviations with a laser level; correct anything beyond tolerance immediately.
• Plan pour rate to match formwork capacity—reduce rate if excessive bulging or movement appears.
• Schedule stripping only after concrete has achieved required release strength per structural specifications or ACI guidance.

Common mistakes and trade-offs

Trade-offs

Choosing panel systems often requires balancing initial cost versus reuse and finish quality. Timber panels are cheap upfront but wear faster; steel or aluminum systems cost more initially but deliver consistent tolerances and faster assembly on repeat pours.

Common mistakes

• Underestimating lateral pressure: Resulting in bulged walls and out-of-tolerance geometry.
• Poor joint sealing: Leads to leakage, honeycombing, and concrete waste.
• Improper tie installation: Causes pull-through or alignment loss during pour.
• Skipping pre-pour dimensional checks: Leads to costly corrective work after stripping.

Real-world example

Scenario: A 3.0 m high structural wall, 10 m long, with design requiring a smooth architectural finish. Use steel-framed panels with 12 mm phenolic facing installed vertically in 1.2 m panel widths. Place ties at 600 mm vertical spacing and wales at 0.9 m vertical spacing. Brace externally every 2 m. Pre-pour checks recorded +/- 3 mm plumb deviation—within typical ACI tolerances—allowing a single continuous pour at a controlled rate to limit lateral pressure. After 48 hours, stripping revealed uniform finish and no bulging, validating the panel choice and setup procedure.

Core cluster questions

• How do centering panels affect concrete surface finish and dimensional tolerance?
• What are the load limits and bracing requirements for different panel types?
• How should panel joints and seals be installed to prevent honeycombing?
• When is it better to use prefabricated metal formwork versus traditional timber panels?
• What inspection steps prevent formwork-related defects before pouring?

Inspection and QA

Measurement tolerances

Follow project specifications and ACI guidance for allowable deviations in plumb, level, and dimensional tolerances. Record measurements on a pre-pour checklist and sign off before the pour begins.

Safety checks

Confirm the integrity of supports and bracing, verify access and egress for workers, and ensure tie assemblies do not present fall hazards. Always follow site safety plans and local regulations.

FAQ

What are centering panels for concrete?

Centering panels for concrete are formwork panels and their supporting systems used to shape and support fresh concrete until it hardens. They control finish, dimensions, and alignment of the cast element.

How often should panel components be inspected?

Inspect panel faces, frames, ties, and bracing before every use. Perform a full pre-pour inspection—documented with measurements—before each major pour sequence.

Can timber centering panels be used for high-quality architectural finishes?

Timber panels can produce acceptable finishes with careful preparation (smooth facing, joint treatment, and consistent fastening), but phenolic-faced plywood or metal-faced systems are preferred for repeatable, high-quality architectural surfaces.

How does panel selection affect pour rate and formwork pressure?

Stiffer panel systems (steel/aluminum frames) tolerate faster pour rates and higher lateral pressures without deformation. Flexible timber systems require slower pour rates or additional bracing to avoid bulging.

What routine steps prevent leakage and honeycombing at panel joints?

Use appropriate gaskets or joint seals, stagger joints where possible, clamp and fasten joints tightly, and check for gaps during the pre-pour inspection. Small trial pours or water tests can reveal weak points.
