How to Select and Maintain Vertical Centrifugal Pumps for Water Treatment Plants

Vertical centrifugal pumps in water treatment are compact, vertically oriented machines used across raw water intake, filtration, chemical dosing, and high-head transfer applications. This guide explains types, selection criteria, maintenance priorities, and a proven checklist for reliable operation in municipal and industrial treatment plants.

Vertical Centrifugal Pumps in Water Treatment: Overview and key terms

Vertical centrifugal pumps are a family of rotodynamic pumps where the shaft is vertical and the motor is mounted above the discharge. Common variants include vertical turbine (wet-pit) pumps, vertical inline pumps, and vertical multistage units. Related terms to be familiar with: NPSH (Net Positive Suction Head), pump curve, specific speed, affinity laws, impeller trim, bowl assembly, and wet pit vs dry pit installations.

Types, configurations, and where they are used

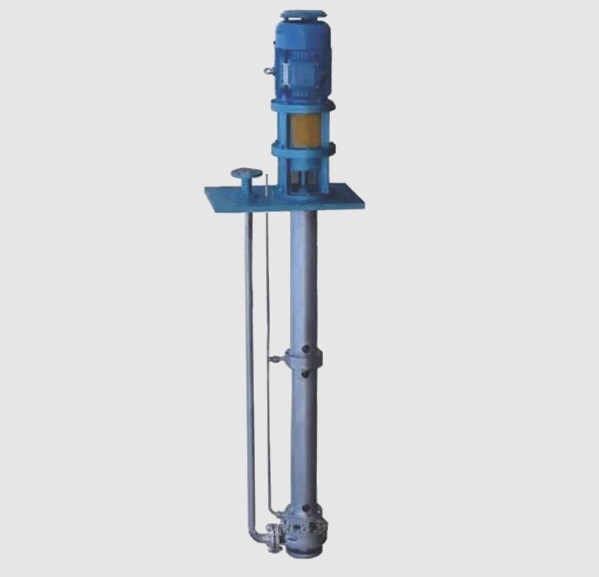

Vertical turbine and wet-pit pumps

Vertical turbine pumps are used for deep-well and raw water intake where the pump bowls sit below the waterline. They are space-efficient and suited to high-head, low-flow duty points.

Vertical inline and multistage pumps

Vertical inline pumps save floor space in treatment buildings and are common for chemical dosing, HVAC on-site systems, and clean water transfers. Multistage vertical pumps provide high head in a compact vertical stack.

How to choose: vertical pump selection criteria and trade-offs

Selection must match hydraulic duty, site constraints, and water quality. Primary criteria include flow (gpm or m3/h), total dynamic head (TDH), allowable NPSH margin, solids content, and motor efficiency. Consider secondary constraints such as suction conditions (submerged vs suction lift), available vertical clearance, and maintenance access.

Common trade-offs and mistakes

• Oversizing for future-proofing can push operation far from the Best Efficiency Point (BEP), increasing energy use and vibration.
• Underspecifying NPSH can cause cavitation and rapid damage to impellers and bearings.
• Ignoring solids handling requirements leads to frequent clogging in raw water applications; choose open or closed impeller designs accordingly.

Practical selection checklist: the 3-2-1 Pump Selection Checklist

Use this named framework when evaluating vertical centrifugal pumps for water treatment:

1. 3 primary hydraulics: Flow, Head, NPSH available—confirm pump curve matches required operating point close to BEP.
2. 2 installation constraints: Vertical clearance and suction condition (wet pit vs suction lift). Confirm maintenance access and shaft coupling arrangement.
3. 1 operational priority: Choose between efficiency (energy cost), solids handling, or redundancy/availability and specify materials (stainless, coated cast iron) accordingly.

Vertical pump maintenance: vertical pump maintenance checklist

Maintenance for vertical centrifugal pumps in water treatment should focus on bearings, seals, alignment, and monitoring performance against baseline pump curves. A practical maintenance program extends life and prevents unplanned outages.

• Baseline testing: Record flow, head, motor amps, and vibration at commissioning.
• Daily/weekly: Check suction conditions, seals for leakage, unusual noise, and motor current consistency.
• Monthly/quarterly: Lubricate bearings per OEM schedule, inspect impeller clearances, verify coupling alignment, and test for cavitation signs.
• Annual: Full inspection of bowl assembly (for vertical turbine), shaft runout, and electrical motor health.

Energy, efficiency, and control strategies

Energy use is a major lifecycle cost. Variable frequency drives (VFDs) provide efficient throttling across varying demand but require attention to minimum speed limits for cooling and NPSH changes. Use pump curves and the affinity laws to model energy consumption across plausible operating scenarios.

Real-world example

Scenario: A 50,000 population water plant needs a raw water lift from a river intake 6 m below floor level with a peak flow of 450 m3/h and a TDH of 25 m. A wet-pit vertical turbine arrangement was selected because of limited footprint and the need for submersible bowl reliability. The design used the 3-2-1 Pump Selection Checklist: matched flow/head to the BEP, confirmed wet-pit installation for suction reliability, and prioritized solids handling with a semi-open impeller and wear rings. Baseline commissioning included pump curve testing, vibration baselining, and setting alarm thresholds for motor current and discharge pressure.

Standards, regulations, and references

Selection and testing practices should reference industry standards and local regulations; for regulatory context on water treatment goals and research, consult the U.S. Environmental Protection Agency water research resources: EPA Water Research.

Practical tips

• Start with a pump curve and define an operating window—document expected daily and peak conditions.
• Specify a minimum allowable NPSH margin (commonly 1–3 m) and monitor suction conditions—use NPSH gauges if possible.
• Plan mechanical access early: vertical pumps are compact but can be difficult to pull for repairs without a hoist or removable discharge head.
• Use condition monitoring (vibration, motor current, thermography) to catch early signs of bearing or seal failure.

Common mistakes to avoid

Typical errors include ignoring pump curve matching, failing to account for solids and debris in raw water, insufficient NPSH margin, and poor specification of motor cooling when using VFDs at low speeds.

Core cluster questions

• How does NPSH affect vertical pump selection?
• What maintenance schedule prevents premature wear in vertical turbine pumps?
• How to read and use a pump curve for a vertical centrifugal pump?
• When is a vertical inline pump better than a horizontal centrifugal pump?
• What are the retrofit options to improve energy efficiency of existing vertical pumps?

FAQ

What are vertical centrifugal pumps in water treatment used for?

Vertical centrifugal pumps are used for intakes, well water lifts, filtration feed, high-head transfers, chemical dosing, and recirculation tasks where a small footprint or submersible wet-pit installation is required. Selection depends on flow, head, solids content, and site access.

How often should a vertical pump be inspected?

Visual and operational checks should be daily to weekly depending on duty. A detailed mechanical inspection is recommended annually, with intermediate checks (bearing lubrication, seal inspection) monthly or quarterly based on runtime and water quality.

What is a good vertical pump maintenance checklist?

A good vertical pump maintenance checklist includes baseline commissioning data, scheduled lubrication, seal and coupling inspection, vibration monitoring, impeller clearance checks, and end-of-wet-season or annual full teardown where feasible.

How to address cavitation in vertical pumps?

Resolve cavitation by increasing NPSH available (raise suction level, reduce suction losses), reducing pump speed, trimming impeller diameter, or selecting a different impeller design. Monitor for pitting on impellers and increased vibration as signs of cavitation.

Can vertical pumps handle solids and debris?

Yes, with appropriate impeller selection (semi-open or open impellers) and wear protection (hard coatings or replaceable wear rings). For heavy debris, consider pre-screening or a vortex/solids-handling pump design.
