5 Practical Tactics for Brass Cable Gland Installation and Accessories

Brass cable gland installation requires attention to selection, sealing, and mechanical strain relief to keep cables safe and systems reliable. This guide explains five practical tactics for brass cable gland installation and accessories, with a named checklist, a short real-world example, and actionable tips to avoid common mistakes.

Procedural

Core cluster questions

• How to choose the correct brass cable gland size for a cable?
• What torque and sealing practices prevent water ingress in glands?
• How does strain relief work with brass cable gland accessories?
• When should an installer use an armoured cable gland vs a standard gland?
• What tests confirm a gland installation meets IP and mechanical requirements?

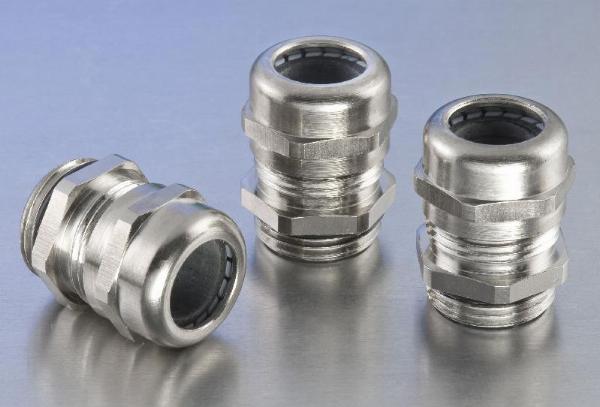

Brass cable gland installation: 5 practical tactics

Tactic 1 — Start with correct selection and sizing

Selecting the right brass cable gland and accessories begins with matching the gland thread and entry size to the enclosure, and the inner sealing range to the cable outer diameter. Check manufacturer datasheets for thread type (PG, metric, NPT), permissible cable OD range, and whether the gland supports armoured cables or integrated earthing. This selection step—often called brass cable gland selection—prevents common failures from wrong fit or incompatible accessories.

Tactic 2 — Prioritize sealing and strain relief

Sealing and strain relief are primary functions of cable glands. Use the right elastomer insert (EPDM, NBR, silicone) for the environment and temperature. For applications requiring ingress protection, confirm the gland's rated protection (IP code) and follow IP testing guidance from standards bodies such as the International Electrotechnical Commission (IEC). Proper clamping of the cable in the gland ensures the cable jacket bears tension and not the conductor, which is essential for reliable cable gland sealing and strain relief.

Tactic 3 — Align and protect conductor and armour

When using armoured or braided cable, fit an armour clamp or earthing ring as part of the accessory set. Ensure the armour termination is tight and electrically continuous where bonding is required. For multi-core cables, maintain correct conductor alignment so that stress is not transferred to terminations inside the enclosure.

Tactic 4 — Follow torque and locking procedures

Tighten locknuts and packing nuts to manufacturer-specified torque values. Over-tightening can damage the sealing insert; under-tightening risks water ingress and movement. Use calibrated torque tools where possible and secure locknuts with a secondary lock or thread locker when vibration is expected. Keep a torque log for critical installations.

Tactic 5 — Test and document the installation

After installation, perform visual inspection, pull tests for strain relief verification, and IP ingress tests for sealed applications if required. Document cable sizes, gland type, torque settings, and test results to support maintenance and regulatory compliance. These records reduce troubleshooting time and demonstrate due diligence.

5‑Point SEAL Checklist (named framework)

The SEAL Checklist provides a compact validation framework for every brass cable gland installation:

• S — Selection: Confirm thread, material, and OD range
• E — Entry: Match enclosure hole and thread seal (gasket, PTFE tape if allowed)
• A — Alignment & Armour: Fit clamps/earthing and align conductors
• L — Locking & Torque: Apply specified torque and secure locknuts
• T — Test & Log (added step): Inspect, test, and document results

Practical tips

• Measure cable OD at the intended gland location (after jacket removal or armor trimming) and select the median insert size rather than the extreme limit.
• Use compatible sealing materials for the environment (silicone for low temperature, EPDM for UV resistance).
• Keep installation tools clean—grit in a packing nut will abrade the insert and reduce sealing life.
• Label installed glands with size and torque value for easier future maintenance.

Common mistakes and trade-offs

Two frequent trade-offs are cost versus durability and ease of installation versus long-term reliability. Cheaper glands may save upfront cost but use lower-grade brass or subpar elastomers. Over-specifying materials increases cost but reduces replacement frequency in harsh environments.

Common mistakes include:

• Using the wrong thread type for the enclosure (metric vs PG vs NPT), causing leaks or cross-threading.
• Failing to terminate armour or bond conductive components where required by code.
• Over-tightening sealing inserts until they deform and lose elasticity.

Real-world example

An industrial panel retrofit required replacing plastic glands with brass glands for higher durability. Using the 5‑Point SEAL Checklist, installers measured the cable OD, selected brass glands with EPDM seals rated for the site temperature, added armour clamps for metal-sheathed cable, recorded torque values (10 N·m for packing nuts), and performed a pull test. Post-install testing showed no displacement under 50 N pull, and the panel maintained its IP66 rating after a spray test.

Standards and testing to reference

Follow local electrical codes and consult IEC and Underwriters Laboratories (UL) guidance for component ratings and IP definitions. For ingress protection, the IEC's IP code guidance is widely accepted for defining dust and water resistance (IEC). Keep records of applicable standards to support compliance inspections.

FAQ

How to perform brass cable gland installation correctly?

Start by confirming the gland thread matches the enclosure entry and the gland insert matches the cable OD. Install any armour clamps or earthing accessories, align conductors, tighten packing nuts to specified torque, secure locknuts, and document torque and test results. Use the 5‑Point SEAL Checklist above to validate each step.

What are the differences between brass and stainless steel cable glands?

Brass offers good conductivity and corrosion resistance in many environments and is cost-effective. Stainless steel provides superior corrosion resistance in marine or highly corrosive settings but costs more and can be harder to thread. Choose based on environment, mechanical load, and budget.

Can a single gland support armoured and non-armoured cables?

Some glands are designed for both, but armour termination requires an armour clamp or earthing ring. Verify the gland accessory kit supports armour and bonding where needed; installing an armour-specific gland is often safer for heavy-duty cables.

What torque values should be used for gland packing nuts?

Torque values vary by manufacturer and gland size. Always follow the manufacturer datasheet. If no data is available, use calibrated torque tools and follow similar-size references, but treat this as a fallback and confirm with testing.

How long do brass cable gland seals last in outdoor installations?

Seal life depends on elastomer type, UV exposure, temperature cycles, and chemical exposure. EPDM and silicone have long outdoor life when selected correctly; expect several years in moderate climates, shorter in extreme UV or chemical environments. Inspect seals regularly and replace if hardening or cracking is observed.
